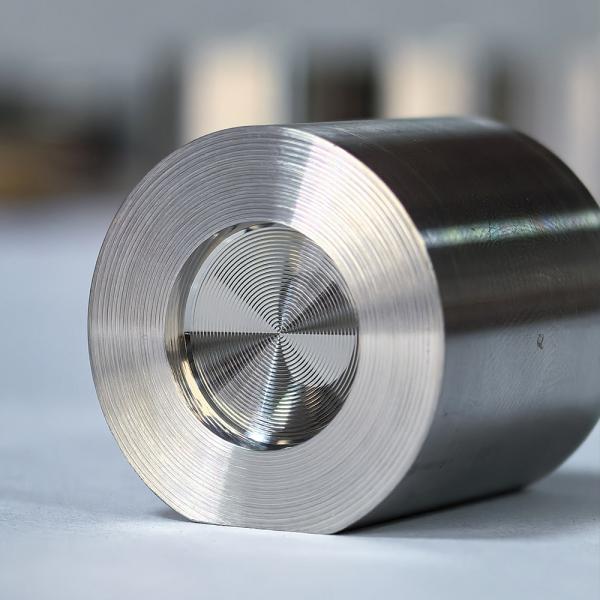

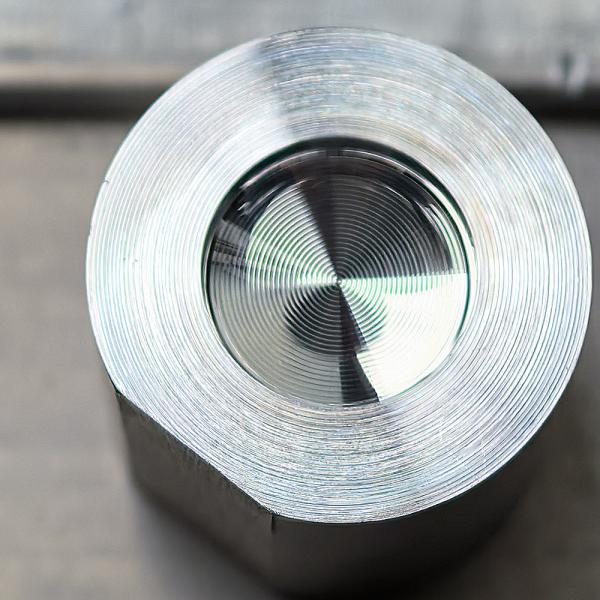

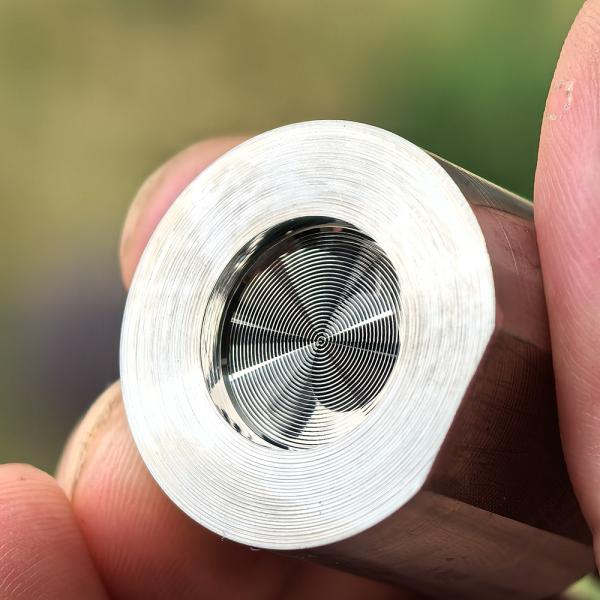

Electroforming Mold CD Pattern Knobs For 3C Electronic Parts
Electroforming Mold CD Pattern Knobs For 3C Electronic Parts
Electroforming Mold CD Pattern Knobs For 3C Electronic Parts
Electroforming Mold CD Pattern Knobs For 3C Electronic Parts
Electroforming Mold CD Pattern Knobs For 3C Electronic Parts
Electroforming Mold CD Pattern Knobs For 3C Electronic Parts
Electroforming Mold CD Pattern Knobs For 3C Electronic Parts
Electroforming Mold CD Pattern Knobs For 3C Electronic Parts
Specifications
Brand Name :
HEYA
Model Number :
HY-301
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,D/A,D/P,Western Union
Supply Ability :
800 pcs/week
Delivery Time :
15-20 work days
Packaging Details :
Coated with anticorrosive oil , packed in carton box
Product Name :
Mold Core Pin
Tolerance :
+/-0.001mm
Application :
Electroforming process
Hardness :
43-47 HRC
Feature :
Durable
Processing Method :
Electroforming Processing
Highlight :
precision core pins, core pin die casting
Material :
Nickel
Heat Resistance :
High
Corrosion Resistance :
Excellent
Mold Life :
Long
Conductivity :
High
Shape :
Customized
Durability :
High
Surface Finish :
Polished
Thickness :
Depends on design
Description
HeYa CD Pattern Button Electroforming Mold Manufacturing

Precision electroforming molds for CD pattern knobs in 3C electronic decorative parts with full customization capabilities.

Product Specifications
Product Name Mold Core Pin
Tolerance +/-0.005mm
Application Die Casting Mould
Hardness 43-47 HRC
Feature Durable
Processing Method Electroforming Processing
Material Automotive, Motorcycle, Instrument, Daily Necessities, Crafts
Core Technology: Nanoscale CD Pattern Replication Expert

Specialized electroforming mold solutions for 3C electronic decorative parts with micron-level precision forming of CD patterns.

Three Core Technical Advantages
  • Texture Precision Pinnacle: 0.05mm ultra-dense patterns (1/2 hair diameter), supporting 1000 lines/inch density
  • Surface Finish: Mirror-grade smoothness (Ra ≤ 0.05μm) reducing fingerprint residue by 70%
  • Depth Consistency: ±0.003mm error control (less than A4 paper thickness over 10cm)
Electroforming Process Breakdown
  • Master Mold Lithography: Laser direct writing with 5μm ultra-fine lines (smaller than bacteria)
  • Pulse Deposition: 1000Hz high-frequency pulse current for uniform nickel-phosphorus alloy adhesion (HV 500 hardness)
  • Freeze Demolding: -40℃ cryogenic separation achieves 99.8% complete texture replication
Electroforming Mold CD Pattern Knobs For 3C Electronic Parts
3C Electronics Full-Scene Adaptation Solutions
Application Field Typical Products Technical Highlights
Mobile Phone Accessories Volume knobs/power buttons 5,000+ wear tests with zero damage, IP67 waterproof textures
Laptops Touchpad buttons/function knobs Anti-static treatment (10⁶-10⁹Ω resistance), no signal interference
Wearables Watch crowns/headphone touch panels 72h acidic test without discoloration, skin-friendly texture
Smart Home Speaker knobs/appliance control panels Food-grade materials available, supports UV printing + laser engraving
Rapid Manufacturing Process
  • Master mold preparation: 5 days (laser engraving + conductive treatment)
  • Electroforming: 72-hour continuous deposition (0.3-1mm customizable thickness)
  • Full mold delivery: 12 working days (50% faster than traditional processes)
Electroforming Mold CD Pattern Knobs For 3C Electronic Parts
Quality Assurance: Data-Driven Standards
Rigorous Testing System
  • Optical inspection: Laser confocal microscope ensures ≤2% texture spacing error
  • Reliability tests:
    • Thermal shock: -40℃~+85℃ cycling 100 times with zero cracking
    • Abrasion resistance: 95% texture clarity after 1,000 cycles (500g load)
Why Choose Heya Electroforming?
  • Complex Texture Expertise: Exclusive dual-helix CD pattern + micro-character combination technology
  • Cost-Efficiency Leadership: 25% material cost savings with 0.5% defect rate (vs industry 1.2%)
  • Rapid Response Team: 7×24 technical support with 1-hour drawing consultation response
