Specifications
Brand Name :
HEYA
Model Number :
HY-617
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,D/A,D/P,Western Union
Supply Ability :
200 pcs/week
Delivery Time :
15-20 work days
Packaging Details :
Coated with anticorrosive oil , packed in carton box
Product Name :
Mold Core Pin
Highlight :
High-Precision Uniform Textures
Tolerance :
+/-0.001mm
Hardness :
43-47 HRC
Feature :
Durable
Processing Method :
Electroforming Processing
Material :
Nickel
Application :
Biomedical Industry
Description

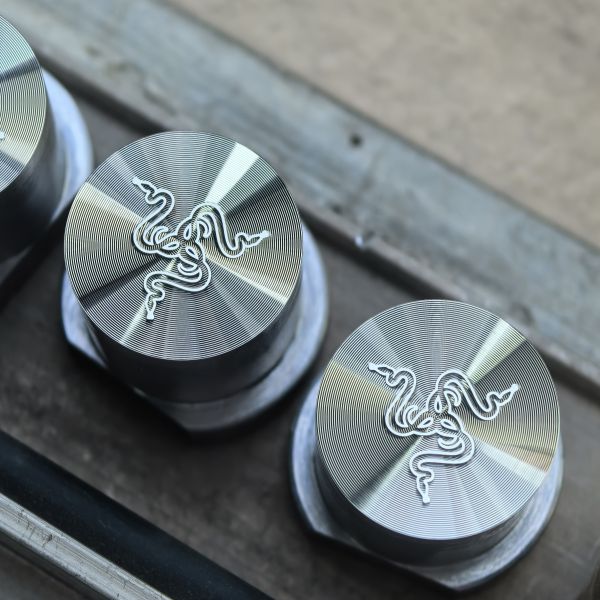

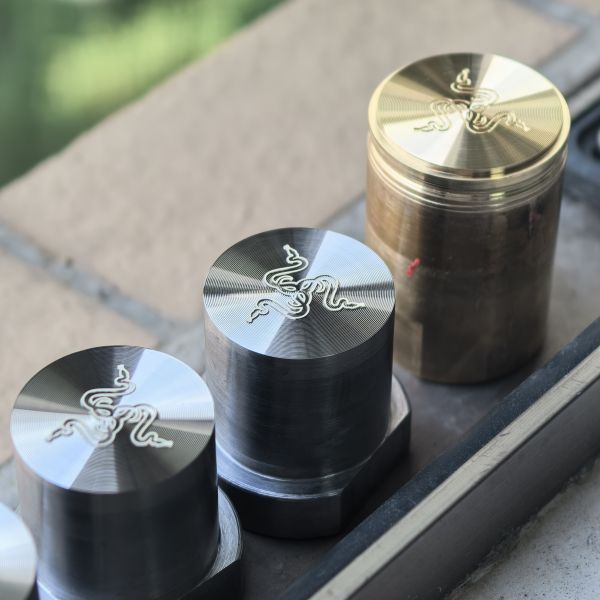

High Precision CD Texture Keypad Molds
Uniform lines for remotes & auto controls with custom sizes and mass production capabilities
Product Overview
Specialized high-precision CD texture keypad molds engineered for remote controls and automotive applications, featuring uniform lines and comprehensive customization options.
Compatibility & Applications
Ideal for dual scenarios: remotes (TV remotes, home appliance remotes, industrial control remotes) and auto controls (center console buttons, steering wheel keypads, door panel controls).
Attribute Value
Core Feature Uniform CD texture lines, high-precision molding, custom size adaptable, wear-resistant mold surface, smooth keypad tactile feel
Precision Tolerance CD texture line width ±0.001mm; line spacing ±0.002mm; keypad cavity dimension ±0.003mm; concentricity ≤0.004mm
Mold Material Nickel-Cobalt Alloy (50-55 HRC); High-Purity Nickel (99.95%); Surface Roughness Ra ≤0.005μm
CD Texture Parameters Line width: 0.02-0.1mm; Line spacing: 0.05-0.2mm; Texture direction: Parallel/Crossed; Surface Finish Ra 0.1-0.2μm
Processing Technology High-Precision Electroforming + Laser CD Texturing + 5-Axis CNC Cavity Finishing
Custom Size Range Keypad diameter: 3mm-20mm; Key height: 1mm-8mm; Support round, square, oval, ergonomic custom shapes
Production Capacity 500,000+ keypads per mold; 20+ sets of molds monthly for mass production
High Precision Cd Texture Keypad Molds For Remotes Auto Controls Uniform Lines Custom Sizes Components
Product Description
This high-precision CD texture keypad mold is exclusively engineered for remote and auto control keypad production, addressing core challenges of uneven CD lines, blurred texture, and size mismatch in traditional molding. Our solution combines electroforming's stress-free deposition with laser CD texturing to deliver perfectly uniform lines that enhance keypad aesthetics and tactile feel.
Crafted from wear-resistant nickel-cobalt alloy (50-55 HRC), the mold withstands high-volume resin injection (180-220℃) and repeated demolding without texture degradation. The ultra-smooth mold surface ensures CD texture is transferred 1:1 to keypads with no defects. We offer full custom sizes and shapes to meet compact design requirements for remotes and automotive interiors.
Core Advantages
Uniform CD Lines: Precision That Enhances Aesthetics & Tactile Feel
Laser CD texturing technology creates parallel/crossed lines with micron-level precision, ensuring 99.9% uniformity across the entire keypad cavity. The matte/shiny CD effect reduces glare and provides a non-slip tactile feel for easy key pressing.
Dual-Scenario Adaptation: Remotes & Auto Controls
  • Remotes: High-purity nickel material ensures CD texture clarity for small keypads (3-10mm) with easy-to-clean, fingerprint-resistant surface finish
  • Auto Controls: Nickel-cobalt alloy resists wear from frequent use and automotive interior conditions (-40℃~80℃)
  • Resin Compatibility: Works seamlessly with ABS, PC, TPU, and PMMA materials
Full Customization: Fit Every Keypad Design
  • Size & Shape: From 3mm round remote keys to 20mm ergonomic auto buttons
  • CD Texture: Adjust line width, spacing, and direction to match your requirements
  • Structure Integration: Embed key travel grooves, contact point recesses, or backlight guide channels
Mass Production Stability: Durability & Consistency
The electroformed mold's stress-free structure avoids deformation under high-temperature molding, ensuring 99.9% batch consistency. With wear-resistant nickel-cobalt alloy, the mold supports 500,000+ production cycles while reducing replacement costs by 40% compared to standard steel molds.
High Precision Cd Texture Keypad Molds For Remotes Auto Controls Uniform Lines Custom Sizes Components
Application Scenarios
Category Target Products Recommended Solution Core Value
Remotes TV Remotes, Air Conditioner Remotes, Industrial Control Remotes, Smart Home Remotes High-Purity Nickel + Parallel CD Lines (0.03mm Width, 0.1mm Spacing), Ra 0.15μm Uniform Texture, Fingerprint-Resistant, Easy to Clean
Auto Controls Center Console Buttons, Steering Wheel Keypads, Door Panel Window/Lock Controls, HVAC Adjustment Keys Nickel-Cobalt Alloy + Crossed CD Lines (0.05mm Width, 0.15mm Spacing), Ra 0.2μm Wear-Resistant, UV-Resistant, Non-Slip Tactile Feel
Other Keypads Gaming Controller Buttons, Medical Device Keypads, Office Equipment Keypads Custom Alloy + Tailored CD Texture, Size 5mm-18mm Precision Molding, Brand-Specific Aesthetics, Durable for Specialized Use
Customization & Service
Customization Support
  • Design Collaboration: Accept 3D CAD files (STEP, IGES, STL) or physical keypad samples with DFM optimization
  • Prototype Service: Deliver 1-2 mold prototypes within 8-12 days with laser scanning verification
  • Effect Tuning: Adjust CD texture density and finish (matte/shiny) to match brand aesthetics
Service Commitment
  • Quality Inspection: 100% full inspection including laser confocal microscopy, CMM, and wear testing
  • Compliance Assurance: ISO 9001, IATF 16949, RoHS certified with full traceability documents
  • After-Sales Support: 24-hour technical response, 1-year mold maintenance guidance, and production line integration support
