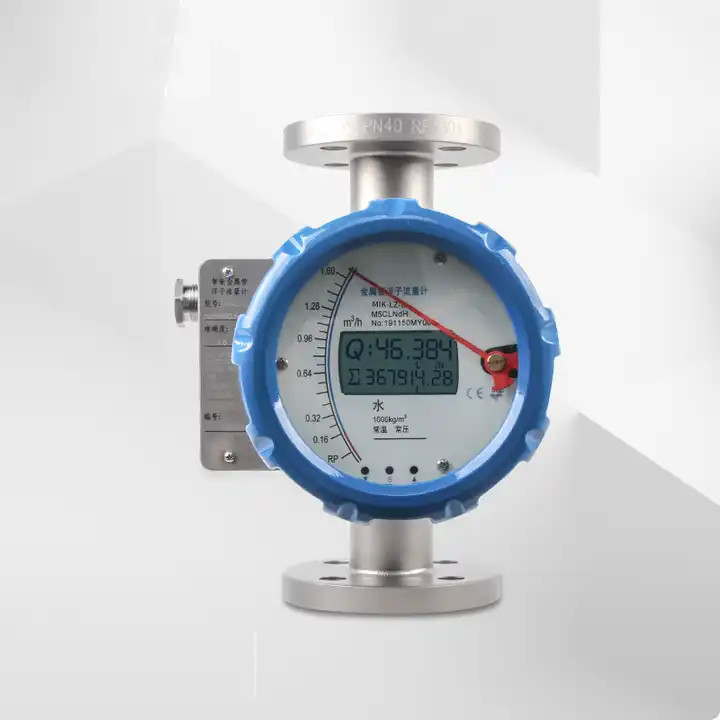

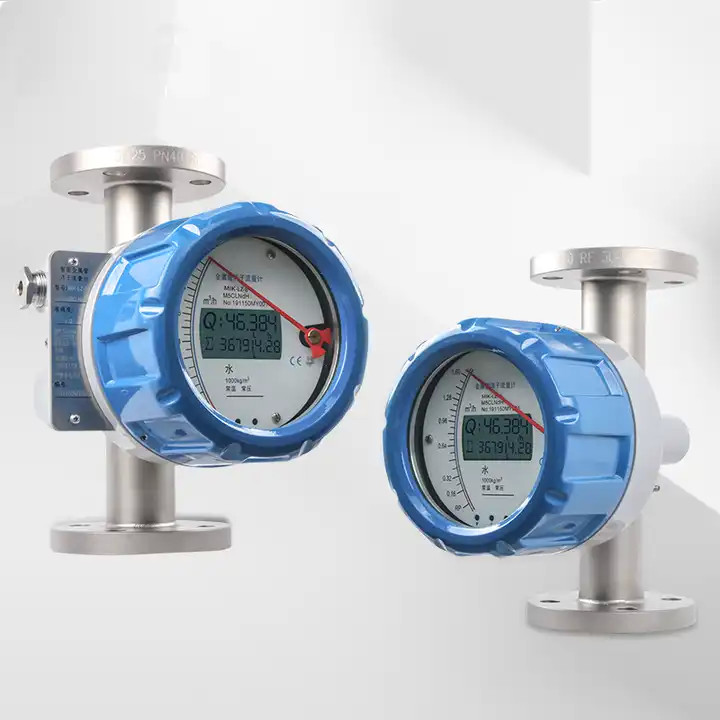

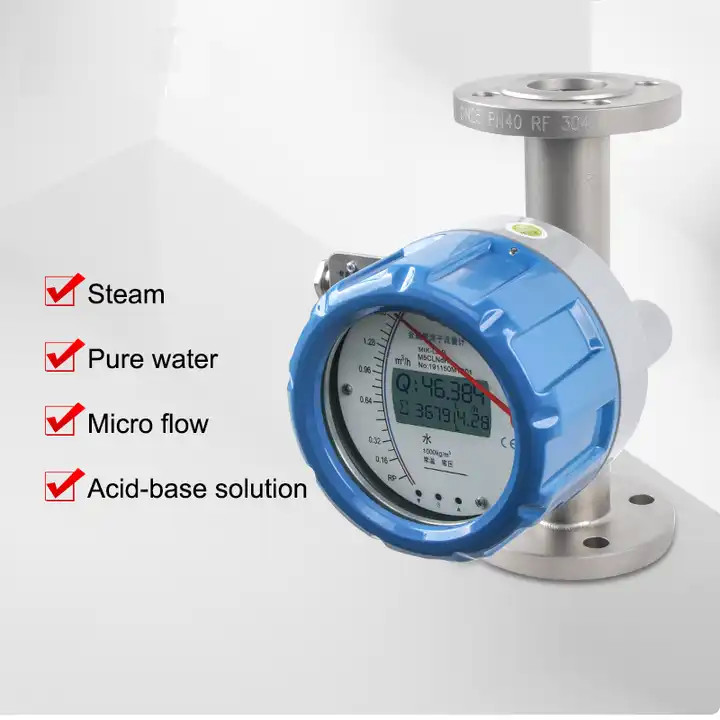

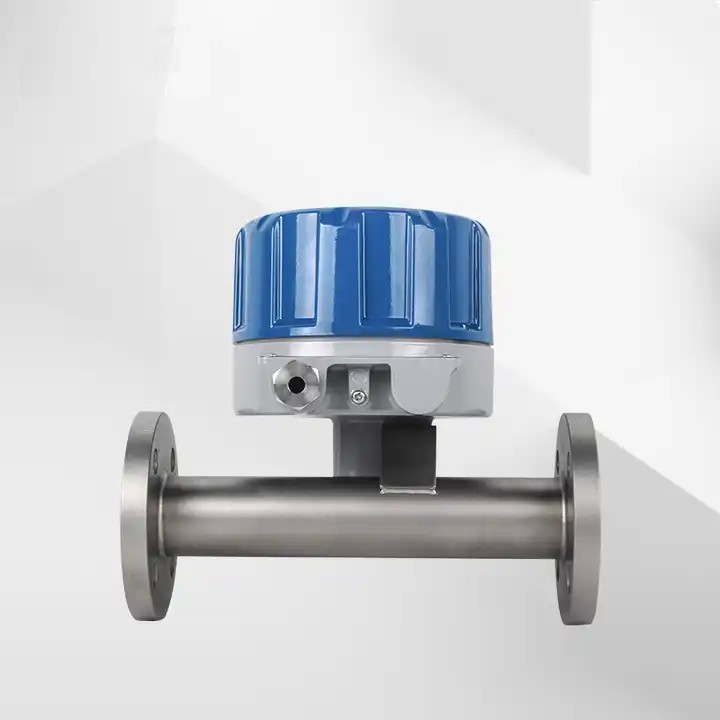

High Accuracy Metal Tube Rotameter Explosion Proof For Water Liquid Medium Gas
High Accuracy Metal Tube Rotameter Explosion Proof For Water Liquid Medium Gas
High Accuracy Metal Tube Rotameter Explosion Proof For Water Liquid Medium Gas
High Accuracy Metal Tube Rotameter Explosion Proof For Water Liquid Medium Gas
High Accuracy Metal Tube Rotameter Explosion Proof For Water Liquid Medium Gas
High Accuracy Metal Tube Rotameter Explosion Proof For Water Liquid Medium Gas
High Accuracy Metal Tube Rotameter Explosion Proof For Water Liquid Medium Gas
High Accuracy Metal Tube Rotameter Explosion Proof For Water Liquid Medium Gas
Specifications
Brand Name :
INSTE
Model Number :
INSTE H250
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
200$-1000$
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per day
Delivery Time :
3 work days
Packaging Details :
wooden package
Explosion Proof Grade :
Exia II CT5Ga, Exd II BT5Gb
Connection Form :
Stabndard:DIN2501 standard flange
Port :
Shenghai/ Shenzhen
Display Type :
Analog
Installation Height :
DN15-DN200:250mm; more tahn DN80:350mm
Output :
4-20mA
Scale Units :
L/min
Precision Class :
2.5
Applicable Medium :
Gas, Liquid
Exportation :
Two-wire System 4~20MA
Measurement Range :
0-100 L/min
Connection :
Flange
Flow Direction :
Bottom to Top
Warranty :
18 months
Temperature Rating :
Max. 100°C
Lifetime :
5-10 years
Material :
Metal
Float Weight :
20g
Protection Grade :
IP 65
Mounting Type :
Vertical
Display Mode :
Liquid Crystal, Pointer
Operating Temperature :
0-80°C
Power Supply :
None
Accuracy :
±2% of Full Scale
Delivery :
Express, Ship, Air
Connection Size :
1/2 inch
Description

Features
1. Suitable for gas and liquid measurement in various industries.
2. Cone-shape measuring tube design,which has wide measuring range and good linearity.
3. Wetted parts material are optional: SS304, SS316L, FEP, Hastelloy C, Titanium.
4. Adopt advanced magnetic coupling system design, improve the accuracy and stability.
5. For the digital LCD display type, the flow range of the instantaneous flow can be corrected onsite based on the different measuring medium.
6. Besides AC/DC power supply, it supports battery power supply function.
7. Through the HART protocol, you can use the handheld operator or host computer software to perform partial or full configuration operations on the flowmeter.
