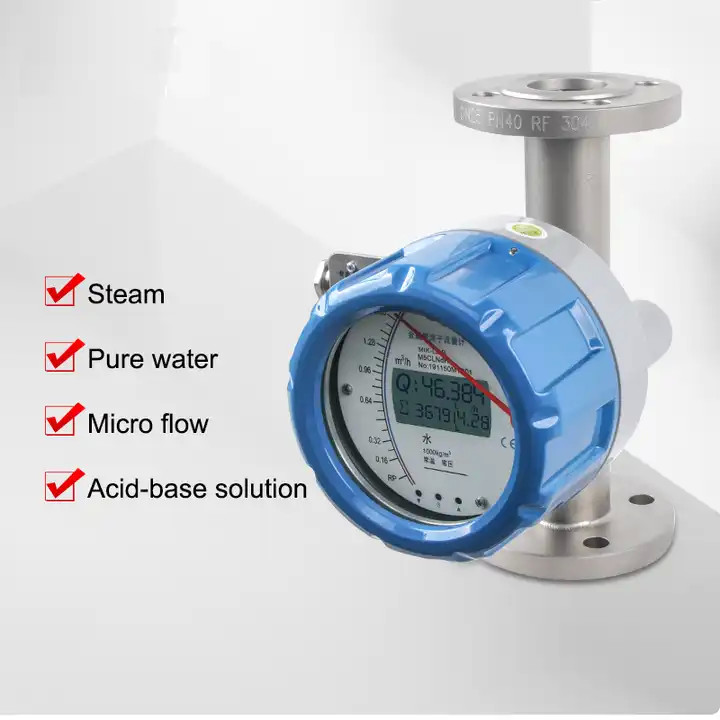

Digital Metal Tube Flow Sensor Metal Tube Float Flowmeter With LCD Display DN15-50
Digital Metal Tube Flow Sensor Metal Tube Float Flowmeter With LCD Display DN15-50
Specifications
Brand Name :
INSTE
Model Number :
INSTE H250
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
200$-1000$
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per day
Delivery Time :
3 work days
Packaging Details :
wooden package
Explosion Proof Grade :
Exia II CT5Ga, Exd II BT5Gb
Connection Form :
Stabndard:DIN2501 standard flange
Port :
Shenghai/ Shenzhen
Display Type :
Analog
Installation Height :
250mm
Output :
4-20mA
Scale Units :
L/h
Precision Class :
1.5
Applicable Medium :
Gas, Liquid
Exportation :
Two-wire System 4~20MA
Measurement Range :
0-100 L/min
Connection :
Thread or Flanged
Flow Direction :
Bottom to Top
Warranty :
18 months
Temperature Rating :
Max. 100°C
Operating Temperature :
Max. 80°C
Material :
Metal
Keyword :
metal tube flowmeter
Measuring Medium :
Liquid Gas
After Service :
18 months
Float Material :
Stainless Steel
Tube Length :
200mm
Measuring Tube Material :
316L, 304, 304 lined with PTFE, etc
Accuracy Class :
Standard:1.5; Special: 1.0
Connection Type :
Flange
Delivery :
Express, Ship, Air
Description

Features
1. Cone-shape measuring tube design,which has wide measuring range and good linearity.
2. Wetted parts material are optional: SS304, SS316L, FEP, Hastelloy C, Titanium.
3. For the digital LCD display type, the flow range of the instantaneous flow can be corrected onsite based on the different measuring medium.
4. Besides AC/DC power supply, it supports battery power supply function.
5. Through the HART protocol, you can use the handheld operator or host computer software to perform partial or full configuration operations on the flowmeter.
