4-20mA Precise DN150 Metal Rotameter Low Maintenance
4-20mA Precise DN150 Metal Rotameter Low Maintenance
Specifications
Brand Name :
INSTE
Model Number :
INSTE H250
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
200$-1000$
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per day
Delivery Time :
3 work days
Packaging Details :
wooden package
Explosion Proof Grade :
Exia II CT5Ga, Exd II BT5Gb
Connection Form :
Stabndard:DIN2501 standard flange
Port :
Shenghai/ Shenzhen
Display Type :
Analog
Installation Height :
350mm
Output :
4-20mA
Scale Units :
L/min
Precision Class :
1.5
Applicable Medium :
Gas, Liquid
Exportation :
Two-wire System 4~20MA
Measurement Range :
0-100 L/min
Connection :
Flange
Flow Direction :
Bottom to Top
Warranty :
18 months
Temperature Rating :
Max. 100°C
Description

Precise Metal Tube Rotameter Widely Use DN15-DN150 Low Maintenance

The Precise DN150 Metal Tube Rotameter is a heavy-duty, variable area flow meter engineered for high-volume industrial applications. Designed for DN150 (6-inch) pipelines, this instrument combines the ruggedness of an all-metal construction with the intelligence of a 4-20mA digital transmitter.

Whether you are measuring water, industrial gases, or corrosive liquids, this rotameter provides a stable, accurate, and low-maintenance flow monitoring solution that excels where glass-tube meters cannot.

Basic Info.

Model NO.
Metal Tube Rotameter
Accuracy
2.5%
Main Application
Water, Diesel Fuel, Fuel Oil, Nature Gas, Corrosive Liquid/Gas
Size
DN15-DN150
Sensor
Flange/Tri-Clamp/Thread
Application
Industrial Production
Type
Metal Tube Rotameter
Measuring Media
Liquid, Gas
Measuring Principle
Buoyancy Principle
Measurement Object
Single-Phase Liquid or Gas
Certification
JIS, DIN, ANS, GB, CE, ISO
Wetted Parts
SS304/SS316L/FEP/Hastelloy C/Tianium
Large Range Ratio
10~20:1
Current Range
3.8~21mA
Communication
RS485,Hart
Protection Grade
IP65/IP67
Transport Package
Export Carton+Pallet
Specification
DN15-DN150
Trademark
WEIZIDOM/OEM
Origin
China
HS Code
9026100000
Production Capacity
2000PCS/Month

Packaging & Delivery

Package Size
12.00cm * 12.00cm * 12.00cm
Package Gross Weight
12.000kg

4-20mA Precise DN150 Metal Rotameter Low Maintenance

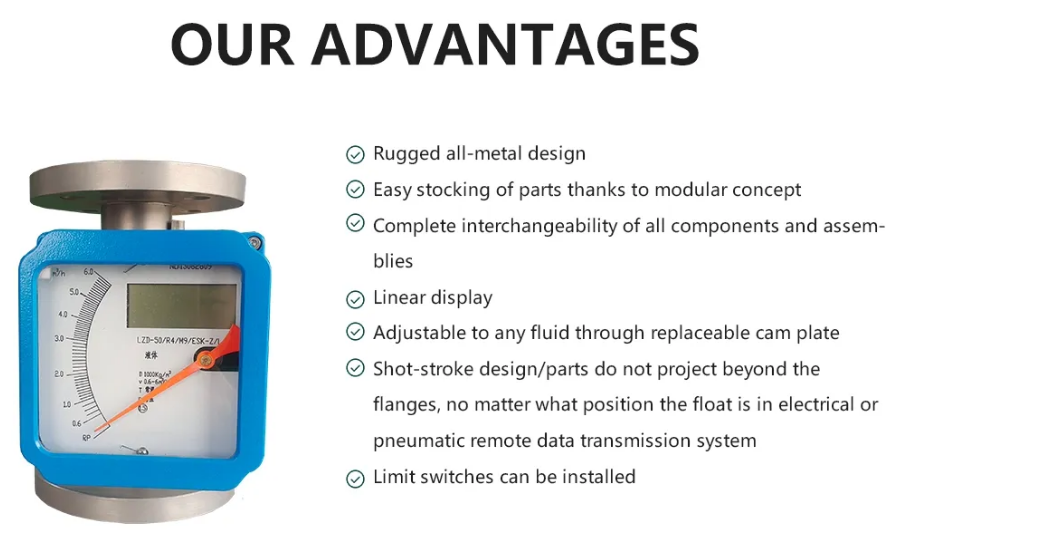

Features


1. Wetted parts material are optional: SS304, SS316L, FEP, Hastelloy C, Titanium.
2. Adopt advanced magnetic coupling system design, improve the accuracy and stability.
3. The upper row displays the instantaneous flow, the lower row displays the total flow.
4. For the digital LCD display type, the flow range of the instantaneous flow can be corrected onsite based on the different measuring medium.
