Specifications
Brand Name :
INSTE
Model Number :
IST-2000S
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
USD 280-300set
Payment Terms :
T/T, Western Union, MoneyGram
Packaging Details :
Paper Box
Pipe Diameter :
DN15 ~ DN6000
Max Flow Velocity :
64m / s
Working Voltage :
3V-4.25V
Protection Rate :
IP65
Weight :
516g
Grade :
Industrial
Liquid Level :
0-10m
Working Temperature :
0～60℃
Serial Port :
RS232
Pipe Diameter :
DN15~1500mm
Water Depth Range :
0.02~3m, 0.02~10m
Process Pressure :
-0.1~2.0MPa
Communicating Protocol :
RS232
Transducer :
Encapsulated design,IP68
Relative Humidity :
35 to 85% RH (non-condensing)
Description

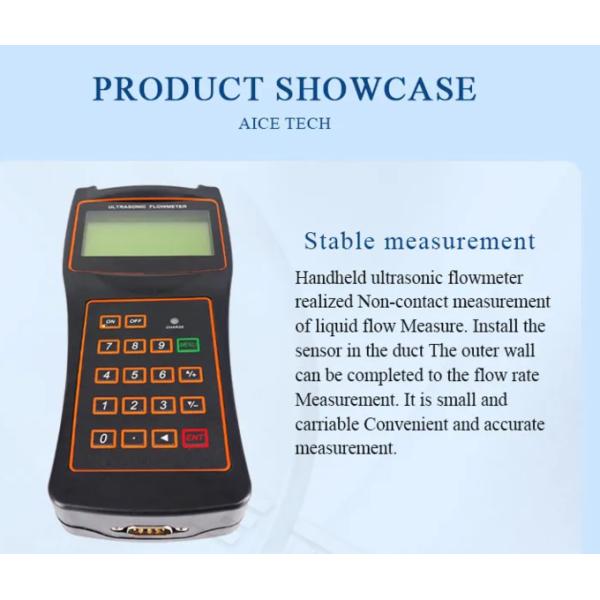

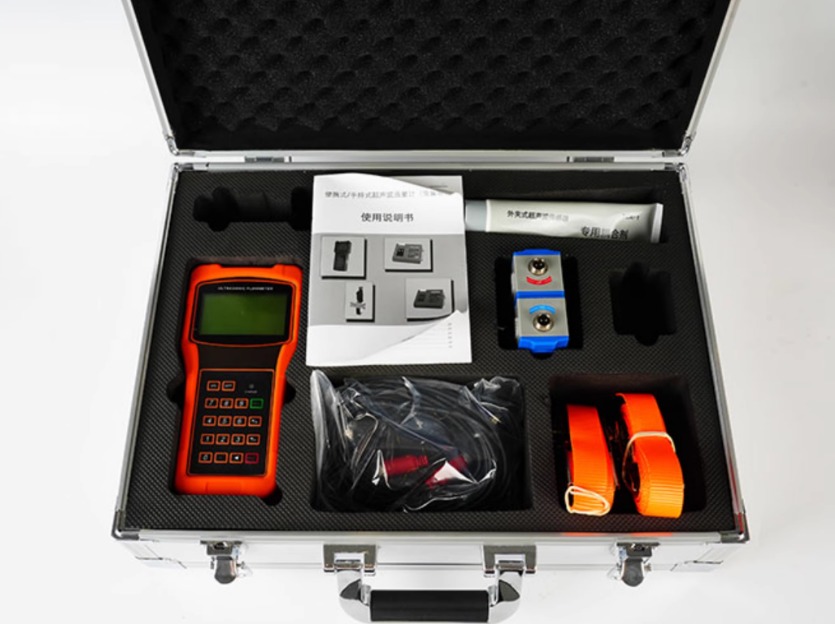

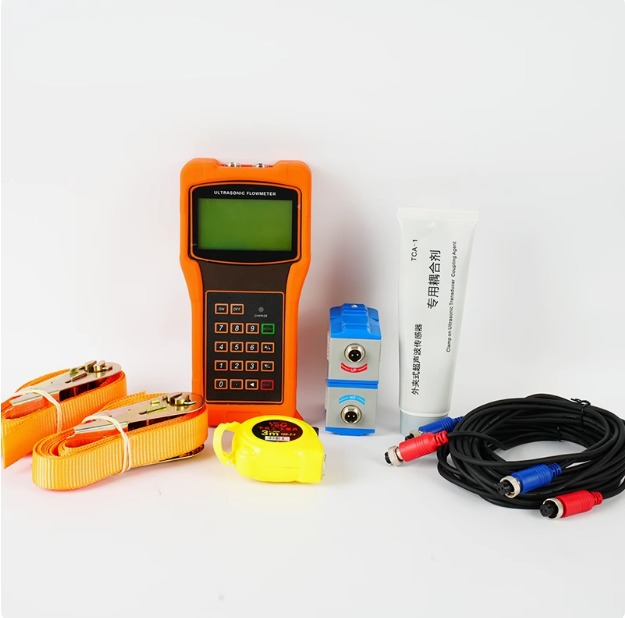

Portable Ultrasonic Flow Meter composes of an instrument and 2 transducers.


Features are built-in rechargeable Ni-H battery that full battery works for 12 hours.


2 transducers are receiving and transmitting flow signals and just clamp on outside of pipeline with designated distance.


Transducers upper limit temperature is 110°C(230°F)

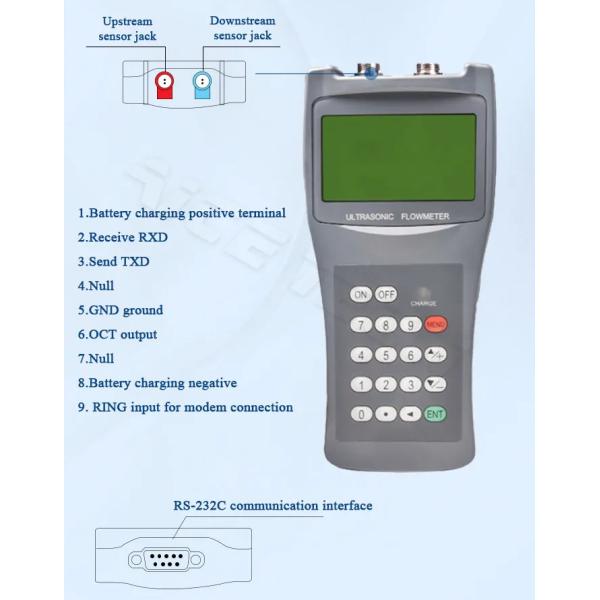

5 meters long transducer cords with RS-232C interface.


Measuring range from 0.5 to 20 inches.


Suitable for kinds of fluids such as water, sewage, seawater, chemical water river water and fuel oil etc.


Clamp-on type, non-contacting measurement and easy install without any system pressure or bad environmental effects.
