Energy Efficient Handheld Flow Meter With Error Correction Technology DN50-DN700
Energy Efficient Handheld Flow Meter With Error Correction Technology DN50-DN700
Energy Efficient Handheld Flow Meter With Error Correction Technology DN50-DN700
Energy Efficient Handheld Flow Meter With Error Correction Technology DN50-DN700
Specifications
Brand Name :
INSTE
Model Number :
IST-2000H
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
USD 200-500/set
Payment Terms :
T/T, Western Union, MoneyGram
Pipe Diameter :
DN50 ~ DN700
Max Flow Velocity :
64m / s
Working Voltage :
24V
Protection Rate :
IP65
Weight :
1kg
Grade :
Industrial
Liquid Level :
0-10m
Working Temperature :
0～60℃
Serial Port :
RS485
Pipe Diameter :
DN15~1500mm
Water Depth Range :
0.02~3m, 0.02~10m
Process Pressure :
-0.1~2.0MPa
Communicating Protocol :
modbus protocol, RS485
Transducer :
Encapsulated design,IP68
Relative Humidity :
35 to 85% RH (non-condensing)
Description

Energy Efficient Handheld Flow Meter With Error Correction Technology DN50-DN700

Product Description

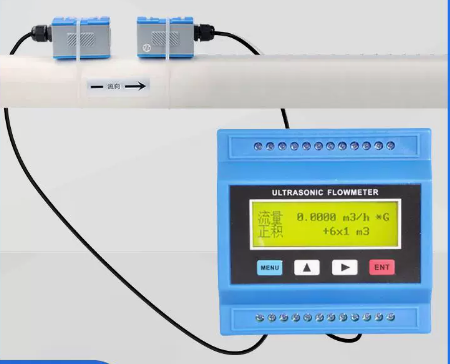

Our external clamp ultrasonic flowmeter is a versatile tool for modern flow management.

Measurement Range: DN50 to DN700 pipelines.

Key Principle: Ultrasonic time difference with downstream and countercurrent wave analysis.

Top Features: High measurement accuracy, wide range ratio, and zero-point stability.

Applications: Specifically designed for heating efficiency reference, water distribution, and measuring media that are difficult to observe.
Achieve accurate, digital-ready flow data without interrupting your liquid flow or compromising pipeline integrity.

Energy Efficient Handheld Flow Meter With Error Correction Technology DN50-DN700Energy Efficient Handheld Flow Meter With Error Correction Technology DN50-DN700Energy Efficient Handheld Flow Meter With Error Correction Technology DN50-DN700

FAQs


Are you a ultrasonic flow meter factory or a trading company?
We are original ultrasonic flow meter manufacturer for flow instrument in nanjing.China. We warmly welcome you come and visit our ultrasonic flow meter factory. Video factory walk through is also available


How do you calibrate the flowmeter?
We use the reference standard flowmeter method to calibrate the 0.5%R flowmeters. We use the Gravimetric for the 0.2% R flowmeters.


Can you provide ultrasonic flow meter installation videos or manuals for us?
No problem, we'll provide tutorials for installation for you. For all our client, we'll make a service group with senior engineer 1 to 1 consult 24/7.


Can I customize my logo and name on the label and the ultrasonic flow meter body?
Sure thing, we support 1 set customization for logo, text, and painting on product label, body, packing case, and so on.
