Specifications
Brand Name :
Delta
Model Number :
TTR-I
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set Turns Ratio Test Set
Price :
USD1.0
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
10 days
Packaging Details :
TTR-I Turns Ratio Test Set packed in veneer case
Functions :
For Single Phase Transformer Testing
Reference standards :
IEC76-1 and IEC60044
Features :
Three Phase Transformer Turns Ratio TTR Meter
Group measurement :
1-12
Size :
400mm*350mm*200 mm
Weight :
7kg
Power supply :
AC220V ± 10%, 50Hz/60Hz
Warranty :
One year
Service :
OEM service is available
Applicable transformer :
Single Phase and Three Phase Transformers
Precision :
0.2%±0.0002mΩ
Power Input :
AC220V±10%
Warrenty :
1 Year
Storage Temperature :
-20-60°C
Ratio Measurement Range :
1-10000
Language :
English
Description

TTR-I Three Phase Transformer Turns Ratio Test Set

Introduction:

  • TTR-I Three Phase Transformer Turns Ratio Test Set is designed according IEC76-1 and IEC60044.
  • TTR-I Three Phase Transformer Turns Ratio Test Set can be applied to test the turns ratio and group vector of single or three phase transformer.
  • The connection group of three phase transformer also can be calculated with the ratio.
  • All parameters can be measured in one test for three phase transformer.

Functions:

  • Turns ratio testing: single phase power transformer, three phase power transformer, CT, PT;
  • Phase angle testing:single phase power transformer, three phase power transformer, CT,PT;
  • Polarity testing: single phase power transformer, three phase power transformer, CT, PT;
  • Vector group testing: three phase power transformer;

Features:

  • 1200°C Split-Hinge Tube Furnaces for horizontal use.
  • Heating element modules for superior radial and linear temperature uniformity and fast heat up and cool down.
  • Long-life, energy-efficient elements require little or no maintenance.
  • Mode conversion switch (Test method of IEC 60754-1&2 could be selected).
  • Alarm Temperature Controller: Temp controller to protect overheating of furnace.
  • Quartz work tube and sample lading assembly.
  • pH and conductivity measuring instruments with digital display and electrodes Stirrer.
  • Mass flow meter control the flow rate of air and digital display.
  • Activated Charcoal (air filtering): Filter for filtering the supplied air (activated charcoal).
  • Silica Gel (air drying): Device for drying the supplied air.
  • 100 ceramic sample boats.

Parameters:

No. Item Name TTR-I Three Phase Transformer Turns Ratio Test Set
1 Ratio measurement range 1-10000
2 Group measurement 1-12
3 Phase measurement error 1 degree
4 Ratio measurement error 1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG
5 Test voltage AC 0~80V continuously, frequency 50Hz
6 Power supply AC220V ± 10%, 50Hz/60Hz
7 Environment temperature 0-50°C
8 Humidity ≤85%RH
9 Size 400mm*350mm*200 mm
10 Weight 7kg
11 Length of test cables 8 meters

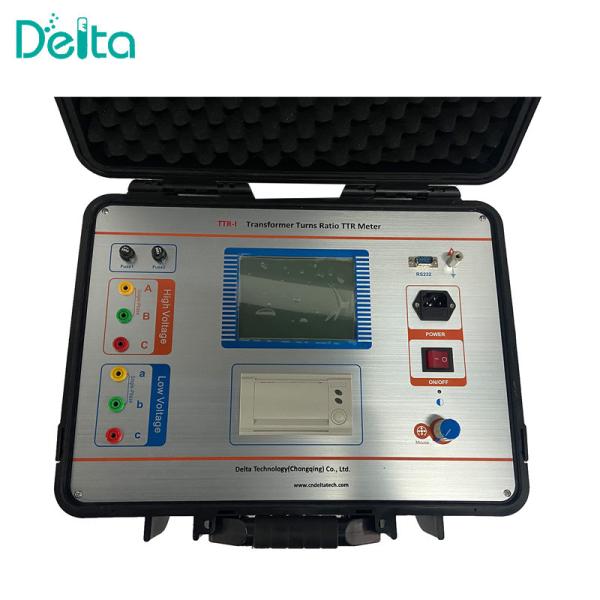

TTR-I Three Phase Transformer Turns Ratio Test Set Real Picture:

TTR-I China Low Price Three Phase Transformer Turns Ratio Test Set

TTR-I China Low Price Three Phase Transformer Turns Ratio Test Set
