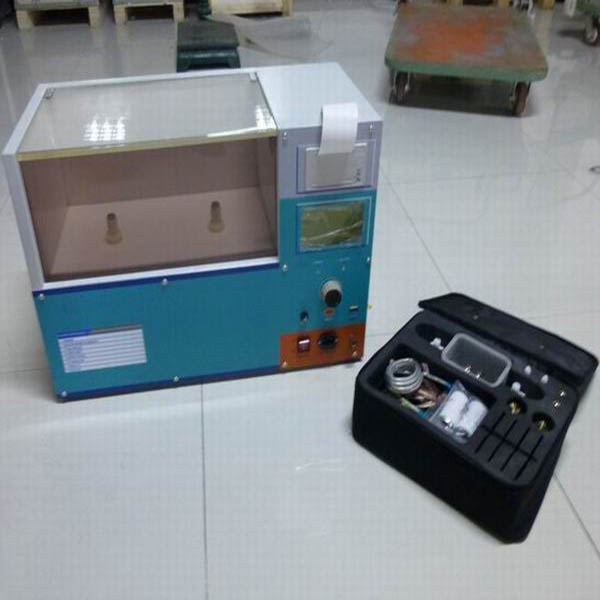

Bdv-II Best Price 100kv Transformer Oil Breakdown Voltage Tester

Specifications

Brand Name :

Delta

Model Number :

BDV-II

Certification :

ISO9001

Place of Origin :

China

MOQ :

1 set Breakdown Voltage Tester

Price :

USD1.0

Payment Terms :

T/T, Western Union

Supply Ability :

1000 sets per month

Delivery Time :

10 days

Packaging Details :

Bdv-II Transformer Oil Breakdown Voltage Testerpacked in veneer case

Item Name :

Bdv-II Best Price 100kv Transformer Oil Breakdown Voltage Tester

Functions :

Measure Breakdown Voltage of Transformer Oil

Test voltage :

Bdv-II 100kv Dielectric Insulating Oil Test Kit Breakdown Voltage Bdv Transformer Oil Tester 0-100kV

Rate of voltage rise :

0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

Test standards :

ASTM D1816, ASTM D877, IEC60156, IS6792, BS5874

Size :

620 mm*430mm*330mm

Weight :

41KG

Power supply :

AC220V ± 10%, 50Hz/60Hz

Warranty :

One year

Service :

OEM service is available

Description

Bdv-II Best Price 100kv Transformer Oil Breakdown Voltage Tester

Introduction:

Bdv-II Transformer Oil Breakdown Voltage Tester is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method ;
Bdv-II Transformer Oil Breakdown Voltage Tester has large LCD display, micro-printer and can store 100 groups data;
Bdv-II Transformer Oil Breakdown Voltage Tester is multi-functional, stable, and easy for operation.

Functions:

Breakdown test of user-defined
Proof test
IEC60156/IS6792/BS5874 test
ASTM D1816 standard test
ASTM D877 standard test
5 minutes standard test
Manual test
Calibration interface for customers
Uploading data to PC and making word report automatically.
Result print

Parameters:

NO	Item Name	Bdv-II Best Price 100kv Transformer Oil Breakdown Voltage Tester
1	Output voltage	AC 0V~100KV
2	Rate of voltage rise	0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3	Max test times setting for user-defined mode	9
4	Stir time setting for user-defined mode	0~999s
5	Waiting time setting for user-defined mode	0~999s
6	Test error	3%RDG+0.3%FS
7	Display	256´128 LCD
8	Maximum storage capacity	100 groups of test data
9	Power supply	AC220V±10%, 50Hz/60Hz
10	Working environment	0-50℃, ≤80%RH
11	Size	620 mm430mm330mm
12	Weight	41kg
