Specifications
Brand Name :
Aier
Model Number :
WN
Place of Origin :
Hebei, China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
100 SETS PER MONTH
Delivery Time :
30-45 days
Packaging Details :
iron frame, wooden case
Material :
A05,A49, High chrome cast iron
Structure :
single-stage
Theory :
centrifugal
Application :
river sand suction, gravel dredging
OEM :
Available
Description

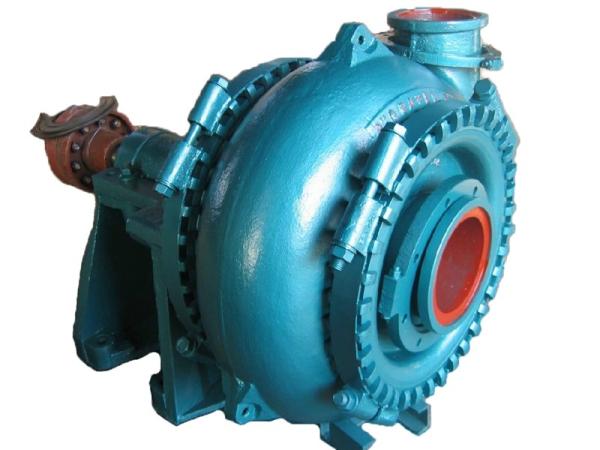

Wear resistant gravel sludge sand dredging Pump of wear resistant material high chrome cast iron

Product Introduction

Application:

Sand dredging pump is widely used in the sand excavation, dredging, mining, coal wery, power plant, metallurgy, petrochemical and other industrial departments.

Sand dredging pump is horizontal single-casing slurry sand pump with wide passage to transfer sand or slurry with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys to ensure long service life. Sand dredging pump has far better performance than cast iron pumps in dredging, sand mining, barge loading and mineral processing, etc. Featured with all the advantages of Sand dredging pumps have achieved extra high head for special working conditions.

Feature:

Capacity: up to 4320 m³/h

Outlet: 4-16 inch
Head: up to 80 m
Type: Horizontal, Single Casing
Wet Parts Materials: High chrome abrasion resistance alloys
Replacement: Interchangeable with other pumps dimensionally

1.4 Structure:

Material

The wet parts material for standard Sand dredging pump is high-chrome alloy. This kind of material is wear resistant and has excellent performance under erosive conditions.

Shaft Seal

There are three standard shaft seal methods: Packing seal, Expeller seal, Mechanical seal.

Bearing Assembly

Convenient to adjust the space between impeller and front liner and can be removed completely.
