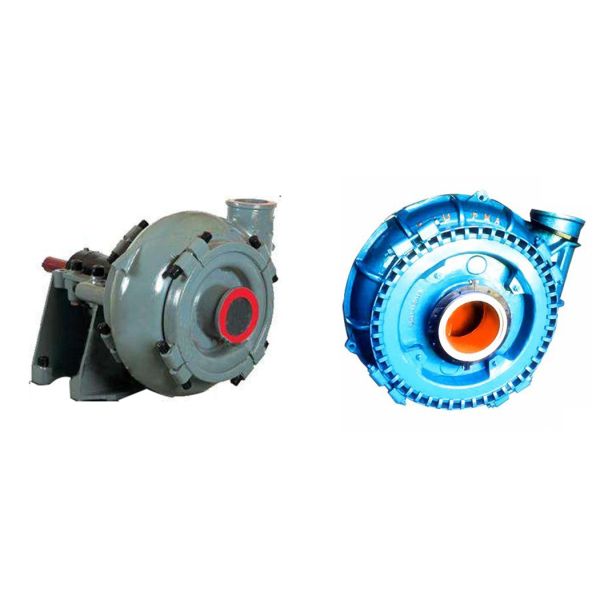

Single Casing Sand Dredging Pump / Dredge Pump Parts OEM / ODM Available
Single Casing Sand Dredging Pump / Dredge Pump Parts OEM / ODM Available
Single Casing Sand Dredging Pump / Dredge Pump Parts OEM / ODM Available
Single Casing Sand Dredging Pump / Dredge Pump Parts OEM / ODM Available
Single Casing Sand Dredging Pump / Dredge Pump Parts OEM / ODM Available
Single Casing Sand Dredging Pump / Dredge Pump Parts OEM / ODM Available
Single Casing Sand Dredging Pump / Dredge Pump Parts OEM / ODM Available
Single Casing Sand Dredging Pump / Dredge Pump Parts OEM / ODM Available
Specifications
Brand Name :
Aier
Model Number :
WN
Place of Origin :
Hebei, China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
100 SETS PER MONTH
Delivery Time :
30-45 days
Packaging Details :
iron frame, wooden case
Material :
A05,A49,Cr26,Cr27
Structure :
Horizontal
Theory :
centrifugal
Power :
Motor or diesel engine
Description

Single Casing Wear Resistant Sand Dredge Pump of wear resistant material high chrome cast iron A05 A49

Sand Dredging pump

1. Grade: A05, A07, A09, A12, A33, A49, A61, R08, ,

2. Size: 6/4-20/18

3. Standard: GB ANSI

4. Certification: ISO9001, SGS, CE, ROHS

Product Name Sand Dredging pump
Material Cr27, Cr26
Color Blue
Standard GB
Grade A05, A07, A09, A12, A33, A49, A61, R08, , S31, SS304, SS316
Service Free trial
Thread coarse, fine
Used Mining industry

Material:

Parts Name Material Specification
Liners,Impellers Hard Metal

A05:23~30% A07:14~18% A12:30%

A49:27~29% A33:33~37% Chrome White Iron
Expeller&Expeller Ring Metal A05 23~30% High Chrome Iron G01: Grey Iron
Stuffing Box Metal A05 23~30% High Chrome Iron G01: Grey Iron

Frame Plate,Cover Plate,Base

Bearing housing

 Metal G01 Grey Iron D21 Ductile Iron

Shaft Sleeve,Lantern

Rings,Restrictor ,Neck

Ring,Gland Bolts

 Stainless Steel 3Cr13,304SS,316SS
Joint Ring&Seals Rubber

R26 R08 R38 R33 Natural Rubber; S01 EPDM Rubber; S21;Butyl;S31;Hypalon;

S44; Neoprene

Application:
Sand Dredging

Cyclone

Slag Cranulation

Suction Hopper

Mill Discharge

Sand Reclamation

Mine

Metal smelting blast slag delivery

Construction Design Single Casing Sand Dredging Pump / Dredge Pump Parts OEM / ODM Available

  1. Shaft 2. Mount Base 3​Impeller Release Collar 4. Shaft Spacer 5. Seal Assembly 6. Adaptor Plate 7. Back Liner 8. Bowl 9. Clamp Ring 10. Door Clamp Plate 11. Door 12. Impeller 13. Flange

Single Casing Sand Dredging Pump / Dredge Pump Parts OEM / ODM Available
