Heavy Duty Electric Hydraulic Roll Groover for Steel Pipes 1 to 12
Heavy Duty Electric Hydraulic Roll Groover for Steel Pipes 1 to 12
Heavy Duty Electric Hydraulic Roll Groover for Steel Pipes 1 to 12
Heavy Duty Electric Hydraulic Roll Groover for Steel Pipes 1 to 12
Specifications
Brand Name :
Hongli
Model Number :
YG12D
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
2 sets after sample order
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000 sets per month
Delivery Time :
7-30 days as per your order
Packaging Details :
one set per plywood case , packing size : 82*45*81 cm , packing weight : 160 kg
Product Name :
YG12D Hydraulic Roll Groover
Motor :
1100W induction type
Speed :
24 RPM
Roll Sets :
4 rollers and 4 shafts as shown in above picture
Description

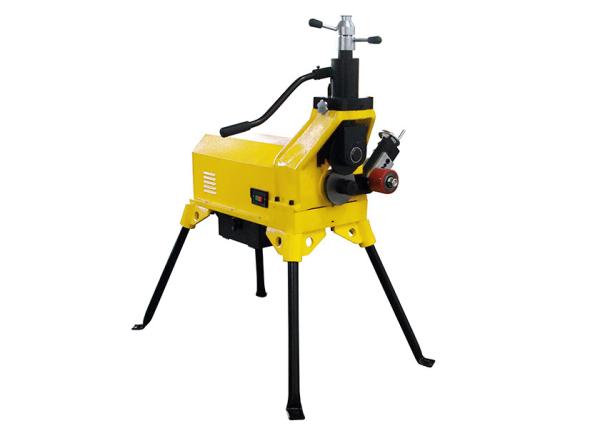

Hongli YG12D Heavy Duty Electric Hydraulic Roll Groover for Steel Pipes 1" to 12"

Product Description

1. The Model YG12D hydraulic roll groover, powered by 1100 W induction motor, is capable of grooving up to 12”Sch 10 and 6” Sch 40 standard wall pipes.

2. “All in one”design of drive shaft for convenient replacement changing.

3. The YG12D comes with standard support legs, the unit can be set up quickly.

4. The induction motor ensures steady and quiet working.

Specifications

Motor: 1100 W induction, 220 V /110 V, 50/60 Hz

Switch: ON/OFF heavy duty switch.

Spindle Speed: 24 RPM

Capacity: 1”-12” Sch. 10 steel, stainless steel.

1”-6” Sch. 10/40 steel, stainless steel.

Weight:140 kg

Standard Equipment of the Roll Grooving Machine

Heavy Duty Electric Hydraulic Roll Groover for Steel Pipes 1

Ordering Information

Catalog No Model No. Description
YG12D Hydraulic Roll Groover, 220 V/50 Hz
YG12D Hydraulic Roll Groover, 110 V/60 Hz

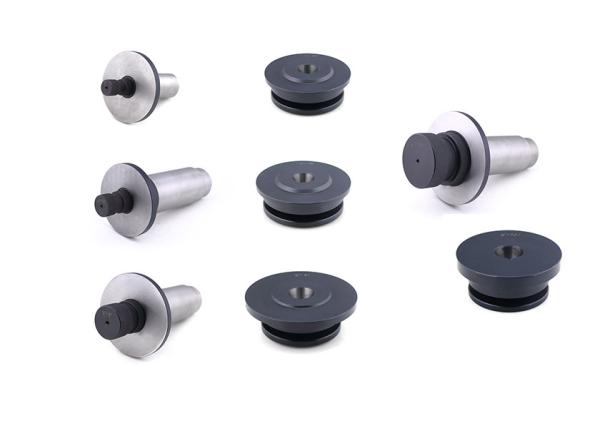

Accessories
-- Roll Set for 1”
-- Roll Set for 2”-6”
-- Roll Set for 8”-12”
4021110 1106 Pipe support stand 14

HS:8462490000
