Specifications
Brand Name :
Hongli
Model Number :
YG12A
Certification :
CE
Place of Origin :
Zhejiang China
MOQ :
10 sets after order sample
Price :
USD990 per set
Payment Terms :
T/T, L/C
Supply Ability :
3000 sets per month
Delivery Time :
7- 30 days as per your order
Packaging Details :
One set per plywood case, packing size: 100*52*47 cm, packing weight: 121 kg
Application :
For pipe grooving and pipe connection
Pipe capacity :
For 2"-12" steel and stainless steel pipes
Motor type :
1500W universal type
Roll sets :
2"-6" & 8"-12"
Description

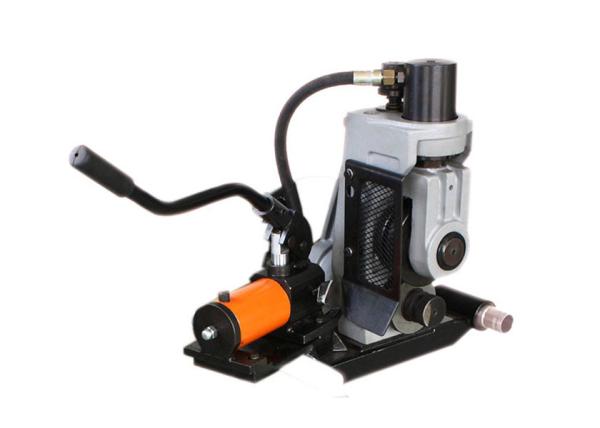

Hongli YG12A Electric Hydraulic Pipe Roll Grooving Machine for Pipes up to 12 Inch

Product Description

1. The Model YG12A Hydraulic Roll Groover features a powerful 15-ton hydraulic ram in a compact, easy totransport unit.

2. With one man set-up operation, the YG12A is the ideal groover for job site requirements.

3. The YG12A mounts quickly to SQ50D power drive.

4. Designed to provide maximum efficiency, the YG12A is capable of grooving up to 12” Schedule 10 and 8” Schedule 40 standard wall pipes.

5. Roll set changeout is accomplished in seconds.

Specifications

  • Capacity: 2”-12” Sch. 10 steel, stainless steel.
  • 2”-8” Sch. 40 steel, stainless steel.
  • Net weight of groover part: 53 kg

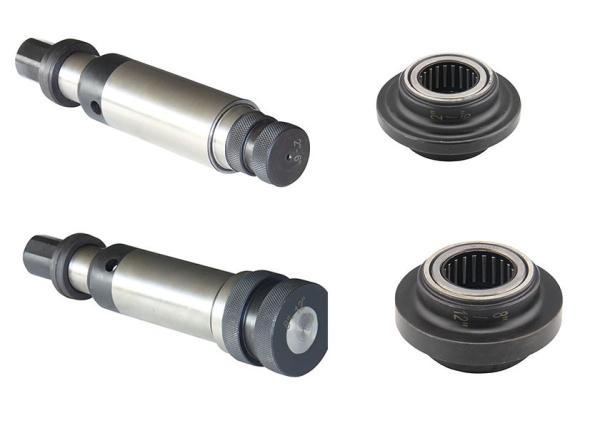

  • One 2”-6” Schedule 10/40 Roll Set for steel.
  • One 8”-12” Schedule 10 (8” Schedule 40) Roll Set for steel.

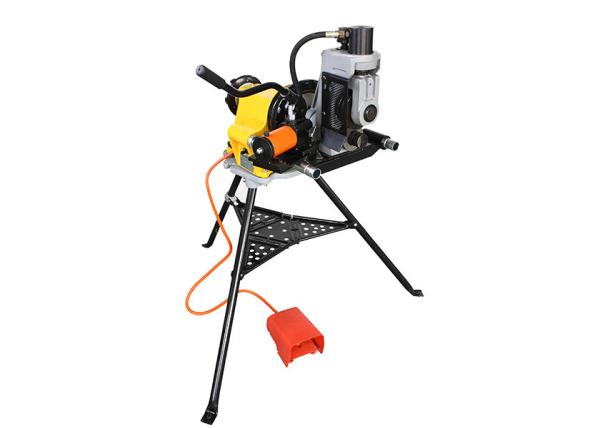

  • one set of SQ50D power drive

Ordering Information

Catalog No. Model No. Description
67001 YG12A groover part Roll groover only, with standard 2”-12” roll set
67030 YG12A complete set Roll groover with SQ50D power drive 110V/60Hz
67031 YG12A complete set Roll groover with SQ50D power drive 220V/50Hz

Accessories

Catalog No. Model No. Description
-- Roll Set for 2”-6”
-- Roll Set for 8”-12”
1107 Pipe support stand (optional)

Standard Spares for Roll Grooving Machine
