Specifications
Brand Name :
Rexroth
Model Number :
PVV2-1X/060RJ15DMB PVV2-1X/068RJ15UVB PVV4-1X/113RJ15DMC
Certifiion :
ISO
Place of Origin :
Italy
MOQ :
1
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Displacement :
60 cc/rev
Max Pressure :
210 bar
Max Flow Rate :
60 L/min
Max Speed :
1800 rpm
Noise Level :
<70 dB(A)
Description

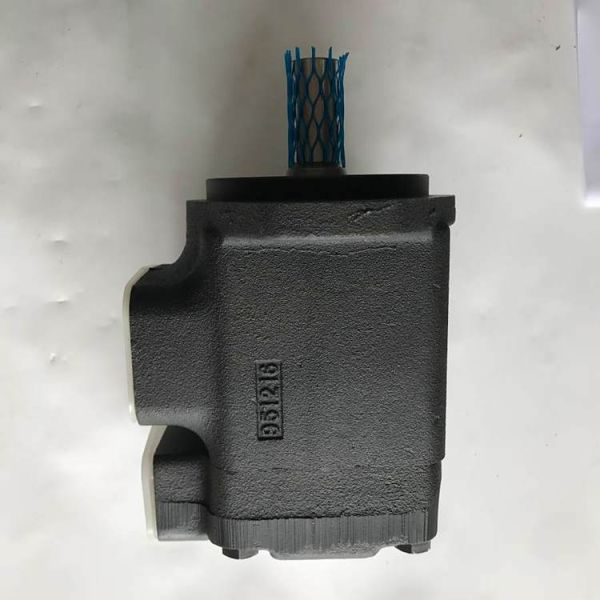

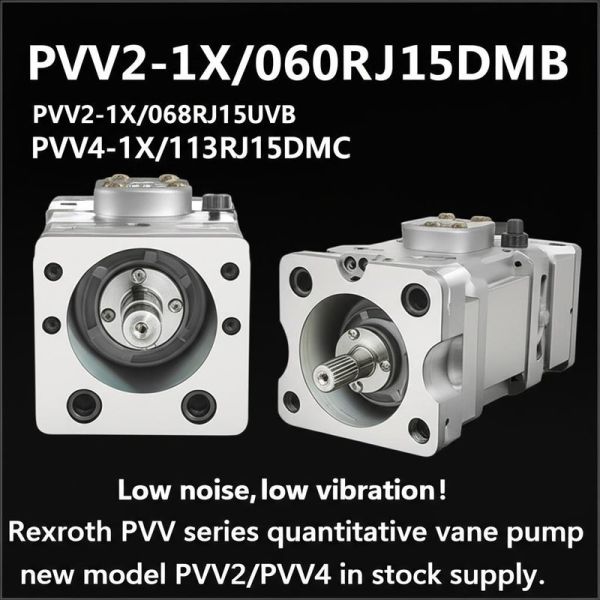

Rexroth PVV Series Quantitative Vane Pumps

PVV2-1X/060RJ15DMB, PVV2-1X/068RJ15UVB, PVV4-1X/113RJ15DMC - Low noise, low vibration hydraulic pumps with immediate availability.

Product Overview

The PVV series fixed displacement vane pumps are high-performance hydraulic pumps designed for industrial appliions requiring reliable and efficient fluid power. These pumps feature a compact design with long bearing life and low operating noise, making them ideal for injection molding machines, press machines, excavators, machine tools, and other mechanical equipment.

Product Models
PVV2-1X/060RJ15DMB
  • Displacement: 60 cc/rev
  • Maximum Pressure: 210 bar
  • Rotation: Clockwise or anti-clockwise
  • Mounting: Flange mounting
  • Port Connections: DIN ISO 228
  • Weight: Approximately 12 kg
PVV2-1X/068RJ15UVB
  • Displacement: 68 cc/rev
  • Maximum Pressure: 210 bar
  • Rotation: Clockwise or anti-clockwise
  • Operating Temperature: -15°C to +70°C
  • Fluid Viscosity Range: 16 to 100 mm²/s
  • Noise Level: Less than 70 dB(A)
PVV4-1X/113RJ15DMC
  • Displacement: 113 cc/rev
  • Maximum Pressure: 210 bar
  • Maximum Flow Rate: Up to 113 L/min
  • Rotational Speed: Up to 1800 rpm
  • Filtration: 20 µm absolute
  • Mounting Type: Flange mounting
Key Features
Advanced Design
  • Hydraulically Unloaded Shaft: Extends bearing life significantly
  • Hydraulically Unloaded Vanes: Reduces wear and extends service life
  • Exchangeable Pump Cartridges: Easy maintenance and serviceability
  • Low Operating Noise: Less than 70 dB(A) for quiet operation
  • High Efficiency: Optimized design for energy savings
Flexible Configuration
  • Clockwise or Anti-clockwise Rotation: Adaptable to various system requirements
  • Optional Positioning of Pressure Connections: Flexible installation options
  • Double Pump Configuration: Very compact design with individually selectable pressure connection positions
Technical Excellence
  • Maximum Operating Pressure: 210 bar
  • Nominal Sizes: 18 to 193 cm³
  • Series 1X: Standard configuration
  • Temperature Range: -15°C to +70°C
  • Fluid Compatibility: Hydraulic oil, water ethylene glycol
Appliions

The PVV series vane pumps are widely used in:

  • Injection Molding Machines: Precise flow control for plastic processing
  • Press Machines: High-pressure appliions for metal forming
  • Excavators: Reliable hydraulic power for construction equipment
  • Machine Tools: Accurate fluid power for manufacturing processes
  • Road Heating and Cooling Equipment: Temperature control systems
Technical Specifiions
Parameter PVV2-1X/060RJ15DMB PVV2-1X/068RJ15UVB PVV4-1X/113RJ15DMC
Displacement 60 cc/rev 68 cc/rev 113 cc/rev
Max Pressure 210 bar 210 bar 210 bar
Max Flow Rate 60 L/min 68 L/min 113 L/min
Max Speed 1800 rpm 1800 rpm 1800 rpm
Noise Level <70 dB(A) <70 dB(A) <70 dB(A)
Weight ~12 kg ~12 kg ~15 kg
Fluid Viscosity 16-100 mm²/s 16-100 mm²/s 16-100 mm²/s
Temperature Range -15°C to +70°C -15°C to +70°C -15°C to +70°C
Installation & Maintenance
Installation Requirements
  • Ensure proper alignment of drive shaft
  • Use appropriate mounting hardware (flange mounting)
  • Verify port connections match system requirements (DIN ISO 228)
  • Check fluid compatibility before operation
Maintenance Schedule
  • Daily: Check for leaks and unusual noise
  • Weekly: Monitor fluid temperature and pressure
  • Monthly: Inspect filters and fluid condition
  • Annually: Perform complete system inspection and fluid analysis
Fluid Recommendations
  • Hydraulic Oil: ISO VG 32 to 68
  • Water Glycol: Compatible with standard formulations
  • Filtration: Maintain 20 µm absolute filtration
  • Fluid Temperature: Keep within -15°C to +70°C operating range
Ordering Information

All models are available with standard delivery times and comprehensive technical support. Contact our sales team for pricing, availability, and custom configuration options.

Warranty: 1-year limited warranty on all products

Frequently Asked Questions
What is the maximum operating pressure for these pumps?
The PVV series vane pumps have a maximum operating pressure of 210 bar (approximately 3,000 psi). This pressure rating applies to all three models: PVV2-1X/060RJ15DMB, PVV2-1X/068RJ15UVB, and PVV4-1X/113RJ15DMC.
Can these pumps operate with different hydraulic fluids?
Yes, these pumps are compatible with standard hydraulic oils (ISO VG 32 to 68) and water glycol fluids. The fluid viscosity range is 16 to 100 mm²/s, and the operating temperature range is -15°C to +70°C. Always ensure the fluid meets the manufacturer's specifiions for optimal performance and longevity.
What is the expected noise level during operation?
The PVV series vane pumps operate at less than 70 dB(A), making them suitable for appliions where low noise is important. This low noise level is achieved through the hydraulically unloaded shaft and vanes design, which reduces vibration and wear.
How do I determine the correct pump size for my appliion?
To select the right pump, consider your system's flow requirements (L/min), operating pressure (bar), and speed (rpm). The displacement values (60, 68, or 113 cc/rev) indie the volume of fluid delivered per revolution. For example, at 1500 rpm, the PVV4-1X/113RJ15DMC would deliver approximately 170 L/min (113 cc/rev × 1500 rpm ÷ 1000). Always consult with our technical team for specific appliion requirements.
What maintenance is required for these pumps?
Regular maintenance includes daily checks for leaks and unusual noise, weekly monitoring of fluid temperature and pressure, monthly filter inspections, and annual complete system inspections. The pumps feature exchangeable cartridges for easy maintenance. Use only recommended fluids and maintain proper filtration (20 µm absolute) to ensure long service life.
