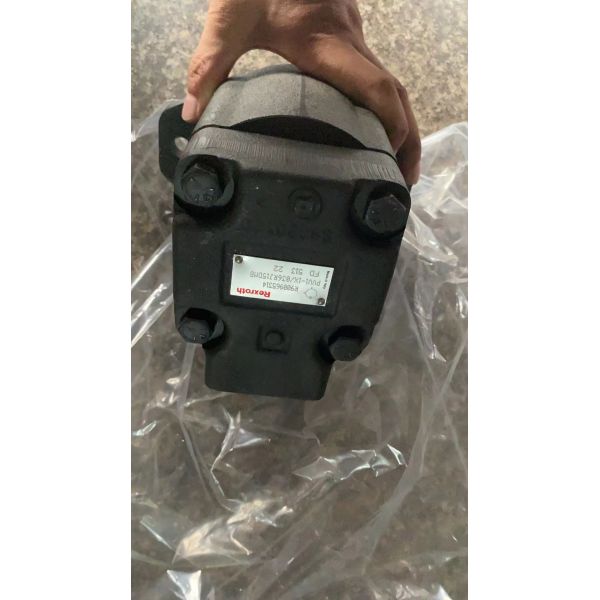

PVV4-1X/082RA15UVC PVV2-1X/040RB15DMBK01 PVV2-1X/068RB15DMBK01 PVV series quantitative vane pump high-pressure hydraulic oil pump imported from Italy by Rexroth
PVV4-1X/082RA15UVC PVV2-1X/040RB15DMBK01 PVV2-1X/068RB15DMBK01 PVV series quantitative vane pump high-pressure hydraulic oil pump imported from Italy by Rexroth
PVV4-1X/082RA15UVC PVV2-1X/040RB15DMBK01 PVV2-1X/068RB15DMBK01 PVV series quantitative vane pump high-pressure hydraulic oil pump imported from Italy by Rexroth
PVV4-1X/082RA15UVC PVV2-1X/040RB15DMBK01 PVV2-1X/068RB15DMBK01 PVV series quantitative vane pump high-pressure hydraulic oil pump imported from Italy by Rexroth
Specifications
Brand Name :
Rexroth
Model Number :
PVV4-1X/082RA15UVC PVV2-1X/040RB15DMBK01 PVV2-1X/068RB15DMBK01
Certifiion :
ISO
Place of Origin :
Italy
MOQ :
1
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Speed :
Hydraulic oil, water ethylene glycol
Displacement :
Varies by model, typically 10-100 cc/rev
Pumptype :
Variable Displacement / Fixed Displacement
Weight :
Varies by model, typically 5-50 kg
Fuel :
Gasoline
Port :
Foshan, China
Maximumpressure :
Up to 350 bar (5075 psi)
Pressure :
High Pressure
Description
PVV Series Fixed Displacement Vane Pumps
PVV4-1X/082RA15UVC, PVV2-1X/040RB15DMBK01, PVV2-1X/068RB15DMBK01 - High-pressure hydraulic vane pumps imported from Italy by Rexroth
Product Overview
The PVV series fixed displacement vane pumps are designed for industrial appliions requiring reliable hydraulic power with low noise and long service life. These pumps are engineered with hydraulically unloaded shafts and vanes to minimize wear, reduce operating noise, and extend bearing life. Ideal for use in injection molding machines, hydraulic presses, and machine tools, the PVV series offers flexible configurations (single or double pumps) and bidirectional operation.
Featured Models
  • PVV4-1X/082RA15UVC
    • Displacement: 82 cm³/rev (Size 4)
    • Maximum Pressure: 210 bar
    • Configuration: Single pump
    • Port Connections: DIN ISO 228
    • Weight: ~22 kg
  • PVV2-1X/040RB15DMBK01
    • Displacement: 40 cm³/rev (Size 2)
    • Maximum Pressure: 210 bar
    • Configuration: Single pump
    • Rotation: Clockwise or counterclockwise
  • PVV2-1X/068RB15DMBK01
    • Displacement: 68 cm³/rev (Size 2)
    • Maximum Pressure: 210 bar
    • Design: Interchangeable pump cartridges for easy maintenance
Technical Specifiions
Parameter PVV4-1X/082RA15UVC PVV2-1X/040RB15DMBK01 PVV2-1X/068RB15DMBK01
Displacement 82 cm³/rev 40 cm³/rev 68 cm³/rev
Max Pressure 210 bar 210 bar 210 bar
Speed Range 600-1800 rpm 600-3000 rpm 600-1800 rpm
Noise Level <70 dB(A) <70 dB(A) <70 dB(A)
Fluid Compatibility Hydraulic oil, water glycol Hydraulic oil, water glycol Hydraulic oil, water glycol
Key Features
  • Long Bearing Life: Hydraulically unloaded shaft design reduces wear
  • Low Operating Noise: Optimized for quiet operation (<70 dB(A))
  • Bidirectional Operation: Supports clockwise or counterclockwise rotation
  • Interchangeable Cartridges: Simplified maintenance with replaceable pump modules
  • Compact Design: Double-pump configurations save space
Appliions
  • Injection molding machinery
  • Hydraulic press systems
  • Machine tools and industrial automation
  • Mobile hydraulic equipment
Frequently Asked Questions
What is the maximum operating pressure for these pumps?
All PVV series pumps support a maximum pressure of 210 bar, ensuring compatibility with high-pressure industrial systems.
Can these pumps operate in both rotational directions?
Yes, PVV pumps are designed for bidirectional operation (clockwise or counterclockwise), providing installation flexibility.
How is maintenance handled for these vane pumps?
The pumps feature interchangeable cartridges, allowing quick replacement of internal components without full disassembly. This reduces downtime and maintenance costs.
What fluids are compatible with these pumps?
They work with standard hydraulic oils (ISO VG 32-68) and water-glycol fluids. Ensure fluid viscosity stays within 16-100 mm²/s for optimal performance.
Are double-pump configurations available for complex systems?
Yes, double-pump models (e.g., PVV41/54 series) combine two displacements in a compact unit, ideal for systems requiring multiple pressure circuits.
Ordering & Support
For pricing, delivery times, or technical assistance, contact our support team with the specific model numbers. All pumps come with standard warranty coverage.
