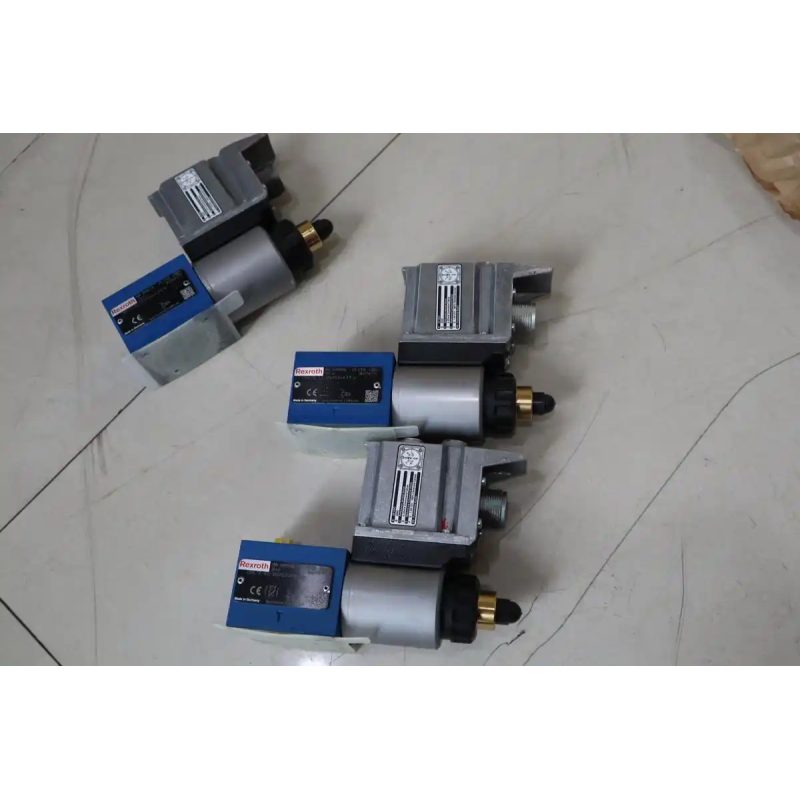

DBEP6A06-1X/45AG24K4M Rexroth DBEP series direct acting proportional relief valve
DBEP6A06-1X/45AG24K4M Rexroth DBEP series direct acting proportional relief valve
DBEP6A06-1X/45AG24K4M Rexroth DBEP series direct acting proportional relief valve
DBEP6A06-1X/45AG24K4M Rexroth DBEP series direct acting proportional relief valve
Specifications
Brand Name :
Rexroth
Model Number :
DBEP6A06-1X/45AG24K4M
Certifiion :
ISO
Place of Origin :
Germany
MOQ :
1
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Maximum working pressure :
Up to 315 bar
Flow capacity :
Typically 4-8 L/min at Δp=50 bar
Pressure setting range :
Adjustable via electrical signal
Response time :
Typically <30 ms for pressure build-up
Hysteresis :
≤3%
Description
DBEP6A06-1X/45AG24K4M Rexroth DBEP Series Direct Acting Proportional Relief Valve
DBEP6A06-1X/45AG24K4M Rexroth DBEP series direct acting proportional relief valve
Technical Specifiions
Parameter Specifiion
Product Series & Type DBEP series, Direct-operated proportional relief valve
Nominal Size NG6 (port size corresponding to ISO 4401 Form A)
Maximum Operating Pressure 315 bar (system pressure)
Pressure Setting Range 0 to 45 bar (adjustable via electrical signal)
Supply Voltage 24 V DC (±10%)
Nominal Current 0.8 A (typical at 20°C)
Flow Capacity 4-8 L/min at Δp=50 bar (varies with orifice size)
DBEP6A06-1X/45AG24K4M Rexroth DBEP series direct acting proportional relief valve
Related Product Models
DBETE-52/50G24K31F1M DBETE-52/50G24K31A1V DBETE-52/50G24K31A1M DBET-52/350G24K4V DBET-52/350G24K4M DBET-52/315G24K4V DBET-52/315G24K4M DBET-52/200G24K4V DBET-52/200G24K4M DBET-52/100G24K4V DBET-52/100G24K4M DBETE-52/350G24K31F1V DBETE-5X/50G24K31A1M DBETE-5X/100G24K31A1V DBETE-5X/350G24K31F1M DBETE-5X/350G24K31A1V DBETE-5X/350G24K31A1M DBETE-5X/315G24K31F1V DBETE-5X/315G24K31A1V DBETE-5X/315G24K31A1M DBETE-5X/200G24K31F1V DBETE-5X/200G24K31F1M DBETE-5X/200G24K31A1V DBETE-5X/200G24K31A1M DBETE-5X/100G24K31F1V DBETE-5X/100G24K31F1M DBETE-5X/100G24K31A1M DBET-5X/350G24K4V DBETE-5X/50G24K31F1V DBETE-5X/50G24K31F1M DBET-5X/350G24K4M DBET-5X/315G24K4V DBET-5X/315G24K4M DBET-5X/200G24K4V DBET-5X/200G24K4M DBET-5X/100G24K4V DBET-5X/100G24K4M DBET-5X/50G24K4V DBET-5X/50G24K4M DBETE-5X/50G24K31A1V DBETE-5X/315G24K31F1M DBETE-5X/350G24K31F1V DBETBEX-1X/310G24K31A1M DBETFX-1X/80G24-27NZ4M DBETFX-1X/180G24-27NZ4M DBETFX-1X/250G24-27NZ4M DBETFX-1X/315G24-27NZ4M DBETX-10/50G24-8NZ4M DBETX-10/80G24-8NZ4M DBETX-10/180G24-8NZ4M DBETX-10/50G24-25NZ4M DBETX-10/80G24-25NZ4M DBETX-10/180G24-25NZ4M DBETX-10/250G24-25NZ4M DBETX-10/315G24-25Z4M DBET6X/50G24K4V DBET6X/100G24K4V DBETB-6X/315G24K31A1V DBETB-6X/350G24K31A1V DBE6X-1X/80G24-8NZ4M DBE6X-1X/180G24-8NZ4M DBE6X-1X/80G24-25NZ4M DBE6X-1X/180G24-25NZ4M DBE6X-1X/315G24-25NZ4M DBEBE6X-1X/80G24K31F1M DBE10Z-1X/180XYG24-8NZ4M DBE10Z-1X/315XYG24-8NZ4M DBEB10Z-1X/180XYG24-37Z4M DBEB10Z-1X/315XYG24-37Z4M DBEBE10Z-1X/180XYG24K31A1M DBEBE10Z-1X/315XYG24K31A1M DBEME20 DBEME30
Frequently Asked Questions
What is the main function of this valve?
This is a direct-operated proportional relief valve. Its primary function is to continuously and precisely regulate hydraulic system pressure by receiving electrical control signals (typically 0-20mA or 0-10V), while also serving as a safety valve to prevent system overpressure.
What do the key numbers in the model code represent?
  • DBEP6: Indies the product series (DBEP) and nominal size (6, corresponding to NG6 port size)
  • A06: "A" denotes valve type variant, "06" refers to specific orifice size or flow characteristic
  • 45: Typically indies maximum pressure setting capability (e.g., 45 bar or related parameter)
  • G24: Specifies 24V DC operating voltage for the proportional solenoid
  • K4M: Identifies the specific coil type and electrical characteristics
What are the typical electrical specifiions?
  • Operating voltage: 24V DC (±10%)
  • Nominal current: Typically 700-800 mA (varies by coil type)
  • Coil resistance: Approximately 19-29 Ω at 20°C
  • Continuous duty: 100% (suitable for continuous operation)
  • Electrical connection: Usually via DIN 43650 standard plug connector
What are the key hydraulic performance parameters?
  • Maximum working pressure: Up to 315 bar (depending on variant)
  • Flow capacity: Typically 4-8 L/min at Δp=50 bar (varies by orifice size)
  • Pressure setting range: Adjustable via electrical signal (e.g., 0-45 bar or other range)
  • Response time: Typically <30 ms for pressure build-up
  • Hysteresis: ≤3%
  • Repeat accuracy: ≤1%
What are the installation and maintenance considerations?
  • Mounting: NG6 port size, flange mounting according to ISO 4401 or DIN 24340 standards
  • Fluid requirements: Mineral-based hydraulic oils, viscosity range 2.8-380 mm²/s
  • Temperature range: -20°C to +80°C (fluid), -20°C to +70°C (ambient)
  • Filtration: ISO 4406 class 20/18/15 or cleaner recommended
  • Initial setup: Requires bleeding air from the valve during commissioning
  • Maintenance: Regular inspection of coil connections, periodic cleaning of valve internals if contamination occurs
