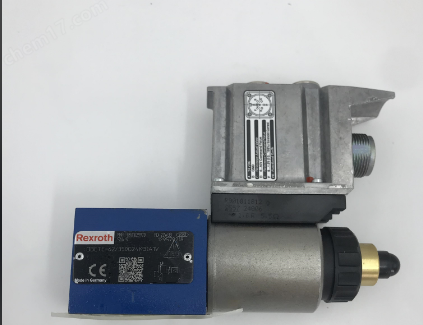

DBETE-52/200G24K31F1M Rexroth proportional control valve, German made overflow valve, imported with original packaging
DBETE-52/200G24K31F1M Rexroth proportional control valve, German made overflow valve, imported with original packaging
DBETE-52/200G24K31F1M Rexroth proportional control valve, German made overflow valve, imported with original packaging
DBETE-52/200G24K31F1M Rexroth proportional control valve, German made overflow valve, imported with original packaging
Specifications
Brand Name :
Rexroth
Model Number :
DBETE-52/200G24K31F1M
Certification :
ISO
Place of Origin :
German
MOQ :
1
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Condition :
Internal meshing principle
Pressure :
High Pressure
Fuel :
Gasoline
After Serive :
online video
Applications :
Mobile Machinery, Industrial Equipment, Construction Vehicles
Warranty Period :
1 year
Description

DBETE-52/200G24K31F1M Rexroth proportional control valve, German made overflow valve, imported with original packaging

Technical Parameters of DBETE-52/200G24K31F1M

Parameter
Value / Description
1. Product Model​
DBETE-52/200G24K31F1M
2. Nominal Pressure Rating​
200 bar (maximum operating pressure at port P)
3. Supply Voltage​
24 V DC (±10%, 21 to 35 V DC permissible range)
4. Electrical Connection​
6-pin plug + PE, compliant with DIN 43563 standard
5. Control Signal Input​
0 to 10 V analog signal (F1 type)
6. Protection Class​
IP65 (dust-tight and protected against water jets)
7. Ambient Temperature Range​
-20 °C to +50 °C (operating temperature)
8. Hydraulic Fluid Compatibility​
Mineral-based hydraulic oils (HL, HLP per DIN 51524), viscosity range: 10-800 mm²/s
9. Seal Material​
NBR (nitrile rubber, indicated by 'M' suffix)
10. Maximum Flow Rate​
2 L/min (at nominal pressure)
11. Maximum Operating Pressure​
420 bar (peak pressure)
12. Response Time​
<70 ms (typical for full signal change)
13. Hysteresis​
≤1% (typical)

DBETE-52/200G24K31F1M Rexroth proportional control valve, German made overflow valve, imported with original packaging

DBETE-6X/350YG24K31F1V
0811402036 DBETX-1X/50G24-8NZ4M
0811402018 DBETX-1X/80G24-8NZ4M
0811402017 DBETX-1X/180G24-8NZ4M
0811402019 DBETX-1X/250G24-8NZ4M
0811402016 DBETX-1X/315G24-8NZ4M
0811402034 DBETX-1X/50G24-25NZ4M
0811402030 DBETX-1X/80G24 25NZ4M
0811402031 DBETX-1X/180G24-25NZ4M 111
0811402035 DBETX-1X/250G24-25NZ4M
0811402032 DBETX-1X/315G24-25Z4M
0811402013 DBETBX-1X/28G24-37Z4M
0811402007 DBETBX-1X/80G24-37Z4M2
0811402003 DBETBX-1X/180G24-37Z4M
0811402001 DBETBX-1X/250G24-37Z4M2
0811402004 DBETBX-1X/315G24-37Z4M
DBETX-1X/50G24-8NZ4M
DBETX-1X/80G24-8NZ4M
DBETX-1X/315G24-8NZ4M
DBETX-1X/180G24-8NZ4M
DBETX-1X/250G24-8NZ4M
DBETX-1X/80G24-25NZ4M
DBETX-1X/50G24-25NZ4M
DBETX-1X/180G24-25NZ4M
DBETX-1X/315G24-25NZ4M
DBETX-1X/250G24-25NZ4M
DBET-61/50YG24K4M
DBET-61/50YG24K4V
DBET-61/100YG24K4M
DBET-61/100YG24K4V
DBET-61/200YG24K4M
DBET-61/200YG24K4V
DBET-61/315YG24K4M
DBET-61/315YG24K4V
DBET-61/350YG24K4M
DBET-61/350YG24K4V
DBETE-6X/420YG24K31A1V
DBETE-6X/50G24K31A1V
DBETE-6X/50G24K31F1V
DBETE-6X/50YG24K31A1V
DBETBX-1X/80G24-37Z4M2
DBETBX-1X/250G24-37Z4M2
DBETBEX-1X/80G24k31A1M
DBETBEX-1X/180G24k31A1M
DBETBEX-1X/250G24k31A1M
DBETBEX-1X/315G24k31A1M
DBETBEX-1X/80G24k31F1M
DBETBEX-1X/180G24k31F1M
DBETBEX-1X/315G24k31F1M
DBEP6A06-1X/45AG24K4M
DBEP6B06-1X/45AG24K4M
DBEP6C06-1X/45AG24K4M
DBEBE6X-1X/180G24K31F1M
DBEBE6X-1X/80G24K31A1M
DBEBE6X-1X/180G24K31A1M
DBEBE6X-1X/315G24K31A1M
DBETR-1X/30G24K4M
DBETR-1X/80G24K4M
DBETR-1X/180G24K4M
DBETR-1X/230G24K4M
DBETR-1X/315G24K4M
DBETR-1X/350G24K4M
DBET-52/50G24K4M
DBETE-52/100G24K31F1M
DBETE-52/350G24K31F1M
DBETE-52/350G24K31A1V
DBETE-52/350G24K31A1M
DBETE-52/315G24K31F1V
DBETE-52/315G24K31F1M
DBETE-52/315G24K31A1V
DBETE-52/315G24K31A1M
DBETE-52/200G24K31F1V
DBETE-52/200G24K31F1M
DBETE-52/200G24K31A1V
DBETE-52/200G24K31A1M
DBETE-52/100G24K31F1V
DBETE-52/100G24K31A1V
DBET-52/50G24K4V
DBETE-52/100G24K31A1M
DBETE-52/50G24K31F1V
DBETE-52/50G24K31F1M
DBETE-52/50G24K31A1V
DBETE-52/50G24K31A1M
DBET-52/350G24K4V
DBET-52/350G24K4M
DBET-52/315G24K4V
DBET-52/315G24K4M
DBET-52/200G24K4V
DBET-52/200G24K4M
DBET-52/100G24K4V
DBET-52/100G24K4M
DBETE-52/350G24K31F1V
DBETE-5X/50G24K31A1M
DBETE-5X/100G24K31A1V
DBETE-5X/350G24K31F1M
DBETE-5X/350G24K31A1V
DBETE-5X/350G24K31A1M
DBETE-5X/315G24K31F1V
DBETE-5X/315G24K31A1V
DBETE-5X/315G24K31A1M
DBETE-5X/200G24K31F1V
DBETE-5X/200G24K31F1M
DBETE-5X/200G24K31A1V
DBETE-5X/200G24K31A1M
DBETE-5X/100G24K31F1V
DBETE-5X/100G24K31F1M

Frequently Asked Questions (FAQ)

1. What is the nominal pressure rating and maximum flow rate?​
The nominal pressure rating is 200 bar, and the maximum flow rate is 2 L/min​ at this pressure. For optimal performance and longevity, it's recommended to operate within these specified limits.
2. What are the electrical specifications and control signal requirements?​
The valve operates on a 24 V DC​ power supply (permissible range: 21-35 V DC). The control input accepts an analog 0 to 10 V​ signal. Electrical connection is via a 6-pin plug with PE, compliant with DIN 43563 standard.
3. What is the protection class and operating temperature range?​
The valve has an IP65 protection class, making it dust-tight and protected against water jets. The ambient temperature range for operation is -20°C to +50°C.
4. What hydraulic fluids and seal materials are compatible with this valve?​
This model is compatible with mineral-based hydraulic oils (HL, HLP per DIN 51524 standards), with a viscosity range of 10-800 mm²/s. The seal material is NBR (nitrile rubber), indicated by the 'M' suffix in the model number.
5. What is the typical response time and hysteresis performance?​
The typical response time for a full signal change is less than 70 ms. The hysteresis is typically ≤1%, ensuring precise pressure control with minimal deviation between increasing and decreasing pressure cycles.
