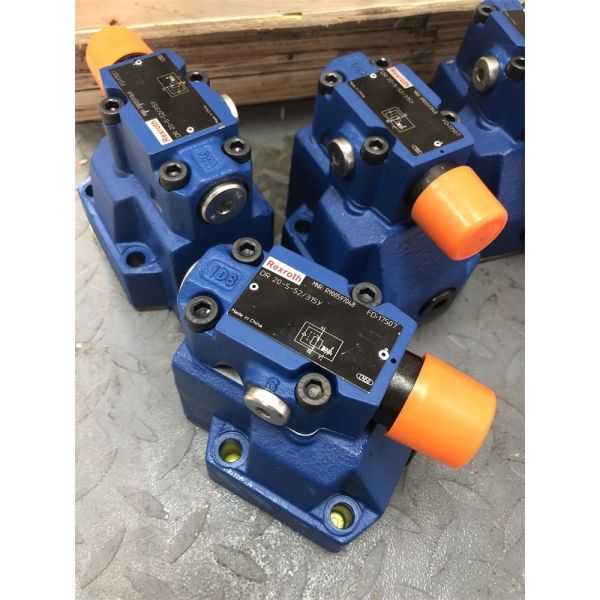

R900597132 DR10-5-5X/315YM German Rexroth stacked pressure reducing valve
R900597132 DR10-5-5X/315YM German Rexroth stacked pressure reducing valve
Specifications
Brand Name :
Rexroth
Model Number :
DR10-5-5X/315YM
Certification :
ISO
Place of Origin :
German
MOQ :
1
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Delivery Time :
2 weeeks
Packaging Details :
wooden box
Standard Signal​ :
Pulse-Width Modulation
Recommended Viscosity Range​ :
10 to 400 mm²/s (cSt)
Fluid Temperature Range​ :
-20°C to +80°C
Part Number :
R900597132
Maximum Operating Pressure :
315 bar
Description

Parameter

Specification

Function​

Stacked, Proportional Pressure Reducing Valve

Max. Reduced Pressure​

315 bar

Nominal Size/Flow​

NG 10 / ~80 l/min

Max. Operating Pressure (P, A, B, T)​

315 bar

Control Type​

Proportional Solenoid (with onboard electronics)

Control Signal​

PWM (typically 24V DC)

Mounting​

Sandwich plate, ISO 7368 (NG10) interface

Typical Use​

Electrically variable pressure control in a sub-circuit (e.g., presses, clamps).

R900597132 DR10-5-5X/315YM German Rexroth stacked pressure reducing valve

DR6DP1-5X/210YV
DR6DP1-5X/210Y
DR10-5-4X/200YV
DR10DP2-4X/150Y
DR10DP2-4X/150YM
DR20-4-5X/200YM
DR20-5-5X/50YM
DR10DP2-4X/75Y
DR10DP2-4X/75YM
DR10DP2-4X/25YM
DR30-4-5X/315YM
DR10-4-5X/315YM
DR10DP1-4X/75YM
DR10DP2-4X/210YM
DR30-5-5X/50YM
DR30-5-5X/50Y
DR10-5-5X/200Y
DR10-5-5X/50Y
DR20-4-5X/200Y
DR30-5-5X/350YM
DR30-4-5X/200Y
DR20-5-5X/200YV
DR30-6-5X/50YM
DR25G5-5X/200YM
DR30-5-5X/200YV
DR30-4-5X/200YM
DR30-5-5X/200YMV
DR10-7-5X/100Y
DR20-5-5X/50YV
DR10G4-5X/50YM
DR20-5-5X/315YMV
DR20-4-5X/50Y
DR20-7-5X/200YM
DR20-7-5X/200Y
DR30-7-5X/200YM
DR6DP7-5X/210YM
DR6DP7-5X/25YM
DR6DP2-5X/315YM
DR20K7-1X/200YM
DR30-5-5X/100Y
DR30-5-5X/200Y
DR10-4-5X/200Y
DR20-4-5X/315Y
DR20-4-5X/100Y
DR20-5-5X/315YM
DR10-4-5X/315Y
DR10-5-5X/100Y
DR30-5-5X/315YM
DR20-4-5X/100YM
DR10-4-5X/200YM
DR10-5-5X/315Y

Frequently Asked Questions (FAQ) for Rexroth DR 10-5-5X/315YM (R900597132)

Q1: What is the main function of this valve?

A:​ It is a proportional pressure reducing valve. It electronically controls and maintains a lower, stable pressure in a specific branch of a hydraulic circuit, independent of the main system pressure.

Q2: What does "315YM" in the model number mean?

A:​ 315​ indicates the maximum adjustable reduced pressure​ is 315 bar. Y​ means it has a proportional solenoid, and M​ specifies the type of solenoid coil/electronics (typically 24V DC with onboard electronics for PWM control).

Q3: How is this valve controlled?

A:​ It is controlled by a Pulse-Width Modulation (PWM)​ signal, typically 24V DC, from a compatible proportional amplifier or programmable logic controller (PLC) output card.

Q4: How is it installed into a system?

A:​ It is a sandwich or stacked valve. It mounts between a NG10 subplate​ (e.g., Rexroth RE 10-5 series) and another valve or cover plate, forming a modular manifold block.

Q5: What is the nominal flow rate?

A:​ The nominal flow is approximately 80 liters per minute. The actual usable flow depends on the pressure drop across the valve. Refer to the performance curves in the datasheet for details.
