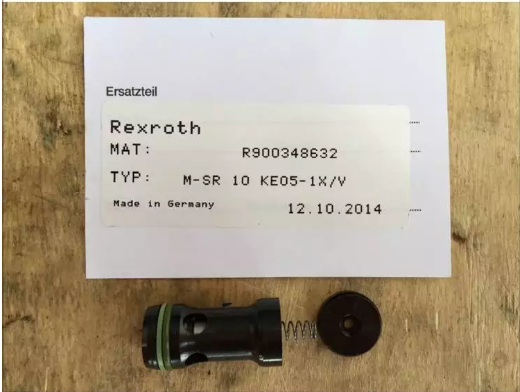

R900344549 M-SR10KE05-1X/ Hydraulic valve Rexroth Germany made one-way valve
R900344549 M-SR10KE05-1X/ Hydraulic valve Rexroth Germany made one-way valve
R900344549 M-SR10KE05-1X/ Hydraulic valve Rexroth Germany made one-way valve
R900344549 M-SR10KE05-1X/ Hydraulic valve Rexroth Germany made one-way valve
Specifications
Brand Name :
Rexroth
Model Number :
R900344549 M-SR10KE05-1X/
Certification :
ISO
Place of Origin :
Germany
MOQ :
1
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Fluid Compatibility :
HL, HLP, HFC
Seal Material :
NBR
Weight :
0.04 kg
Flow Rate :
60 l/min
Actuation Type :
Direct Acting
Description
R900344549 M-SR10KE05-1X/ Hydraulic valve Rexroth Germany made one-way valve
R900344549 M-SR10KE05-1X/ Hydraulic valve Rexroth Germany made one-way valve
Technical Specifications
Parameter Value
Part Number R900344549 M-SR10KE05-1X/
Product Type Check Valve, Cartridge Type
Product Series M-SR
Valve Spool Seat Design
Actuation Type Direct Acting
Working Pressure 420 bar
Flow Rate 60 l/min
Pressure Setting 0.5 bar
Pressure Preset No
Hydraulic Fluid HL, HLP, HFC
Seal Material NBR
Number of Ports 2
Weight 0.04 kg
R900344549 M-SR10KE05-1X/ Hydraulic valve Rexroth Germany made one-way valve
Related Part Numbers
R900346083 M-SR8KE05-1X/
R900344549 M-SR10KE05-1X/
R900345372 M-SR15KE05-1X
R900340979 M-SR20KE05-1X/
R900344778 M-SR25KE05-1X/
R900301895 M-SR30KD05-1X/
R900345743 M-SR30KE02-1X/
R900347495 Z2S6-1-6X/
R900347498 Z2S6A1-6X/
R900347499 Z2S6A2-6X/
R900347501 Z2S6B1-6X/
R900407394 Z2S10-1-3X/
R900407424 Z2S10A1-3X/
R900433032 Z2S22A1-5X
R900432915 Z2S22-1-5X/
R900483371 SL10PA1-4X/M
R900052392 M-3SED6CK1X/350CG24N9K4
R900052621 M-3SED6UK1X/350CG24N9K4
R900572890 M-2SEW6P3X/420MG24N9K4
R900569808 M-2SEW6N3X/420MG24N9K4
R901290869 M-3SEW6C3X/420MG24N9Z2/B08V SO865
R900075565 M-3SEW10C1X/420MG24N9K4
R900051544 M-3SEW10U1X/630MG24N9K4
R900051053 M-3SED10UK1X/350CG24N9K4
R900944594 4WE6D6X/EG110N9K4/V
Product Overview

The Rexroth M-SR 10 KE05-1X/ is a compact, cartridge-type check valve designed for reliable one-way flow control in hydraulic systems. Part of the proven M-SR series, it offers robust performance in a direct-acting, seat-design configuration.

Core Specifications
  • Working Pressure: 420 bar
  • Flow Rate: 60 l/min
  • Cracking Pressure: 0.5 bar
  • Weight: 0.04 kg
  • Seal Material: NBR
  • Fluid Compatibility: HL, HLP, HFC
Key Features
  • High flow capacity for efficient system performance
  • High-pressure endurance for demanding applications
  • Direct-acting, no pressure preset required
  • Compact, lightweight cartridge design
  • Broad fluid compatibility
Applications

Suitable for industrial machinery, mobile equipment, and hydraulic power units requiring dependable check valve functionality.

Frequently Asked Questions
What is the rated flow of this valve?
The rated flow is 60 liters per minute (l/min).
What is the maximum system pressure it can handle?
Its maximum working pressure is 420 bar.
How does it open? Does it need pilot pressure?
It is a direct-acting valve with a 0.5 bar cracking pressure. It does not require pilot pressure.
What hydraulic fluids can be used with it?
It is compatible with HL, HLP, and HFC hydraulic fluid types.
What is its installation type?
It is a cartridge-type (plug-in) valve for easy integration into manifold blocks.
How much does it weigh?
It is lightweight, weighing approximately 0.04 kg.
