PV7-1X/100-118RE07MC7-16 PV7-1X/25-45RE01MC5-08 PV7-1X/16-20RE01MC0-16 Vane pump pilot type German Rexroth hydraulic oil pump PV7 series in stock original
PV7-1X/100-118RE07MC7-16 PV7-1X/25-45RE01MC5-08 PV7-1X/16-20RE01MC0-16 Vane pump pilot type German Rexroth hydraulic oil pump PV7 series in stock original
PV7-1X/100-118RE07MC7-16 PV7-1X/25-45RE01MC5-08 PV7-1X/16-20RE01MC0-16 Vane pump pilot type German Rexroth hydraulic oil pump PV7 series in stock original
PV7-1X/100-118RE07MC7-16 PV7-1X/25-45RE01MC5-08 PV7-1X/16-20RE01MC0-16 Vane pump pilot type German Rexroth hydraulic oil pump PV7 series in stock original
Specifications
Brand Name :
Rexroth
Model Number :
PV7-1X/100-118RE07MC7-16 PV7-1X/25-45RE01MC5-08 PV7-1X/16-20RE01MC0-16
Certifiion :
ISO
Place of Origin :
German
MOQ :
1
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Model Series :
PV7-1X/100-118RE07MC7-16 PV7-1X/25-45RE01MC5-08 PV7-1X/16-20RE01MC0-16
Displacement per Revolution :
10–25 cm³/rev (varies by specific model)
Maximum Operating Pressure :
210 bar (continuous), 250 bar (peak)
Maximum Speed :
1800–3600 rpm (depends on displacement and fluid viscosity)
Fluid Temperature Range :
'-20 °C to +80 °C (operation); -40 °C to +90 °C (storage)
Description
Rexroth PV7 Series Vane Pump - Pilot Type Hydraulic Oil Pump
Product Overview

German Rexroth PV7 series hydraulic vane pumps, available in stock as original equipment. These pilot-type vane pumps deliver reliable hydraulic power for industrial appliions.

Featured Models:
PV7-1X/100-118RE07MC7-16
PV7-1X/25-45RE01MC5-08
PV7-1X/16-20RE01MC0-16
Technical Specifiions
Parameter Specifiion
Model Series PV7-1X/100-118RE07MC7-16
PV7-1X/25-45RE01MC5-08
PV7-1X/16-20RE01MC0-16 (typical models)
Displacement per Revolution 10-25 cm³/rev (varies by specific model)
Maximum Operating Pressure 210 bar (continuous), 250 bar (peak)
Maximum Speed 1800-3600 rpm (depends on displacement and fluid viscosity)
Minimum Speed 600 rpm (ensures stable operation)
Fluid Medium Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended)
Fluid Temperature Range -20 °C to +80 °C (operation); -40 °C to +90 °C (storage)
Viscosity Range 10-1000 mm²/s (operation); 2-1500 mm²/s (start-up)
Volumetric Efficiency ≥90% (at rated pressure and speed)
Total Efficiency ≥80% (at rated working condition)
Noise Level ≤65 dB(A) (at 1 m distance under rated operation)
Suction Pressure -0.8 bar to +1 bar (absolute pressure: 0.2-1.1 bar)
Mounting Type Flange mounting (ISO 3019-2 standard), foot mounting (optional)
Shaft Connection Splined shaft (ISO 4162 standard) or keyed shaft (customizable)

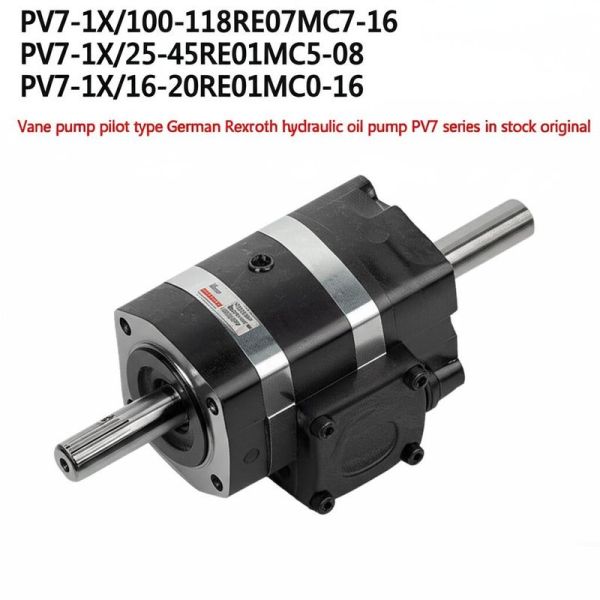

Product Image
PV7-1X/100-118RE07MC7-16 PV7-1X/25-45RE01MC5-08 PV7-1X/16-20RE01MC0-16 Vane pump pilot type German Rexroth hydraulic oil pump PV7 series in stock original
Available Model Variants
PV7-1X/100-118RE07MD3-16
PV7-1X/63-71RE07MW0-16WG
PV7-1X/10-20RE01MD5-10
PV7-1X/25-30RE01MW0-16WG
PV7-1X/40-45RE37MW5-16WG
PV7-1X/100-118RE07MC5-16WG
PV7-1X/63-94RE07MC7-08WG
PV7-1X/40-45RE37MW6-16WH
PV7-1X/100-118RE07MD6-16
PV7-1X/40-45RE37MC5-16WG
PV7-1X/100-118RE07MC0-16
PV7-1X/63-71RE07MD0-16
PV7-1X/40-45RE37MC0-16-P90
PV7-1X/25-30RE01MC0-16-P100Q38
PV7-1X/100-150RE07MC0-08-A464
PV7-1X/100-118RE07MD0-16
PV7-1X/10-14RE01MN0-16
PV7-1X/40-45RE37MC5-16
PV7-1X/100-118RE07MC5-16
PV7-1X/25-30RE01KC3-16
PV7-1X/10-20RE01MC5-10WG
PV7-1X/25-30RE01MW0-16
PV7-1X/16-20RE01MD3-16
PV7-1X/16-20RE01MC0-16-P110
PV7-1X/40-45RE37KD0-16-C3.1
PV7-1X/63-71RE07MC5-16WH
PV7-1X/16-30RE01KC0-08
PV7-1X/10-14RE01MD5-16
PV7-1X/63-71RE07MC6-16
PV7-1X/16-20RE01KD0-16
PV7-1X/10-14RE01MW0-16
PV7-1X/63-71RE07MC0-16-C3.1
PV7-1X/16-30RE01MW0-08WH
PV7-1X/100-150RE07MC0-08-A446
PV7-1X/25-30RE01MC5-16WG
PV7-1X/10-20RE01MC0-10-A497
PV7-1X/100-150RE07KC0-08
PV7-1X/100-150RE07MD5-08
PV7-1X/25-45RE01MC0-08-P25Q50
PV7-1X/40-71RE37MC5-08
PV7-1X/10-14RE01KD0-16
PV7-1X/16-20RE01MC0-16-P120
PV7-1X/100-150RE07MW0-08WH
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
PV7-1X/40-45RE37MC8-16
PV7-1X/16-20RE01MW0-16WH
PV7-1X/16-20RE01MC3-16-P50Q25
PV7-1X/100-118RE07KC0-16
PV7-1X/40-71RE37MC5-08WH
PV7-1X/100-118RE07MC6-16
PV7-1X/40-71RE37MC3-08
Frequently Asked Questions
Can Rexroth PV7 vane pump be used in high-altitude environments?
Yes, it can work stably in high-altitude environments as long as the working conditions meet the rated requirements.
Is Rexroth PV7 vane pump a trusted choice for industrial users?
Yes, it is a trusted hydraulic power solution for many industrial users around the world.
Does Rexroth PV7 vane pump generate much vibration during operation?
No, it is designed to minimize vibration, ensuring a smooth working process.
Can Rexroth PV7 vane pump be used in the hydraulic system of injection molding machines?
Yes, it is very suitable for injection molding machine hydraulic systems due to its stable pressure and flow control.
What factors will affect the service life of Rexroth PV7 vane pump?
Its service life is mainly affected by working pressure, hydraulic fluid quality, operating temperature and maintenance frequency.
