PV7-1X/40-71RE37MC0-08 PV7-1X/100-118RE07MW6-16 PV7-1X/16-30RE01MC5-08 Rexroth German-made vane pump PV7 series pilot-operated hydraulic oil pump
PV7-1X/40-71RE37MC0-08 PV7-1X/100-118RE07MW6-16 PV7-1X/16-30RE01MC5-08 Rexroth German-made vane pump PV7 series pilot-operated hydraulic oil pump
PV7-1X/40-71RE37MC0-08 PV7-1X/100-118RE07MW6-16 PV7-1X/16-30RE01MC5-08 Rexroth German-made vane pump PV7 series pilot-operated hydraulic oil pump
PV7-1X/40-71RE37MC0-08 PV7-1X/100-118RE07MW6-16 PV7-1X/16-30RE01MC5-08 Rexroth German-made vane pump PV7 series pilot-operated hydraulic oil pump
Specifications
Brand Name :
Rexroth
Model Number :
PV7-1X/40-71RE37MC0-08 PV7-1X/100-118RE07MW6-16 PV7-1X/16-30RE01MC5-08
Certifiion :
ISO
Place of Origin :
German
MOQ :
1
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Inlet Port Size :
G1/2
Series :
1 and 3
Pump Shaft Position :
Horizontal
Efficiency :
Up to 95%
Displacement :
Varies by model, typically 10-200 cc/rev
Sealtype :
NBR or FKM seals
Rotation :
Clockwise or Counterclockwise
Pump :
Rexroth
Description
Rexroth PV7 Series Vane Pumps
Featured Models
  • PV7-1X/40-71RE37MC0-08
  • PV7-1X/100-118RE07MW6-16
  • PV7-1X/16-30RE01MC5-08

Rexroth German-made vane pump PV7 series pilot-operated hydraulic oil pump

Technical Specifiions
Parameter/Property egory Direct-Acting (PV7-A) Series Pilot-Operated (PV7-C/D/N/W) Series Unit Remarks
Model Range PV7-1X/06-10RA01MA0-10, PV7-2X/20-25RA01MA0-10 PV7-1X/14-20RE01MC0-16, PV7-1X/100-118RE07KD0-16 #VALUE! 1X/2X=component series; 06/14/20=frame size
Displacement per Revolution 10-25 14-150 cm³/rev Displacement varies by specific model suffix
Max. Continuous Working Pressure 100 160 bar PV7-A: ≤100 bar; PV7-C/D/N/W: ≤160 bar
Max. Peak Pressure 120 200 bar Short-term (≤5s) overload only
Speed Range 600-2800 600-3600 rpm Higher speed for smaller displacement models
Max. Flow Rate (at 1800 rpm) 36 270 l/min Calculated at rated displacement
Volumetric Efficiency (Rated Condition) ≥90% ≥92% % At 160 bar, 1800 rpm, ISO VG 46 oil
Total Efficiency (Nominal Operation) ≥80% ≥82% % Includes mechanical & volumetric efficiency
Suction Pressure Range 1 -0.8 to +1 bar Absolute pressure: 0.2-1.1 bar
Fluid Compatibility Mineral oil (HLP), synthetic oil (HETG/HEES) Mineral oil (HLP), synthetic oil (HETG/HEES) - Use FKM seals for synthetic fluids
Fluid Viscosity Range 10-1000 (operation); 2-1500 (start-up) 10-1000 (operation); 2-1500 (start-up) mm²/s Optimal: 16-160 mm²/s
Fluid Temperature Range -20 to +80 -20 to +80 °C Storage: -40 to +90 °C
Noise Level (1 m Distance, Rated Operation) ≤63 ≤65 dB(A) Pilot-operated models have optimized noise reduction
Mounting Standard ISO 3019-2 flange ISO 3019-2 flange - Optional foot mounting for some models
Shaft Connection ISO 4162 splined shaft ISO 4162 splined shaft - Keyed shaft available on request

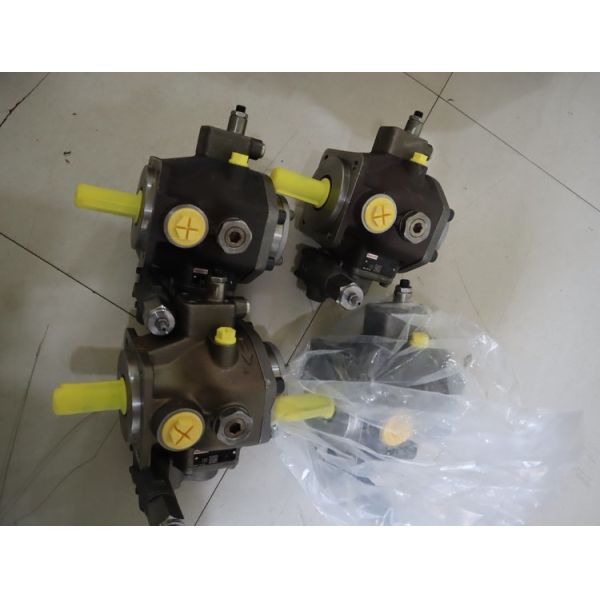

Product Image
PV7-1X/40-71RE37MC0-08 PV7-1X/100-118RE07MW6-16 PV7-1X/16-30RE01MC5-08 Rexroth German-made vane pump PV7 series pilot-operated hydraulic oil pump
Available Model Variants
  • PV7-1X/16-20RE01MC0-16-P60Q26
  • PV7-1X/16-20RE01MC5-16
  • PV7-1X/40-71RE37MC5-08WG
  • PV7-1X/25-45RE01MC7-08
  • PV7-1X/25-30RE01MW5-16WH
  • PV7-1X/10-20RE01MD0-10
  • PV7-1X/63-71RE07MD0-16-Q90
  • PV7-1X/16-30RE01MC3-08
  • PV7-1X/100-150RE07MC7-08
  • PV7-1X/100-118RE07MN0-16
  • PV7-1X/10-20RE01MC5-10
  • PV7-1X/25-30RE01MC5-16WH-A234
  • PV7-1X/100-150RE07MC5-08WH
  • PV7-1X/25-30RE01MW0-16WH
  • PV7-1X/10-20RE01MC7-10WH
  • PV7-1X/25-45RE01MC5-08
  • PV7-1X/40-45RE37MC8-16
  • PV7-1X/16-20RE01MW0-16WH
  • PV7-1X/16-20RE01MC3-16-P50Q25
  • PV7-1X/100-118RE07KC0-16
  • PV7-1X/40-71RE37MC5-08WH
  • PV7-1X/100-118RE07MC6-16
  • PV7-1X/40-71RE37MC3-08
  • PV7-1X/40-71RE37MC7-08WH
  • PV7-1X/10-14RE01MW0-16WH
  • PV7-1X/10-20RE01MC3-10-A497
  • PV7-1X/16-20RE01MC3-16
  • PV7-1X/16-20RE01MC5-16WH
  • PV7-1X/63-71RE07MC3-06-A460
  • PV7-1X/16-30RE01MC5-08WH
  • PV7-1X/10-14RE01MC0-16-P100
  • PV7-1X/63-94RE07MC5-08WH
  • PV7-1X/10-14RE01MC3-16
  • PV7-1X/40-45RE37MD0-16
  • PV7-1X/100-118RE07MC7-16WH
  • PV7-1X/25-45RE01MC5-08WH
  • PV7-1X/16-20RE01MC0-16
  • PV7-1X/63-71RE07MC5-16WG
  • PV7-1X/63-71RE07KC3-16
  • PV7-1X/10-20RE01MC5-10WH
  • PV7-1X/16-20RE01MC7-16
  • PV7-1X/10-14RE01MC7-16
  • PV7-1X/63-94RE07MC0-08
  • PV7-1X/16-20RE01MC0-16-P100Q29
  • PV7-1X/25-30RE01MC0-16-P100Q36
  • PV7-1X/40-45RE37MW5-16WH
  • PV7-1X/10-14RE01MC0-16-P45
  • PV7-1X/25-45RE01MN0-08
  • PV7-1X/25-30RE01MC0-16
  • PV7-1X/63-94RE07MC0-08-P75
  • PV7-1X/63-71RE07MW5-16WH
  • PV7-1X/25-30RE01MC5-16
  • PV7-1X/40-71RE37MD0-08
  • PV7-1X/100-150RE07MD0-08
  • PV7-1X/10-20RE01MC7-10
  • PV7-1X/10-14RE01MD3-16
  • PV7-1X/100-118RE07MW0-16WH
  • PV7-1X/100-118RE07KD0-16
  • PV7-1X/10-14RE01MC5-16
  • PV7-1X/63-94RE07MN0-08
  • PV7-1X/10-14RE01KC0-16
  • PV7-1X/40-45RE37MC3-16
  • PV7-1X/40-45RE37MC7-16
  • PV7-1X/16-20RE01MC0-16-C3.1
  • PV7-1X/40-45RE37MC0-16-A446
  • PV7-1X/100-118RE07MW0-16WG
  • PV7-1X/100-150RE07MC0-08
  • PV7-1X/63-94RE07MC5-08WG
  • PV7-1X/16-20RE01KC0-16
  • PV7-1X/40-55RE37MC0-08-A449
  • PV7-1X/63-94RE07MD0-08
  • PV7-1X/16-20RE01MD0-16-Q25
  • PV7-1X/40-45RE37MD0-16-P50Q39
  • PV7-1X/63-71RE07MD0-16-Q65
  • PV7-1X/16-30RE01MC0-08
  • PV7-1X/40-45RE37MW0-16
  • PV7-1X/40-71RE37MC0-08
  • PV7-1X/100-118RE07MW6-16WH
  • PV7-1X/16-30RE01MC5-08WG
  • PV7-1X/10-20RE01MC0-10
  • PV7-1X/63-71RE07MW0-16
  • PV7-1X/63-94RE07KC0-08
  • PV7-1X/40-45RE37MC7-16WH
  • PV7-1X/10-14RE01MC0-16-P60Q15
  • PV7-1X/63-71RE07KW0-16WG
  • PV7-1X/100-118RE07KC5-16
  • PV7-1X/25-30RE01MC7-16
  • PV7-1X/63-71RE07MC5-16
  • PV7-1X/25-30RE01KD0-16
  • PV7-1X/10-14RE01MC5-16WH
  • PV7-1X/10-20RE01MC0-10-P45
  • PV7-1X/16-20RE01MW0-16
  • PV7-1X/16-30RE01MD0-08
  • PV7-1X/25-45RE01MD0-08
  • PV7-1X/100-118RE07MC7-16
  • PV7-1X/10-14RE01MC0-16-P90
  • PV7-1X/16-20RE01MC7-16WH
  • PV7-1X/40-45RE37MD0-16-C3.1
  • PV7-1X/40-45RE37MW0-16WG
  • PV7-1X/40-45RE37KD0-16
  • PV7-1X/40-45RE37MC0-16-P80
  • PV7-1X/16-30RE01MC5-08
  • PV7-1X/100-150RE07KD0-08
  • PV7-1X/40-45RE37MW0-16WH
  • PV7-1X/10-14RE01MD0-16
  • PV7-1X/100-150RE07MC5-08WG
  • PV7-1X/16-30RE01MC7-08
Frequently Asked Questions
Is Rexroth PV7 vane pump compliant with international standards?
Yes, it is fully compliant with international hydraulic industry standards.
How about the heat generation of Rexroth PV7 vane pump during high-pressure operation?
It is designed to reduce heat generation, preventing overheating in high-pressure working conditions.
Does Rexroth PV7 vane pump have a reliable sealing system?
Yes, it is equipped with a reliable sealing system to prevent fluid leakage effectively.
Is Rexroth PV7 vane pump a cost-effective solution?
Absolutely, it offers high performance at a reasonable price, making it cost-effective for hydraulic power needs.
Can Rexroth PV7 vane pump handle high-viscosity hydraulic fluids?
Yes, it can handle high-viscosity hydraulic fluids effectively without affecting performance.
