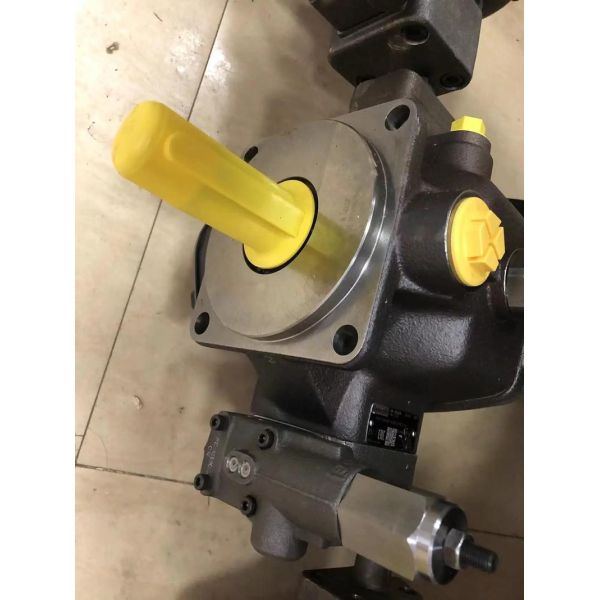

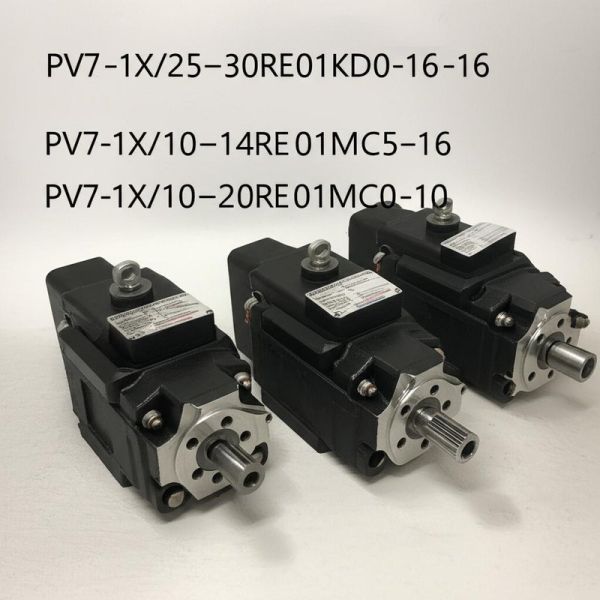

PV7-1X/25-30RE01KD0-16 PV7-1X/10-14RE01MC5-16 PV7-1X/10-20RE01MC0-10 Made in Germany, PV7 series pilot-operated vane pump, Rexroth original imported hydraulic pump
PV7-1X/25-30RE01KD0-16 PV7-1X/10-14RE01MC5-16 PV7-1X/10-20RE01MC0-10 Made in Germany, PV7 series pilot-operated vane pump, Rexroth original imported hydraulic pump
PV7-1X/25-30RE01KD0-16 PV7-1X/10-14RE01MC5-16 PV7-1X/10-20RE01MC0-10 Made in Germany, PV7 series pilot-operated vane pump, Rexroth original imported hydraulic pump
PV7-1X/25-30RE01KD0-16 PV7-1X/10-14RE01MC5-16 PV7-1X/10-20RE01MC0-10 Made in Germany, PV7 series pilot-operated vane pump, Rexroth original imported hydraulic pump
Specifications
Brand Name :
Rexroth
Model Number :
PV7-1X/25-30RE01KD0-16 PV7-1X/10-14RE01MC5-16 PV7-1X/10-20RE01MC0-10
Certifiion :
ISO
Place of Origin :
Germany
MOQ :
1
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Pressurerating :
Up to 350 bar
Inlet Connection :
Threaded or Flanged
Shafttype :
Splined / Keyed
Weight :
Varies by model, approx. 10-30 kg
Pump :
Rexroth
Operatingtemperaturerange :
-20°C to 80°C
Displacement :
10 to 250 cc/rev
Pressure :
High Pressure
Transport Package :
Wooden Box
Description
PV7 Series Pilot-Operated Vane Pumps

PV7-1X/25-30RE01KD0-16, PV7-1X/10-14RE01MC5-16, PV7-1X/10-20RE01MC0-10

Made in Germany, Rexroth original imported hydraulic pump

Technical Specifiions
Parameter Specifiion
Model Series PV7-1X/10-14RE01MC0-16, PV7-1X/16-20RE01MC0-16, PV7-2X/20-25RE01MC0-16 (typical models)
Displacement per Revolution 10-25 cm³/rev (varies by specific model)
Maximum Operating Pressure 210 bar (continuous), 250 bar (peak)
Maximum Speed 1800-3600 rpm (depends on displacement and fluid viscosity)
Minimum Speed 600 rpm (ensures stable operation)
Fluid Medium Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended)
Fluid Temperature Range -20 °C to +80 °C (operation); -40 °C to +90 °C (storage)
Viscosity Range 10-1000 mm²/s (operation); 2-1500 mm²/s (start-up)
Volumetric Efficiency ≥90% (at rated pressure and speed)
Total Efficiency ≥80% (at rated working condition)
Noise Level ≤65 dB(A) (at 1 m distance under rated operation)
Suction Pressure -0.8 bar to +1 bar (absolute pressure: 0.2-1.1 bar)
Mounting Type Flange mounting (ISO 3019-2 standard), foot mounting (optional)
Shaft Connection Splined shaft (ISO 4162 standard) or keyed shaft (customizable)
PV7-1X/25-30RE01KD0-16 PV7-1X/10-14RE01MC5-16 PV7-1X/10-20RE01MC0-10 Made in Germany, PV7 series pilot-operated vane pump, Rexroth original imported hydraulic pump
Available Models
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
PV7-1X/40-45RE37MC8-16
PV7-1X/16-20RE01MW0-16WH
PV7-1X/16-20RE01MC3-16-P50Q25
PV7-1X/100-118RE07KC0-16
PV7-1X/40-71RE37MC5-08WH
PV7-1X/100-118RE07MC6-16
PV7-1X/40-71RE37MC3-08
PV7-1X/40-71RE37MC7-08WH
PV7-1X/10-14RE01MW0-16WH
PV7-1X/10-20RE01MC3-10-A497
PV7-1X/16-20RE01MC3-16
PV7-1X/16-20RE01MC5-16WH
PV7-1X/63-71RE07MC3-06-A460
PV7-1X/16-30RE01MC5-08WH
PV7-1X/10-14RE01MC0-16-P100
PV7-1X/63-94RE07MC5-08WH
PV7-1X/10-14RE01MC3-16
PV7-1X/40-45RE37MD0-16
PV7-1X/100-118RE07MC7-16WH
PV7-1X/25-45RE01MC5-08WH
PV7-1X/16-20RE01MC0-16
PV7-1X/63-71RE07MC5-16WG
PV7-1X/63-71RE07KC3-16
PV7-1X/10-20RE01MC5-10WH
PV7-1X/16-20RE01MC7-16
PV7-1X/10-14RE01MC7-16
PV7-1X/63-94RE07MC0-08
PV7-1X/16-20RE01MC0-16-P100Q29
PV7-1X/25-30RE01MC0-16-P100Q36
PV7-1X/40-45RE37MW5-16WH
PV7-1X/10-14RE01MC0-16-P45
PV7-1X/25-45RE01MN0-08
PV7-1X/25-30RE01MC0-16
PV7-1X/63-94RE07MC0-08-P75
PV7-1X/63-71RE07MW5-16WH
PV7-1X/25-30RE01MC5-16
PV7-1X/40-71RE37MD0-08
PV7-1X/100-150RE07MD0-08
PV7-1X/10-20RE01MC7-10
PV7-1X/10-14RE01MD3-16
PV7-1X/100-118RE07MW0-16WH
PV7-1X/100-118RE07KD0-16
PV7-1X/10-14RE01MC5-16
PV7-1X/63-94RE07MN0-08
PV7-1X/10-14RE01KC0-16
PV7-1X/40-45RE37MC3-16
PV7-1X/40-45RE37MC7-16
PV7-1X/16-20RE01MC0-16-C3.1
PV7-1X/40-45RE37MC0-16-A446
PV7-1X/100-118RE07MW0-16WG
PV7-1X/100-150RE07MC0-08
PV7-1X/63-94RE07MC5-08WG
PV7-1X/16-20RE01KC0-16
PV7-1X/40-55RE37MC0-08-A449
PV7-1X/63-94RE07MD0-08
PV7-1X/16-20RE01MD0-16-Q25
PV7-1X/40-45RE37MD0-16-P50Q39
PV7-1X/63-71RE07MD0-16-Q65
PV7-1X/16-30RE01MC0-08
PV7-1X/40-45RE37MW0-16
PV7-1X/40-71RE37MC0-08
PV7-1X/100-118RE07MW6-16WH
PV7-1X/16-30RE01MC5-08WG
PV7-1X/10-20RE01MC0-10
PV7-1X/63-71RE07MW0-16
PV7-1X/63-94RE07KC0-08
PV7-1X/40-45RE37MC7-16WH
PV7-1X/10-14RE01MC0-16-P60Q15
PV7-1X/63-71RE07KW0-16WG
PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16
PV7-1X/25-30RE01KD0-16
PV7-1X/10-14RE01MC5-16WH
PV7-1X/10-20RE01MC0-10-P45
PV7-1X/16-20RE01MW0-16
PV7-1X/16-30RE01MD0-08
PV7-1X/25-45RE01MD0-08
PV7-1X/100-118RE07MC7-16
PV7-1X/10-14RE01MC0-16-P90
PV7-1X/16-20RE01MC7-16WH
Frequently Asked Questions
What kind of protection does Rexroth PV7 vane pump have for the system?

It is equipped with a pressure relief valve to protect the entire hydraulic system from overpressure damage.

Can Rexroth PV7 vane pump work in intermittent operation mode?

Yes, it works stably in both intermittent and continuous operation modes.

Is Rexroth PV7 vane pump suitable for material handling equipment?

Yes, it is widely used in material handling equipment hydraulic systems due to its reliability.

How about the wear resistance of Rexroth PV7 vane pump?

It has low wear and tear, which helps reduce the replacement costs of components.

Does Rexroth PV7 vane pump need special startup procedures?

No, thanks to its good self-priming capability, it can start quickly without complex procedures.
