PV7-2X/20-20RA01MA0-10-A480 PV7-1X/06-10RA01MA0-10-C3.1 PV7-2X/20-20RA01MA0-10-P100 German vane pump PV7 Rexroth series hydraulic oil pump, original imported stock in stock
PV7-2X/20-20RA01MA0-10-A480 PV7-1X/06-10RA01MA0-10-C3.1 PV7-2X/20-20RA01MA0-10-P100 German vane pump PV7 Rexroth series hydraulic oil pump, original imported stock in stock
PV7-2X/20-20RA01MA0-10-A480 PV7-1X/06-10RA01MA0-10-C3.1 PV7-2X/20-20RA01MA0-10-P100 German vane pump PV7 Rexroth series hydraulic oil pump, original imported stock in stock
PV7-2X/20-20RA01MA0-10-A480 PV7-1X/06-10RA01MA0-10-C3.1 PV7-2X/20-20RA01MA0-10-P100 German vane pump PV7 Rexroth series hydraulic oil pump, original imported stock in stock
Specifications
Brand Name :
Rexroth
Model Number :
PV7-2X/20-20RA01MA0-10-A480 PV7-1X/06-10RA01MA0-10-C3.1 PV7-2X/20-20RA01MA0-10-P100
Certifiion :
ISO
Place of Origin :
German
MOQ :
1
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Viscosity Range :
10–1000 mm²/s (operation); 2–1500 mm²/s (start-up)
Fluid Temperature Range :
-20 °C to +80 °C (operation); -40 °C to +90 °C (storage)
Fluid Medium :
Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended)
Weight :
8–15 kg (varies by model and configuration)
Inlet/Outlet Port :
BSPP, BSPT or SAE thread (port size matches displacement)
Description
Product Overview

PV7 Rexroth series hydraulic vane pumps, German manufactured and originally imported. These industrial-grade pumps are designed for demanding hydraulic appliions across various sectors.

Featured Models
PV7-2X/20-20RA01MA0-10-A480
PV7-1X/06-10RA01MA0-10-C3.1
PV7-2X/20-20RA01MA0-10-P100
Technical Specifiions
Attribute egory Parameter Details
Basic Model PV7-1X/06-10RA01MA0-07, PV7-1X/16-20RE01MC0-16, PV7-2X/20-25RE01MD0-10
Displacement Range 6 - 100 cm³/rev
Rated Pressure 210 bar (max pressure: 250 bar)
Rated Speed 1500 - 2800 rpm (max speed: 3600 rpm)
Fluid Medium Mineral hydraulic oil (ISO VG 32, 46, 68 recommended)
Operating Temperature -20°C to +80°C
Shaft Rotation Direction Clockwise (CW) / Counterclockwise (CCW), reversible
Mounting Type Flange mounting (SAE A, SAE B), foot mounting
Shaft Type Splined shaft (SAE spline standard), cylindrical shaft
Seal Type Viton® seal (standard), FKM seal (high-temperature option)
Noise Level ≤ 65 dB(A) at rated speed and pressure
Efficiency Volumetric efficiency ≥ 95%, total efficiency ≥ 90%
Appliion Industrial hydraulic systems, construction machinery, agricultural equipment, machine tools

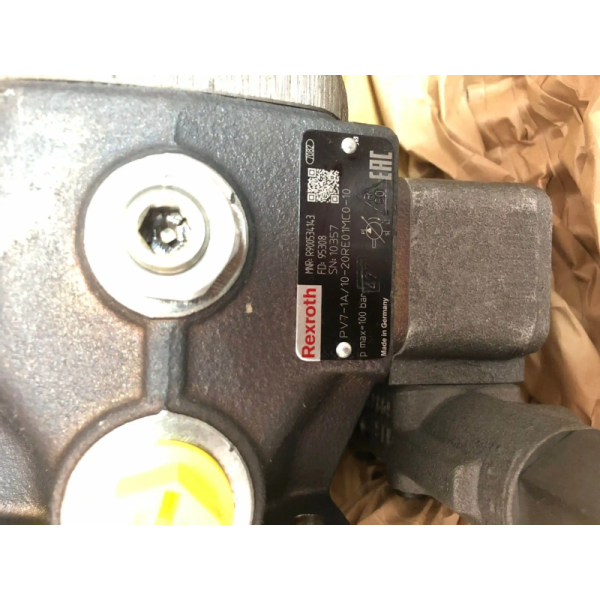

Product Image
PV7-2X/20-20RA01MA0-10-A480 PV7-1X/06-10RA01MA0-10-C3.1 PV7-2X/20-20RA01MA0-10-P100 German vane pump PV7 Rexroth series hydraulic oil pump, original imported stock in stock
Available Model Variants
PV7-1X/06-10RA01MA0-05-P35Q11
PV7-2X/20-25RA01MA0-05-P30Q25
PV7-1X/06-10RA01MA0-05-P40Q11
PV7-2X/20-25RA01MA0-05-P30Q36
PV7-1X/06-10RA01MA0-05-P50Q15
PV7-2X/20-25RA01MA0-05-P45Q35
PV7-1X/06-10RA01MA0-10-P55Q12
PV7-2X/20-25RA01MA0-05-P45Q36
PV7-1X/06-10RA01MA0-10-P65Q12
PV7-2X/20-25RA01MA0-10-P63Q35
PV7-1X/06-10RA01MA0-10-P70Q12
PV7-1X/06-10RA01MA0-05-P15Q08
PV7-1X/06-14RA01MA0-07-P70Q18
PV7-1X/06-10RA01MA0-05-P25Q09
PV7-1X/06-14RA01MA0-04-P30Q19
PV7-1X/06-10RA01MA0-05-P25Q11
PV7-1X/06-10RA01MA0-10-P100Q10
PV7-1X/06-10RA01MA0-05-P35Q09
PV7-1X/63-71RE07MC3-16
PV7-1X/100-118RE07MD3-16
PV7-1X/63-71RE07MW0-16WG
PV7-1X/10-20RE01MD5-10
PV7-1X/25-30RE01MW0-16WG
PV7-1X/40-45RE37MW5-16WG
PV7-1X/100-118RE07MC5-16WG
PV7-1X/63-94RE07MC7-08WG
PV7-1X/40-45RE37MW6-16WH
PV7-1X/100-118RE07MD6-16
PV7-1X/40-45RE37MC5-16WG
PV7-1X/100-118RE07MC0-16
PV7-1X/63-71RE07MD0-16
PV7-1X/40-45RE37MC0-16-P90
PV7-1X/25-30RE01MC0-16-P100Q38
PV7-1X/100-150RE07MC0-08-A464
PV7-1X/100-118RE07MD0-16
PV7-1X/10-14RE01MN0-16
PV7-1X/40-45RE37MC5-16
PV7-1X/100-118RE07MC5-16
PV7-1X/25-30RE01KC3-16
PV7-1X/10-20RE01MC5-10WG
PV7-1X/25-30RE01MW0-16
PV7-1X/16-20RE01MD3-16
PV7-1X/16-20RE01MC0-16-P110
PV7-1X/40-45RE37KD0-16-C3.1
PV7-1X/63-71RE07MC5-16WH
PV7-1X/16-30RE01KC0-08
PV7-1X/10-14RE01MD5-16
PV7-1X/63-71RE07MC6-16
PV7-1X/16-20RE01KD0-16
PV7-1X/10-14RE01MW0-16
PV7-1X/63-71RE07MC0-16-C3.1
PV7-1X/16-30RE01MW0-08WH
PV7-1X/100-150RE07MC0-08-A446
PV7-1X/25-30RE01MC5-16WG
PV7-1X/10-20RE01MC0-10-A497
PV7-1X/100-150RE07KC0-08
PV7-1X/100-150RE07MD5-08
PV7-1X/25-45RE01MC0-08-P25Q50
PV7-1X/40-71RE37MC5-08
PV7-1X/10-14RE01KD0-16
PV7-1X/16-20RE01MC0-16-P120
PV7-1X/100-150RE07MW0-08WH
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
PV7-1X/40-45RE37MC8-16
PV7-1X/16-20RE01MW0-16WH
PV7-1X/16-20RE01MC3-16-P50Q25
PV7-1X/100-118RE07KC0-16
PV7-1X/40-71RE37MC5-08WH
PV7-1X/100-118RE07MC6-16
PV7-1X/40-71RE37MC3-08
PV7-1X/40-71RE37MC7-08WH
PV7-1X/10-14RE01MW0-16WH
PV7-1X/10-20RE01MC3-10-A497
PV7-1X/16-20RE01MC3-16
PV7-1X/16-20RE01MC5-16WH
PV7-1X/63-71RE07MC3-06-A460
PV7-1X/16-30RE01MC5-08WH
PV7-1X/10-14RE01MC0-16-P100
PV7-1X/63-94RE07MC5-08WH
PV7-1X/10-14RE01MC3-16
PV7-1X/40-45RE37MD0-16
PV7-1X/100-118RE07MC7-16WH
PV7-1X/25-45RE01MC5-08WH
PV7-1X/16-20RE01MC0-16
PV7-1X/63-71RE07MC5-16WG
PV7-1X/63-71RE07KC3-16
PV7-1X/10-20RE01MC5-10WH
PV7-1X/16-20RE01MC7-16
PV7-1X/10-14RE01MC7-16
PV7-1X/63-94RE07MC0-08
PV7-1X/16-20RE01MC0-16-P100Q29
PV7-1X/25-30RE01MC0-16-P100Q36
Frequently Asked Questions
How to bleed the PV7 pump system?
Loosen the vent screw, manually rotate the coupling or jog the motor, and stop when bubble-free oil flows out.
What is the recommended no-load running time for PV7 pumps?
5-10 minutes to check vibration, leakage, and temperature rise.
How to adjust the pressure of a direct-acting PV7 pump?
  • Clockwise rotation of the adjusting screw: Increase pressure
  • Counterclockwise rotation: Decrease pressure
How to adjust the flow rate of the PV7 pump?
  • Clockwise rotation of the flow adjusting screw: Decrease flow
  • Counterclockwise rotation: Increase flow
What is the pressure control response time of the PV7 series?
  • Rise time: 20-40ms
  • Fall time: 60-85ms (direct-acting models)
