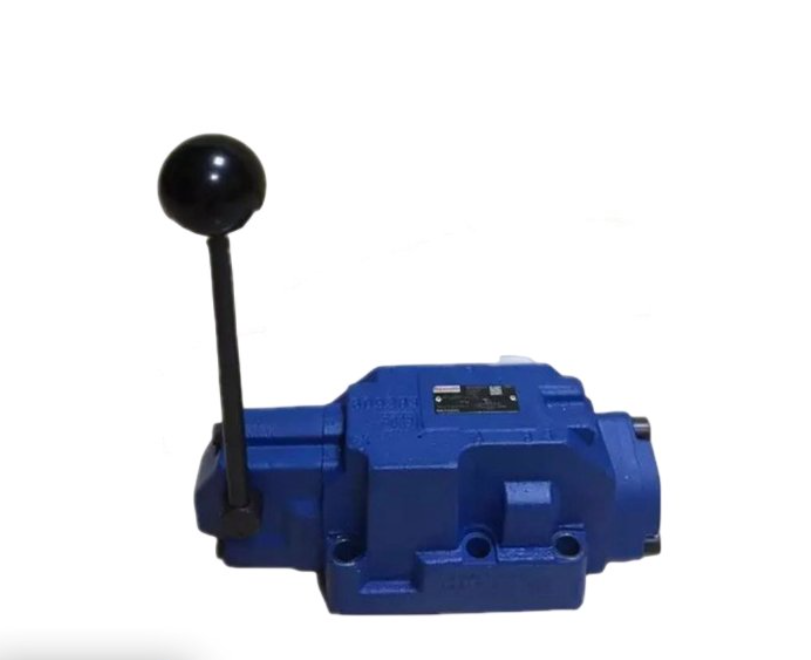

R983030774 4WMM10J3X/F Rexroth manual valve made in Germany
R983030774 4WMM10J3X/F Rexroth manual valve made in Germany
Specifications
Delivery Time :
2 weeks
Spool Configuration​ :
4/3-way​ (P, T, A, B; 3 Positions)
Operating Temperature​ :
-20°C to +70°C​ (NBR seals)
Certification :
ISO
Model Number :
R983030774 4WMM10J3X/F
MOQ :
1
Mounting Style​ :
Subplate Mounting​ (ISO 4401-05-04-0-05)
Packaging Details :
wooden box
Supply Ability :
100
Actuation Type​ :
Manual Lever with Detent (/F)​
Place of Origin :
Germany
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Brand Name :
Rexroth
Max. Tank Pressure (T Port)​ :
160 bar​
Description
R983030774 4WMM10J3X/F Rexroth Manual Valve
High-quality direct-operated directional spool valve with manual lever actuation, manufactured in Germany.
Technical Specifications
General Information
Manufacturer / Model Rexroth, 4WMM Series (Direct-Acting Manual)
Part Number R983030774
Valve Type Direct-Operated Directional Spool Valve (Manual Lever)
Country of Origin Germany
Hydraulic Performance
Nominal Size NG10 (≈CETOP 5 / ISO 4401-05-04-0-05)
Max. Operating Pressure (P, A, B) 315 bar (Standard Series)
Max. Tank Pressure (T Port) 160 bar
Max. Recommended Flow 120 L/min (Peak 160 L/min)
Spool Configuration 4/3-way (P, T, A, B; 3 Positions)
Spool Function J (Center Position: P blocked, A & B connected to T)
Mechanical Interface
Mounting Style Subplate Mounting (ISO 4401-05-04-0-05)
Port Size NG10 (Typically M14x1.5 or SAE #12 O-ring)
Actuation Type Manual Lever with Detent (/F)
Weight Approx. 3.5 - 4 kg
Media & Environment
Seal Material NBR (Standard for mineral oil)
Compatible Fluids Mineral Oils (HL/HLP), HFC (Water Glycol)
Operating Temperature -20 °C to +70°C (NBR seals)
Fluid Viscosity Range 2.8 - 500 mm²/s
Fluid Cleanliness ISO 4406 20/18/15 or cleaner
R983030774 4WMM10J3X/F Rexroth manual valve made in Germany
Related Part Numbers
R900954100 4WRE10E25-2X/G24K4/V
R902650773 4WRE10E25-2X/G24K4V-93
R901048036 4WRE10E3-75-2X/G24K4/V
R900954101 4WRE10E50-2X/G24K4/V
R900954102 4WRE10E75-2X/G24K4/V
R901039213 4WRE10EA25-2X/G24K4/V
R900752971 4WRE10EA50-2X/G24K4/V
R900969351 4WRE10EA75-2X/G24K4/V
R900703186 4WRE10EB50-2X/G24K4/V
R901151585 4WRE10V1-25-2X/G24K4/V
R901415922 4WRE10V1-50-2X/G24K4/M
R901017446 4WRE10V1-50-2X/G24K4/V
R901414444 4WRE10V1-75-2X/G24K4/V
R900954115 4WRE10V25-2X/G24K4/V
R900954116 4WRE10V50-2X/G24K4/V
R901236220 4WRE10V50-2X=G24K4/V
R900954117 4WRE10V75-2X/G24K4/V
R900974152 4WRE10W1-25-2X/G24K4/V
R900954113 4WRE10W1-50-2X/G24K4/V
R900954114 4WRE10W1-75-2X/G24K4/V
R900954105 4WRE10W25-2X/G24K4/V
R900608420 4WRE10W3-75-2X/G24K4/V
R900954106 4WRE10W50-2X/G24K4/V
R900954107 4WRE10W75-2X/G24K4/V
R901436393 4WRE10WA25-2X/G24K4/V
R901086329 4WRE10WA50-2X/G24K4/V
R901030897 4WRE10WA75-2X/G24K4/V
R901339372 4WRE10WB75-2X/G24K4/V
R901031274 4WRE6E04-2X/G24K4/V
R900933478 4WRE6E08-2X/G24K4/V
R900968149 4WRE6E1-08-2X/G24K4/V
R900954093 4WRE6E1-16-2X/G24K4/V
R900954094 4WRE6E1-32-2X/G24K4/V
R900954092 4WRE6E16-2X/G24K4/V
R900926366 4WRE6E32-2X/G24K4/V
R900783105 4WRE6EA08-2X/G24K4/V
R900720198 4WRE6EA16-2X/G24K4/V
R900752799 4WRE6EA32-2X/G24K4/V
R901364823 4WRE6Q2-08-2X/G24K4/V
R900246943 4WRE6V04-2X/G24K4/V
R900954097 4WRE6V08-2X/G24K4/V
R902650793 4WRE6V08-2X/G24K4V-822
R900966805 4WRE6V1-16-2X/G24K4/V
R901403868 4WRE6V16-2X/G24K4/M
R900954098 4WRE6V16-2X/G24K4/V
R902651062 4WRE6V16-2X/G24K4/V-916
R902650794 4WRE6V16-2X/G24K4V-822
R900954099 4WRE6V32-2X/G24K4/V
R901246418 4WRE6W04-2X/G24K4/V
R900941264 4WRE6W08-2X/G24K4/V
R900953729 4WRE6W1-08-2X/G24K4/V
R900954095 4WRE6W1-16-2X/G24K4/V
R901236264 4WRE6W1-16-2X=G24K4/V
R900954096 4WRE6W1-32-2X/G24K4/V
R900775379 4WRE6W1-32-2X/G24K4/V=LB
R900944121 4WRE6W16-2X/G24K4/V
R900773304 4WRE6W16-2X/G24K4/V=LB
R900933480 4WRE6W32-2X/G24K4/V
R901433171 4WRE6W9-32-2X/G24K4/V
R901022178 4WRE6WA08-2X/G24K4/V
R900965434 4WRE6WA16-2X/G24K4/V
R901300969 4WRE6WA16-2X/G24K4/V-303
R901011624 4WRE6WA32-2X/G24K4/V
R902437398 4WRE6V08-2X/G24Z4/V-822
R902437418 4WRE6V16-2X/G24Z4/V-822
R902461723 4WRE6V16-2X/G24Z4/V-916
R902437419 4WRE6V32-2X/G24Z4/V-822
R900958157 4WREE10E1-25-2X/G24K31/A1V
R901268119 4WREE10E1-25-2X/G24K31/A1V-280
R901066667 4WREE10E1-25-2X/G24K31/F1V
R900933076 4WREE10E1-50-2X/G24K31/A1V
R901162016 4WREE10E1-50-2X/G24K31/A1V-280
R901354776 4WREE10E1-50-2X/G24K31/F1M
R900703908 4WREE10E1-50-2X/G24K31/F1V
R901381875 4WREE10E1-75-2X/G24K31/A1M
R900927232 4WREE10E1-75-2X/G24K31/A1V
Frequently Asked Questions
What does the "/F" suffix mean in the model number?
The /F suffix indicates that the valve is equipped with a detent mechanism (ball-and-spring). This allows the lever to be locked into any of its three positions (Left, Center, Right). When you release the lever, it stays in that position. This is different from the spring-centered version (without /F), which automatically returns to center when released.
What is the "J" spool function?
The "J" spool has a specific center position flow path: P (Pressure) is blocked, and A & B (work ports) are connected to T (Tank). This configuration allows the connected actuator (cylinder or motor) to float freely when the valve is in the center position, as both sides are unloaded to the tank. It is commonly used in applications like crane hooks or free-wheeling circuits.
What is the maximum flow rate for this NG10 valve?
The comfortable operating flow is 120 L/min. While it can handle peaks up to 160 L/min, doing so will result in high pressure drops and may require excessive force to shift the lever. For systems consistently above 120 L/min, consider upgrading to an NG16 size valve.
Can this valve be used with water glycol (HFC) or phosphate ester (HFD) fluids?
Yes for HFC, No for HFD with standard seals. The standard NBR seals are compatible with Water Glycol (HFC). However, if you are using Phosphate Ester (HFD) fluids, you must order a variant with FKM (Viton ®) seals, which typically have a /V suffix (e.g., 4WMM10J3X/F/V).
What is the difference between the "3X" and "5X" series?
The 3X (30-series) and 5X (50-series) refer to different design generations. The external mounting dimensions (ISO 4401 NG10) are fully interchangeable. The main differences are internal (spool tolerances, leakage rates). Always confirm spool function compatibility if replacing an existing valve.
