R900423724 DBDS6K1X/200 Direct acting relief valve from Rexroth, Germany
R900423724 DBDS6K1X/200 Direct acting relief valve from Rexroth, Germany
Specifications
Max. Recommended Flow​ :
50 L/min​
Supply Ability :
100
Delivery Time :
2 weeks
Place of Origin :
Germany
Certifiion :
ISO
Model Number :
R900423724 DBDS6K1X/200
MOQ :
1
Nominal Size​ :
NG6​ (≈CETOP 3)
Packaging Details :
wooden box
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Brand Name :
Rexroth
Max. Operating Pressure​ :
400 bar​ (Body Rating)
Pressure Setting Range​ :
Up to 200 bar​ (Spring Code /200)
Valve Type​ :
Direct-Acting Pressure Relief Valve (Screw-in Cartridge, Poppet Type)
Description
R900423724 DBDS6K1X/200 Direct Acting Relief Valve
Product Overview

Direct-acting pressure relief valve from Rexroth, Germany. Screw-in cartridge design with poppet type construction for reliable pressure control in hydraulic systems.

Technical Specifiions
Parameter egory Parameter Specifiion / Description
General Information Manufacturer / Model Rexroth (Germany), DBDS6K1X/200
Part Number R900423724
Valve Type Direct-Acting Pressure Relief Valve (Screw-in Cartridge, Poppet Type)
Performance Parameters Nominal Size NG6 (≈CETOP 3)
Max. Operating Pressure 400 bar (Body Rating)
Pressure Setting Range Up to 200 bar (Spring Code /200)
Max. Recommended Flow 50 L/min
Function Normally Closed (P→T opens at set pressure)
Mechanical Interface Mounting Style Screw-in Cartridge
Cavity Requirement Standard DBD NG6 (M28 ×1.5)
Port Connection G1/4" (or M14×1.5)
Adjustment Type Hexagonal Bushing with Protective Cap
Weight Approx. 0.38 kg
Media & Environment Seal Material NBR (Standard for mineral oil)
Compatible Fluids Mineral Oils (HL/HLP), Water Glycol (HFC)
Operating Temperature -20 °C to +70°C (with NBR seals)
Fluid Cleanliness ISO 4406 20/18/15 or cleaner

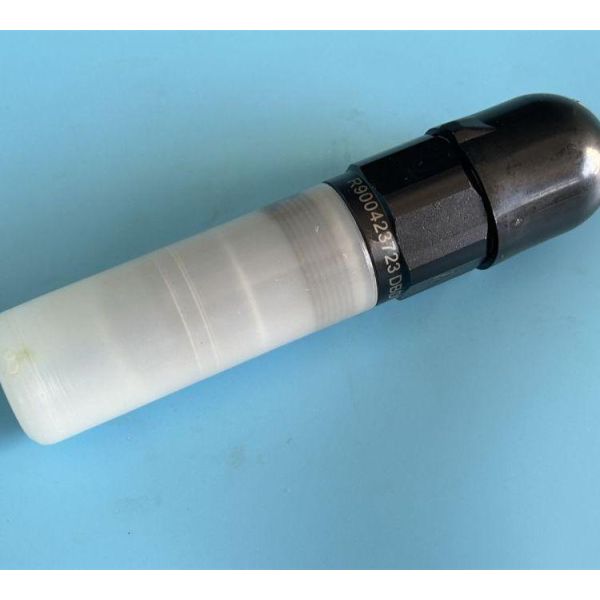

Product Image
R900423724 DBDS6K1X/200 Direct acting relief valve from Rexroth, Germany
Related Part Numbers
DBDH 10G1X/630 R900424189
DBDH 10 P1X/100 R900423739
DBDH 10 P1X/200 R900426901
DBDH 10P1X/315 R900424186
DBDH 20 K1X/25 R900427601
DBDH 20 K1X/50 R900423028
DBDH 20 K1X/100 R900424112
DBDH 20G1X/50 R900424165
DBDH 20G1X/100 R900424108
DBDH 30 K1X/25 R900445875
DBDH 30 K1X/50 R900424193
DBDS 6 K1X/25 K900420245
DBDS 6 K1X/50 R900423727
DBDS 6 K1X/100 R900423723
DBDS 6 K1X/200 R900423724
DBDS 6 K1X/315 R900423725
DBDS6K1X/400 R900423726
DBDS6G1X/25 R900423718
DBDS6G1X/50 R900423722
DBDS6G1X/100 R900423717
DBDS6G1X/200 R900423719
DBDS6G1X/315 R900423720
DBDS6G1X/400 R900423721
DBDS6P1X/25 R900429414
DBDS6P1X/50 R900423732
DBDS6P1X/100 R900423728
DBDS 6 P1X/200 R900423729
DBDS6P1X/315 R900423730
DBDS6P1X/400 R90Q423731
DBDS 10 K1X/25 R900420276
DBDS 10 K1X/50 R900424153
DBDS 10 K1X/100 R900424147
DBDS 10 K1X/200 R900424149
DBDS 10 K1X/315 R900424150
DBDS 10 K1X/400 R900424152
DBDS 10 K1X/630 R900427601
DBDS 10G1X/25 R900423743
DBDS 10G1X/50 R900424745
DBDS 10G1X/100 R900424738
DBDS 10G1X/200 R900424140
DBDS 10G1X/315 R900424742
DBDS 10G1X/400 R900424744
DDDS 10 P1X/25 R900426905
DBDS 10 P1X/100 R900424155
DBDS 10 P1X/315 R900424158
DBDS 10 P1X/400 R900425660
DBDS 15G1X/100 R900424162
DBDS 15G1X/200 R900424163
DBDS 15G1X/315 R900424165
DBDS 20 K1X/25 R900422542
DBDS 20 K1X/50 R900424205
DBDS 20 K1X/100 R900424267
DBDS 20 K1X/315 R900424271
DBDS 20 K1X/400 R900424203
DBDS20G1X/25 R900422544
DBDS20G1X/50 R900424276
DBDS20G1X/100 R900424170
DBDS20G1X/200 R900424172
DBDS20G1X/315 R900424174
DBDS 20 P1X/100 R900424274
DBDS 20 P1X/200 R900424277
DBDS 20 P1X/315 R900424278
Frequently Asked Questions
Q1: What does the "/200" suffix mean? Can I adjust it to 250 bar?
The "/200" indies the valve is equipped with a spring calibrated for a maximum setting of 200 bar. While the valve body is rated for 400 bar, the spring in this specific model is not designed for higher pressures. Do not attempt to set it above 200 bar, as it will not function correctly and may damage the valve. For higher pressures, select a model like DBDS6K1X/315 or /400.
Q2: What is the correct installation cavity and torque?
You must use a standard DBD NG6 (M28 ×1.5) threaded cavity. Using an incorrect cavity will cause leakage or malfunction. The recommended tightening torque is 50 ±5 Nm. Over-tightening can damage the threads or seals, while under-tightening will cause leaks.
Q3: How does backpressure on the T (tank) port affect the valve?
Backpressure is additive. Any pressure at the T-port is directly added to the pressure required to open the valve. For example, if the valve is set to 150 bar and the T-port has 20 bar of backpressure, the system will relieve at approximately 170 bar. Ensure the total pressure (set pressure + backpressure) does not exceed the valve's 400 bar maximum rating.
Q4: Why is the valve chattering or oscillating near the set pressure?
Chatter is common with direct-acting valves at high flows. Primary causes are:
  • Excessive Flow: The NG6 size is optimized for flows up to 50 L/min. If your flow is higher, consider an NG10 valve.
  • High Tank Backpressure: Unstable or high backpressure disrupts the poppet's stability.
  • Contamination: Dirt can cause the poppet to stick and then release erratically.
Q5: Can I use this valve with phosphate ester (HFD) fluid?
No, not with the standard version. The standard R900423724 has NBR seals, which are not compatible with phosphate ester (HFD) fluids. For HFD fluids, you must order a variant with FKM (Viton®) seals, which typically have a /V suffix (e.g., DBDS6K1X/200V).
