R900590334 DB10-2-5X/315 German Rexroth overflow valve
R900590334 DB10-2-5X/315 German Rexroth overflow valve
Specifications
MOQ :
1
Certification :
ISO
Place of Origin :
German
Valve Type :
Pilot-operated (two-stage) pressure relief valve
Max. Operating Pressure (P / X port) :
350 bar
Model Number :
R900590334 DB10-2-5X/315
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Nominal Size (NG) :
10 — subplate mounting per ISO 6264 (NG10 / DIN 24340 Form A)
Packaging Details :
wooden box
Model :
DB 10 - 2 - 5X / 315
Brand Name :
Rexroth
Component Series :
5X (series 50–59, mounting/interchangeable within 5X range)
Description
R900590334 DB10-2-5X/315 German Rexroth Overflow Valve
Product Overview

The DB10-2-5X/315 is a pilot-operated two-stage pressure relief valve from German manufacturer Rexroth, designed for precise pressure control in hydraulic systems with maximum operating pressures up to 350 bar.

Technical Specifications
ParameterValue
Part NumberR900590334
ModelDB 10 - 2 - 5X / 315
Valve TypePilot-operated (two-stage) pressure relief valve
Nominal Size (NG)10 – subplate mounting per ISO 6264 (NG10 / DIN 24340 Form A)
Adjustment TypeHexagon socket sleeve with protective cap ("2" = Allen key adjustable under cap)
Component Series5X (series 50-59, mounting/interchangeable within 5X range)
Max. Adjustable Relief Pressure315 bar (adjustment range typically 4-315 bar)
Max. Operating Pressure (P / X port)350 bar
Max. Operating Pressure (T port)315 bar
Max. Flow Rate (Qmax)approx. 250 L/min (subplate mounted)
Ports2 (P → T, Pressure to Tank)
Pilot Oil Supply / DrainInternal pilot supply, internal pilot drain (standard DB type)
Seal MaterialNBR (standard, code omitted = NBR, for mineral oil & HFC)
Hydraulic FluidMineral oil HL, HLP per DIN 51524; HFC (water-glycol); HLPD, HVLP, HVLPD
Fluid Temperature Range-30 °C to +80 °C (NBR seals)
Viscosity Range10-800 mm²/s
Weight (approx.)3.06 kg
Body MaterialCast iron / steel, zinc-plated

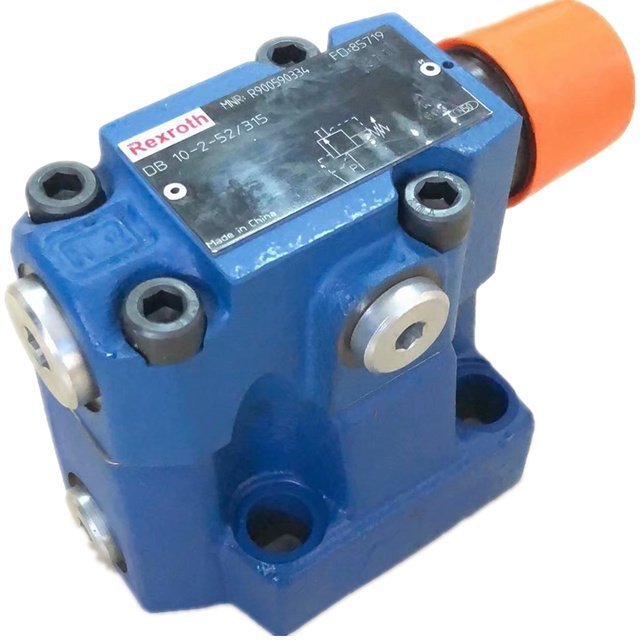

Product Image
R900590334 DB10-2-5X/315 German Rexroth overflow valve
Compatible Part Numbers
R900955032 DBW10A1-5X/50-6EG24N9K4
R901080866 DBW10A1-5X/50-6EW230N9K4
R901075331 DBW10A1-5X/100-6EG24N9K4
R900778046 DBW10A1-5X/100-6EW230N9K4
R900936408 DBW10A1-5X/100S6EG24N9K4R12
R900768339 DBW10A1-5X/100S6EW230N9K4R12
R900978199 DBW10A1-5X/100U6EG24N9K4
R900731691 DBW10A1-5X/100XYU6EG24N9K4
R900941174 DBW10A1-5X/200-6EG24N9K4
R901014775 DBW10A1-5X/200-6EW230N9K4
R900775538 DBW10A1-5X/200U6EW230N9K4
R900965477 DBW10A1-5X/315-6EG24N9K4
R900969379 DBW10A1-5X/315-6EW230N9K4
R901220053 DBW10A1-5X/315S6EG24N9K4R12
R901019708 DBW10A1-5X/315U6EG24N9K4
R901206203 DBW10A1-5X/315U6EW230N9K4
R901076401 DBW10A1-5X/315Y6EG24N9K4
R900770685 DBW10A1-5X/350-6EG24N9K4
R901081986 DBW10A1-5X/350S6EG24N9K4R12
R900731666 DBW10A2-5X/50-6EG24N9K4
R900709700 DBW10A2-5X/50S6EG24N9K4R12
R900618742 DBW10A2-5X/50YS6EG24N9K4R12
R900966799 DBW10A2-5X/50XY6EW230N9K4
R900948450 DBW10A2-5X/100-6EG24N9K4
R900919570 DBW10A2-5X/100-6EW230N9K4
R900952229 DBW10A2-5X/100U6EG24N9K4
R900744546 DBW10A2-5X/100U6EW230N9K4
R900936176 DBW10A2-5X/100U6EW230N9K4V
R900967954 DBW10A2-5X/100X6EG24N9K4
R900778745 DBW10A2-5X/100Y6EG24N9K4
R900714015 DBW10A2-5X/100YU6EG24N9K4
R900955622 DBW10A2-5X/200-6EG24NK4
R900926249 DBW10A2-5X/200-6EG24N9K4
R900934197 DBW10A2-5X/200-6EG24N9K4V
R900708837 DBW10A2-5X/200-6EW230N9K4
R900618747 DBW10A2-5X/200S6EG24N9K4R12
R900961079 DBW10A2-5X/200S6EW230N9K4R12V
R901075701 DBW10A2-5X/200U6EG24N9K4
R901043847 DBW10A2-5X/200U6EW230N9K4
R900971685 DBW10A2-5X/200X6EG24NK4
R900971455 DBW10A2-5X/200X6EG24N9K4
R901086790 DBW10A2-5X/200X6EW230N9K4
R900909516 DBW10A2-5X/200Y6EG24N9K4
R900916162 DBW10A2-5X/200Y6EW230N9K4
R900721105 DBW10A2-5X/200YS6EG24N9K4R12
R900758546 DBW10A2-5X/200YS6EG24N9K4R12V
R901120385 DBW10A2-5X/200YU6EG24N9K4
R900941213 DBW10A2-5X/200XY6EG24N9K4
R900926054 DBW10A2-5X/315-6EG24N9K4
R900958973 DBW10A2-5X/315-6EG24N9K4V
R900922377 DBW10A2-5X/315-6EW230N9K4
R900935532 DBW10A2-5X/315S6EG24N9K4R12
R900954472 DBW10A2-5X/315S6EG24N9K4R12V
R901130713 DBW10A2-5X/315S6EW230N9K4R12
R900781325 DBW10A2-5X/315U6EG24NK4
R900741804 DBW10A2-5X/315U6EG24N9K4
R900772250 DBW10A2-5X/315U6EW230N9K4
R901243992 DBW10A2-5X/315US6EG24N9K4R12
R900726914 DBW10A2-5X/315X6EG24N9K4
R900920436 DBW10A2-5X/315Y6EG24N9K4
R900956639 DBW10A2-5X/315Y6EG24N9K4V
R900937506 DBW10A2-5X/315Y6EW230N9K4
R900765091 DBW10A2-5X/315YS6EG24N9K4R12
R900964379 DBW10A2-5X/315XY6EG24N9K4
R900930684 DBW10A2-5X/350-6EG24NK4
R900974700 DBW10A2-5X/350-6EG24N9K4
Frequently Asked Questions
Is DB10-2-5X/315 direct-acting or pilot-operated?
It is a pilot-operated (two-stage) relief valve. A small direct-acting pilot valve controls pressure over the main stage spool, giving better pressure stability and lower pressure override at high flow compared to a direct-acting valve of the same size.
What does "2 - 5X / 315" mean in the model?
  • 2 = adjustment type: hexagon socket with protective cap (Allen key adjustable)
  • 5X = component series index 5X (dimensions fixed within series 50-59)
  • /315 = pressure stage, maximum adjustable relief pressure = 315 bar (adjustable roughly 4-315 bar)
How do I adjust the relief pressure?
Depressurize the system, remove the protective cap, turn the internal setscrew with an Allen key – clockwise to increase, counterclockwise to decrease. Reinstall the cap and verify with a pressure gauge at the P-port. Factory preset is typically near the low end of the range; always adjust on-site.
Which subplate is required?
Use a standard NG10 (Size 10) subplate per ISO 6264 with P and T ports. The valve mounts via four M10 bolts (tightening torque approx. 35-40 N*m). Subplate port threads are commonly G 1/2" BSP or M18×1.5. Optional port X (pilot remote control) and Y (external pilot drain) are available on the valve body if remote control or external drain is needed.
What is the difference between internal and external pilot drain?
This model has internal pilot drain (standard DB type) – pilot oil returns to tank via the T-port internally. If there is significant backpressure on T, consider the DB…Y version (external pilot drain to tank) to prevent backpressure from affecting the set pressure.
Common fault symptoms & causes?
  • Pressure won't reach set value / unstable: contaminated pilot orifice/nozzle, wrong pressure stage, excessive T-backpressure (on internal drain version), or broken pilot spring
  • Slow response / pressure creep: clogged pilot line/nozzle, air in pilot circuit
  • External leak / dribble: damaged O-ring on mounting face, contaminated pilot seat – check subplate flatness and O-ring condition
  • Chatter: air in the system, excessively long pilot lines if remotely connected, or flow near Qmax – bleed air and verify proper subplate installation
Fluid & seal compatibility?
Standard NBR seals suit mineral oil (HL/HLP) and HFC (water-glycol). For HEES/HETG biodegradable oils or HFD phosphate ester, FKM (Viton) seals are required – order the "V" seal variant if needed.
