Specifications
Supply Ability :
500 pcs/month
Rope Length :
100M-500M
Usage :
Carry heavy goods
Model Number :
JK
Max. Cap :
30 ton
MOQ :
1 pc
Delivery Time :
15 working days
Product Type :
Wire rope
Oem Service :
Available
Payment Terms :
L/C,T/T,Western Union
Application :
Australia construction industry
Price :
Negotiable
Control Type :
Electrical box
Certification :
CE
Min. Cap :
0.5 ton
Brand Name :
JCYC
Product :
JK 5 ton electric winch
Place of Origin :
China
Lifting System :
electric motor
Packaging Details :
Carton
Model :
JK
Description

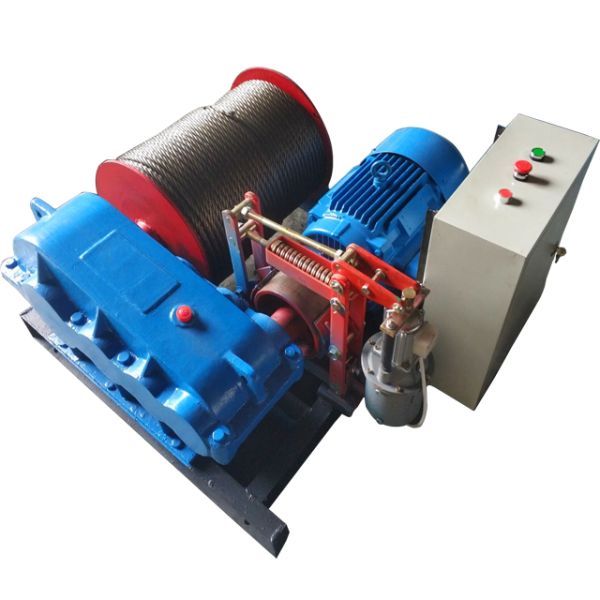

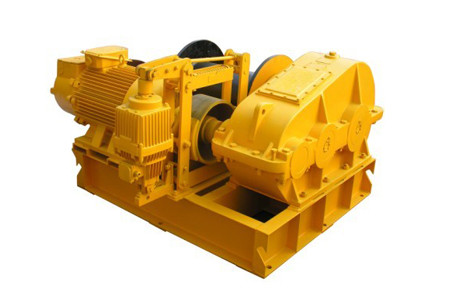

Heavy Duty Electric Winch 10 Ton Capacity with High Speed Motor for Marine and Construction

The JK 10 Ton Electric Winch is primarily designed for hoisting, pulling, and loading or unloading heavy materials. It is suitable for mounting and dismounting large and medium-sized concrete and steel structures, as well as machinery equipment. Additionally, it can serve as the lifting mechanism for various hoisting machinery applications.

Key Features
  • High-Speed Operation: Working speeds of 20-36 m/min for efficient lifting and pulling
  • Orderly Rope Arrangement: Ensures safe and reliable wire rope winding
  • Smooth Transmission System: Provides stable and efficient power transmission
  • Convenient Maintenance: Easy access to key components for inspection and maintenance
  • Wide Applications: Suitable for bridge building, port construction, shipyard operations, mining, and large-scale industrial projects
  • Custom Design: Customized configurations available according to specific application requirements
Technical Specifications
Model Cable Rated Pull (kg) Cable Rated Speed (m/min) Wire Rope (Φmm) Wire Rope Length (m) Drum (mm) Dia(Φ) Motor Power (kw)
JK0.550030Φ7.750/120Φ140*3002.2
JK1100030Φ9.370/120Φ165*4155.5
JK1.5150030Φ12.580/180Φ219*4507.5
JK2200030Φ12.580/180Φ219*4807.5
JK3300030Φ15.5100/200Φ219*52511
JK5500036Φ19.5250Φ325*62011
JK8800029Φ26300Φ406*80815
JK101000029Φ30350Φ406*90022
JK161600025Φ38400Φ550*100037
JK202000025Φ42450Φ650*130045
JK303000020Φ54450Φ900*150063
Quotation Requirements

To provide an accurate quotation, please provide the following information:

  • Purpose of the winch: lifting or pulling?
  • Intended use location: construction, mine, or marine?
  • Required capacity
  • Rope volume requirements
  • Required rope speed
  • Voltage specifications
  • Any additional requests such as dual speed or extra equipment

Note: The more detailed information provided, the more accurate the quotation will be.
