Specifications
Ambient Temperature :
-25℃∽40℃
Certifications :
CE, ISO
Load Capacity :
1-100 ton
Rope Material :
Steel
Guarantee Time :
12 months
Power :
Electric
Cable Length :
200 meters
Brand Name :
JCYC/OEM
Model Number :
EN818-2 Blackened Lifting Chain
Certification :
CE ISO9001 Manufacturing licence
Place of Origin :
China
MOQ :
2 pcs
Price :
negotiable
Payment Terms :
Western Union,L/C,T/T
Supply Ability :
80 pcs per month
Delivery Time :
5 working day
Packaging Details :
plywood
Product name :
Electric Recovery Winch
Speed :
30 m/ min
Maximum Lifting Height :
Alternative
Description
Industrial Electric Winch 3 Ton Capacity Heavy Duty Winches For Marine Shipyard And Construction
JK High-Speed Electric Winch

The JK High-Speed Electric Winch is designed for efficient material lifting, pulling, and heavy-duty handling operations. It features a smooth transmission system, reliable braking performance, and orderly rope winding for safe and stable operation.

With a working speed of 20-36 m/min, it is suitable for applications requiring higher lifting and pulling speeds, including bridge construction, port construction, shipyards, mining, civil engineering, and large-scale industrial projects.

Key Features
  • High-Speed Operation: Working speeds of 20-36 m/min for efficient lifting and pulling
  • Orderly Rope Arrangement: Ensures safe and reliable wire rope winding
  • Smooth Transmission System: Provides stable and efficient power transmission
  • Convenient Maintenance: Easy access to key components for inspection and maintenance
  • Wide Applications: Suitable for bridge building, port construction, shipyard operations, mining, and large-scale industrial projects
  • Custom Design: Customized configurations are available according to specific application requirements
Standard Configurations
  • Electric Motor: IP44 protection, suitable for general engineering applications
  • Steel Rope: Available with steel wire rope or synthetic rope, with customizable length and diameter
  • Drum: Cylindrical drum design for efficient rope storage and smooth winding
  • Transmission System: Worm gearbox, spur gearbox, or planetary gearbox options
  • Brake System: Motor brake, transmission brake, or drum brake options available
  • Control System: Standard control box with UP/DOWN push buttons and emergency stop; wireless remote control available as an option
General Specifications
Item Specification
Loading Capacity 0.5-200 t
Rope Capacity 10-2,000 m
Working Speed 20-36 m/min
Power Supply 220-690 V, 50/60 Hz, 3 Phase
Detailed Model Specifications
Model Cable Rated Pull (kg) Cable Rated Speed (m/min) Wire Rope (Φmm) Wire Rope Length (m) Drum (mm) Dia(Φ) Motor Power (kw)
JK0.5 500 30 Φ7.7 50/120 Φ140*300 2.2
JK1 1000 30 Φ9.3 70/120 Φ165*415 5.5
JK1.5 1500 30 Φ12.5 80/180 Φ219*450 7.5
JK2 2000 30 Φ12.5 80/180 Φ219*480 7.5
JK3 3000 30 Φ15.5 100/200 Φ219*525 11
JK5 5000 36 Φ19.5 250 Φ325*620 11
JK8 8000 29 Φ26 300 Φ406*808 15
JK10 10000 29 Φ30 350 Φ406*900 22
JK16 16000 25 Φ38 400 Φ550*1000 37
JK20 20000 25 Φ42 450 Φ650*1300 45
JK30 30000 20 Φ54 450 Φ900*1500 63

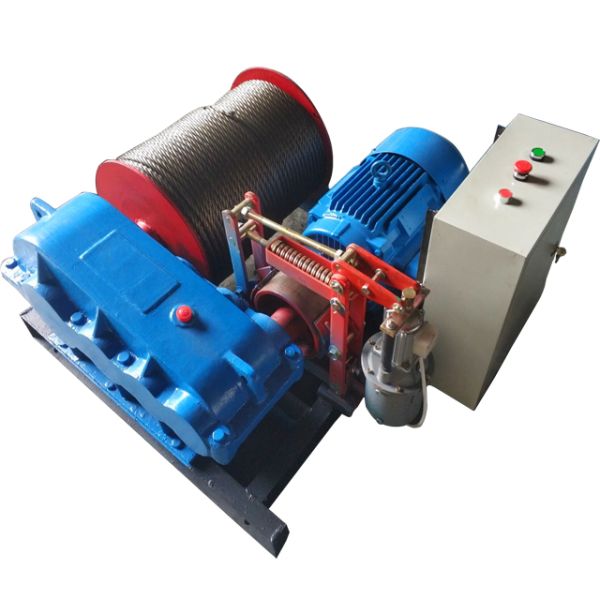

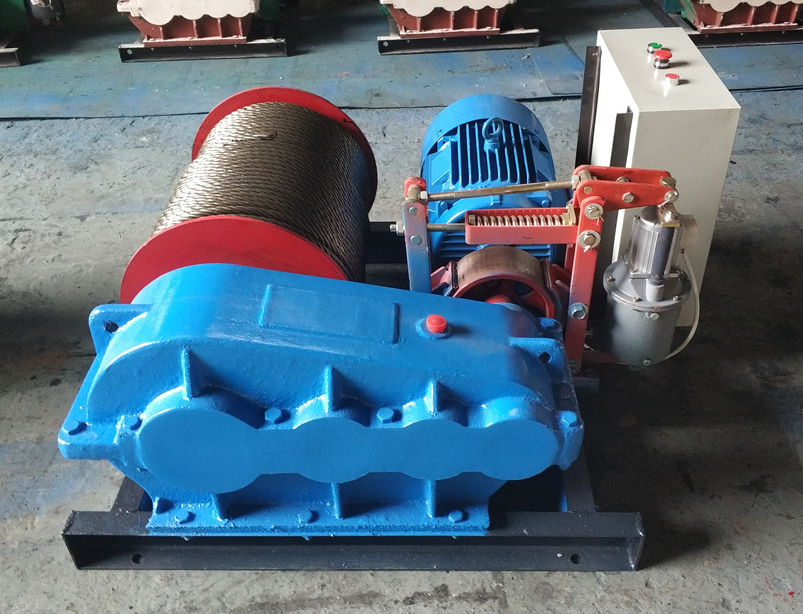

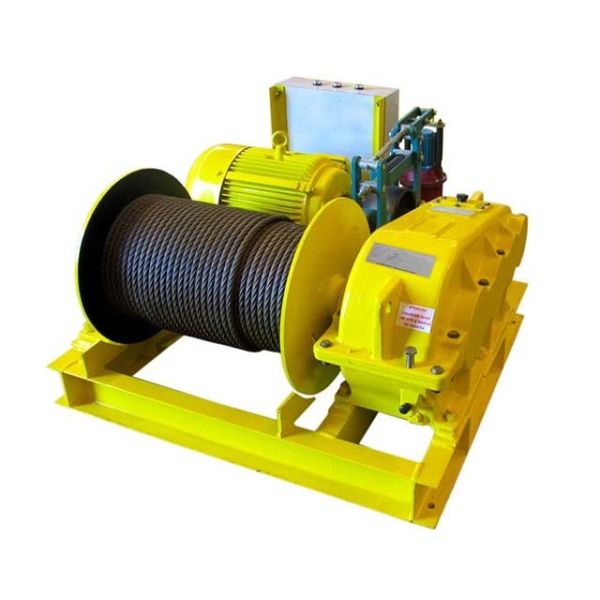

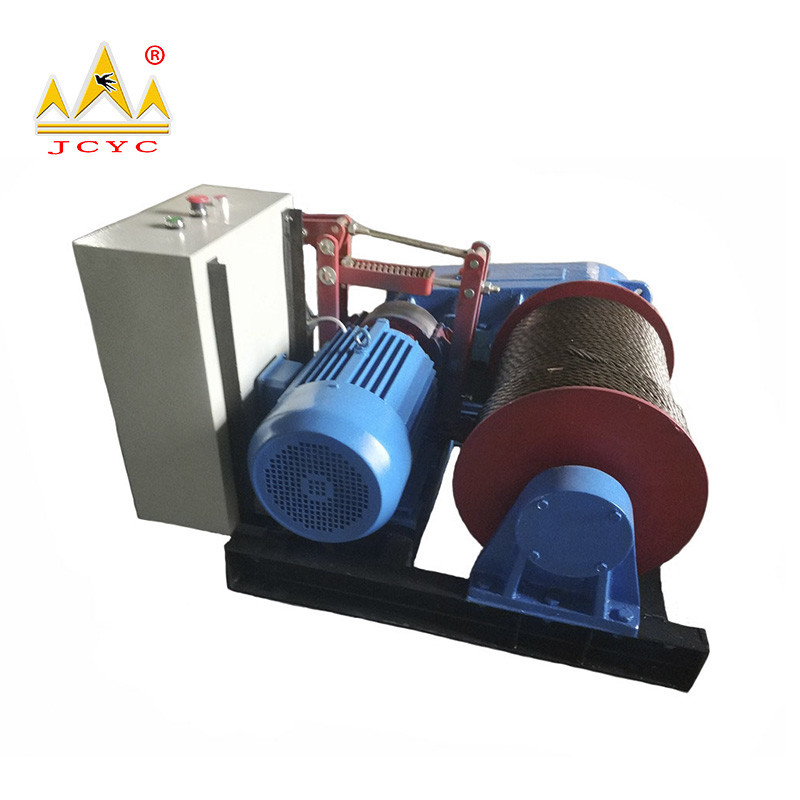

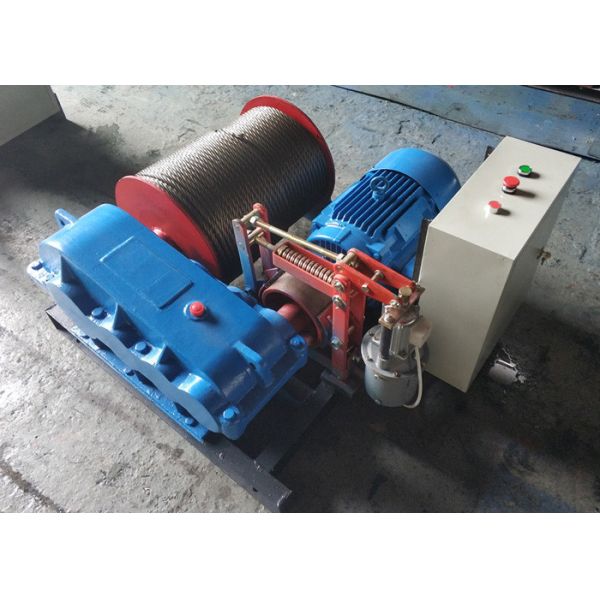

Product Images
Industrial Electric Winch 3 Ton Capacity Heavy Duty Winches For Marine Shipyard And Construction
Industrial Electric Winch 3 Ton Capacity Heavy Duty Winches For Marine Shipyard And Construction
Industrial Electric Winch 3 Ton Capacity Heavy Duty Winches For Marine Shipyard And Construction
Industrial Electric Winch 3 Ton Capacity Heavy Duty Winches For Marine Shipyard And Construction
Industrial Electric Winch 3 Ton Capacity Heavy Duty Winches For Marine Shipyard And Construction

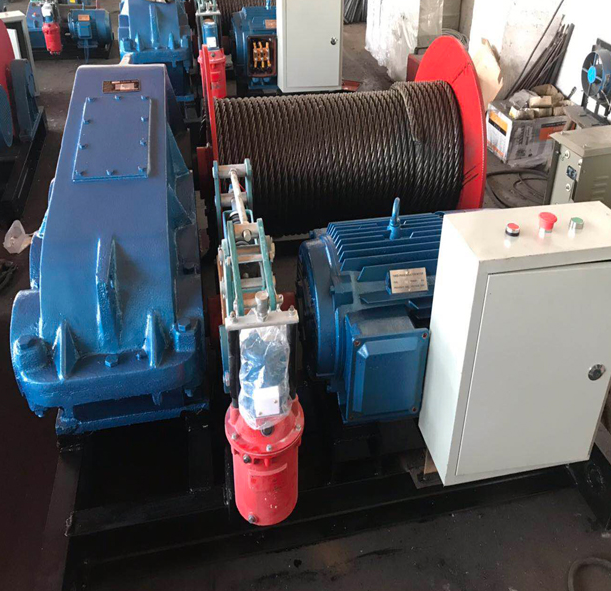

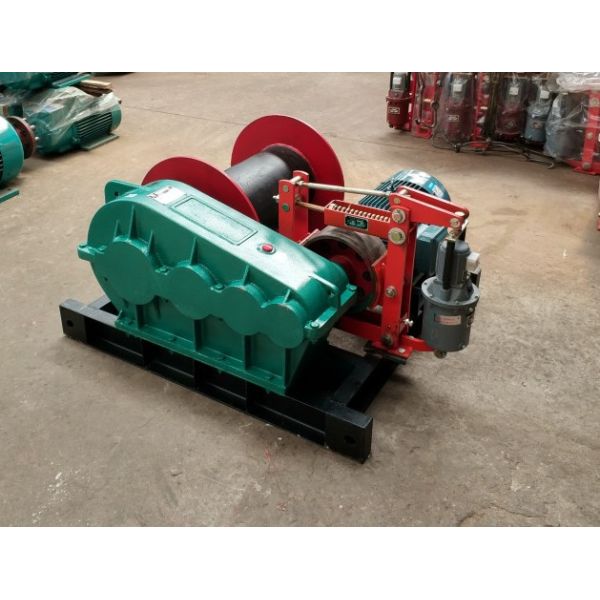

Exhibition Display
Industrial Electric Winch 3 Ton Capacity Heavy Duty Winches For Marine Shipyard And Construction
Industrial Electric Winch 3 Ton Capacity Heavy Duty Winches For Marine Shipyard And Construction
