Specifications
Brand Name :
JCYC
Model Number :
DY
Certification :
CE
Place of Origin :
CHINA
MOQ :
2 pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
30 pcs / week
Delivery Time :
3 working days
Packaging Details :
plywood
Product :
1 Ton Stage Electric Hoist
Warranty :
1 Year
Usage :
Stage show
Power source :
Electric
Sling type :
Chain
Lift speed :
4m/min
Maximum lifting weight :
2t
Maximum lifting height :
30m
Description

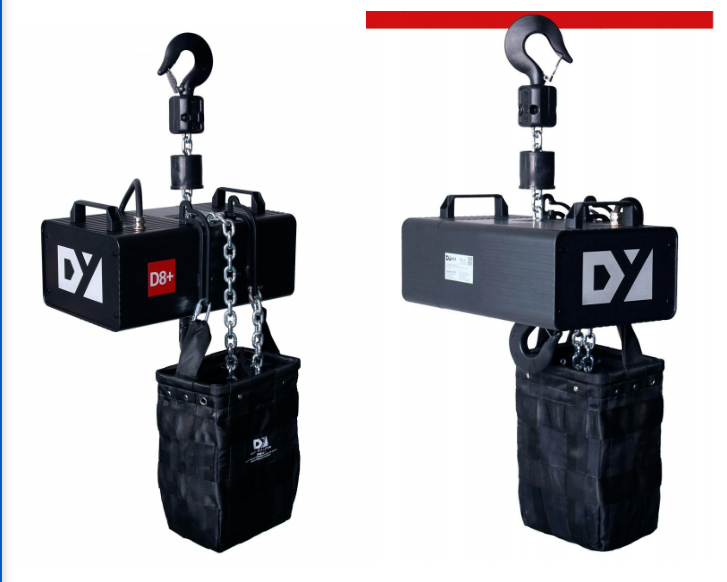

1 Ton Electric Chain Hoists for Stage with Double Brake Entertainment
The Stage Electric Chain Hoist is engineered specifically for stage performances, events, and entertainment applications. It features an intelligent numerical control system for precise positioning and smooth operation, combined with high-strength manganese steel chain for superior load capacity and durability. The aviation-grade aluminum housing ensures a lightweight yet robust structure, facilitating easy installation and handling.
Key Features
  • Independent dual electromagnetic brakes for maximum safety
  • Waterproof lighting system for stage applications
  • Intelligent numerical control for precise positioning
  • High-strength manganese steel chain
  • Aviation-grade aluminum alloy housing
  • Low noise operation (≤ 55 dB)
  • Variable speed lifting (0-7 m/min)
  • IP55 protection class

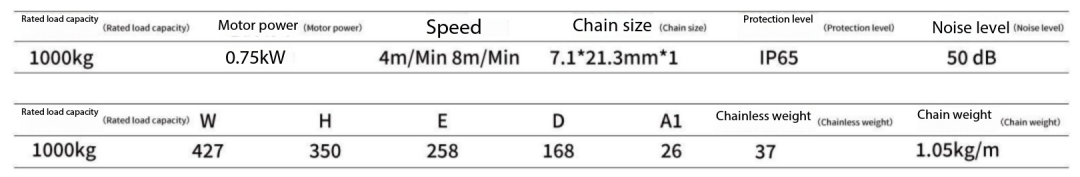

Technical Specifications
Capacity 1000 kg

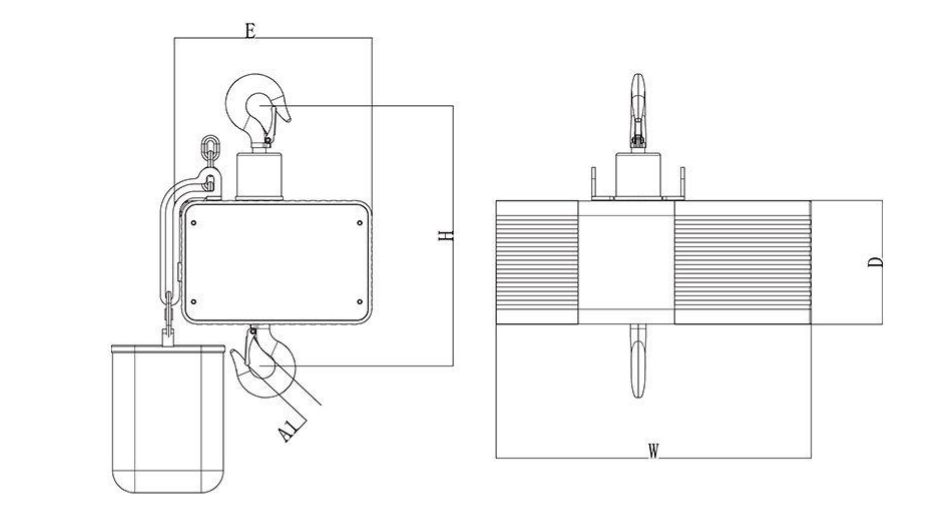

Product Dimensions 727 × 252 × 185 mm
Net Weight 44 kg
Housing Material Aviation-grade aluminum alloy
Chain Length 20 meters
Chain Brand Japan FEC imported chain
Chain Specification 7.1 × 21 mm
Safety Factor (Breaking Strength) 10×
Chain Falls 1
Brake System Independent dual electromagnetic brakes
Noise Level ≤ 55 dB
Lifting Speed 0-7 m/min (variable speed)
Protection Class IP55
Motor Type Servo drive motor
Standard Power Supply 220V / 3 Phase / 50Hz
Duty Cycle 60% JC
Motor Power 3 kW
Motor Speed 0-2800 rpm
Upper & Lower Travel Limits 4 electronic limit switches
Repeat Positioning Accuracy ±0.1 mm
Safety Standard Complies with C1 safety level
Product Images
1 Ton Electric Chain Hoists for stage With double brake Entertainment
1 Ton Electric Chain Hoists for stage With double brake Entertainment
1 Ton Electric Chain Hoists for stage With double brake Entertainment
1 Ton Electric Chain Hoists for stage With double brake Entertainment
1 Ton Electric Chain Hoists for stage With double brake Entertainment
1 Ton Electric Chain Hoists for stage With double brake Entertainment
Manufacturer Profile
1 Ton Electric Chain Hoists for stage With double brake Entertainment
Industry Exhibitions
1 Ton Electric Chain Hoists for stage With double brake Entertainment
1 Ton Electric Chain Hoists for stage With double brake Entertainment
