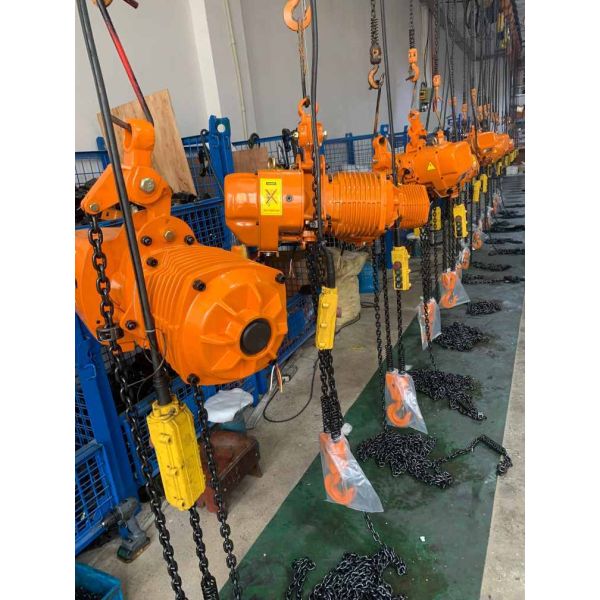

2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch
2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch
2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch
2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch
2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch
2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch
2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch
2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch
Specifications
Brand Name :
JCYC
Model Number :
SY
Certification :
CE & ISO
Place of Origin :
Chongqing China
MOQ :
1 set
Price :
398-980USD
Payment Terms :
T/T
Supply Ability :
500 sets per month
Delivery Time :
5 working days
Packaging Details :
standard export cases
Product name :
Heavy Duty Electric Chain Hoist
Type :
Hook/trolley/low headroom type
Capacity :
0.5t ~ 35t
Color :
As your request
Sling type :
Chain sling
Lifting height :
3-18 meters
Power supply :
220-440V, 50/60HZ, 3Phase
Description
2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch
Key Features
  • Brand New Configuration! The standard configuration includes phase sequence transformer, contactor, and limit switch, ensuring safer operation.
  • Powerful Motor 100% pure copper motor, offering high power, quick heat dissipation, and a long service life. Customizable chain length.
  • G80 Manganese Steel Chain Made of Grade 80 high-strength manganese steel, providing excellent tensile strength, durability, and enhanced safety.
  • Handheld Switch Clear buttons for easy operation, with emergency stop and start buttons for added safety. Wireless remote control option available.
  • Specially Designed Hook Made from high-quality alloy steel, forged and heat-treated to increase strength and toughness. Includes safety latch for safer lifting.
Technical Parameters
Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Lifting Motor Running Motor I-Beam(mm)
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min)
SY-A0.5-1 0.5 3-9 6.8 12.2 0.75 1440 220-440V 50/60HZ 3Phase 0.12 1440 58-130
SY-A1-1 1 3-9 6.6 10/20 1.5 1440 0.4 1440 80-160
SY-A1-2 1 3-9 3.4 10/20 0.75 1440 0.4 1440 80-160
SY-A2-1 2 3-9 6.6 10/20 3.0 1440 0.4 1440 82-178
SY-A2-2 2 3-9 3.3 10/20 1.5 1440 0.4 1440 82-178
SY-A3-1 3 3-9 5.4 10/20 3.0 1440 0.4 1440 100-180
SY-A3-2 3 3-9 4.4 11/21 3.0 1440 0.4 1440 100-178
SY-A3-3 3 3-9 2.4 11/21 1.5 1440 0.4 1440 110-178
SY-A5-2 5 3-9 2.7 10/20 3.0 1440 0.75 1440 110-180
SY-A7.5-3 7.5 3-9 1.8 10/20 3*2 1440 0.75 1440 120-180
SY-A10-4 10 3-9 2.7 10/20 3*2 1440 0.75 1440 150-202
SY-A15-6 15 3-9 1.9 10/20 3*2 1440 0.75*2 1440 150-220
SY-A20-8 20 3-9 1.4 10/20 3*2 1440 0.75*2 1440 150-220
SY-A25-8 25 3-9 1.1 10/20 3*2 1440 0.75*2 1440 150-220
SY-A30-10 30 3-9 0.9 10/20 3*2 1440 0.75*2 1440 150-220
SY-A35-16 35 3-9 0.7 10/20 3*2 1440 0.75*2 1440

150-220

2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch

2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch

2 Ton Heavy Duty Electric Chain Hoist Double Speed With Clutch
