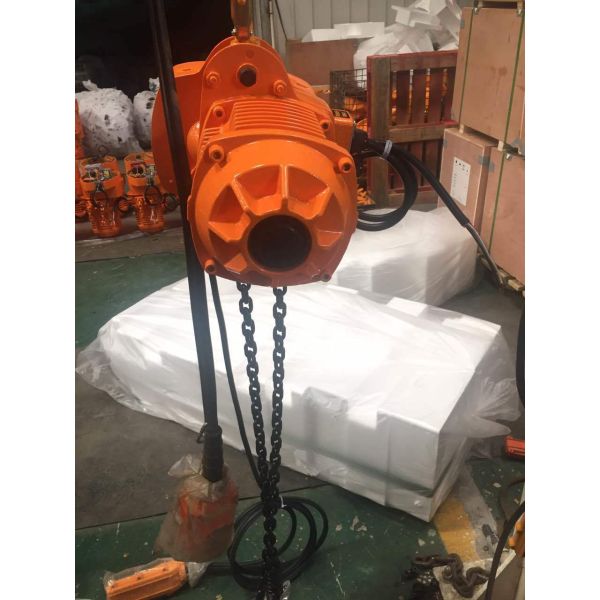

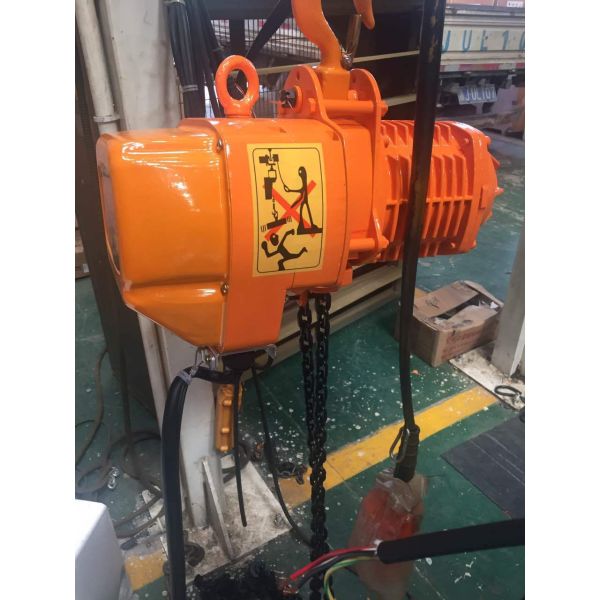

30 Ton Hook Type Trolley Single Phase Chain Hoist
30 Ton Hook Type Trolley Single Phase Chain Hoist
30 Ton Hook Type Trolley Single Phase Chain Hoist
30 Ton Hook Type Trolley Single Phase Chain Hoist
30 Ton Hook Type Trolley Single Phase Chain Hoist
30 Ton Hook Type Trolley Single Phase Chain Hoist
30 Ton Hook Type Trolley Single Phase Chain Hoist
30 Ton Hook Type Trolley Single Phase Chain Hoist
Specifications
Brand Name :
JCYC
Model Number :
SY Series
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 unit
Price :
$1000-$10000
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500 pcs per month
Delivery Time :
Around 10 working days
Packaging Details :
Plywood case
Name :
Electric chain hoist
Capacity :
1ton-35 ton
Lifting height :
Standard 3m
Power supply :
220-440V 50/60HZ
Lifting speed :
Chooseful
Color :
As per request
Description
1T to 30 Ton Single Phase Electric Chain Hoist With Trolley And Hook Type

Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.

Main Advantages
  • High-strength tensile shell or die-casting aluminum case for durability
  • Sealed 2-stage coaxial transmission speed gear mechanism with oil bath lubrication
  • Powder metallurgy clutch for overload protection
  • DC magnetic field brake disc for stable, rapid braking with low noise
Key Features
Lifting Motor

High-performance motor capable of continuous operation for 30 minutes at full load with Grade B insulation.

Lifting Chain
  • Low carbon steel alloy construction for enhanced toughness and wear resistance
  • Hardened surface protects core materials and maintains long-term performance
  • Chain length can be customized to customer requirements
  • Includes chain bag with anti-rust oil to prevent corrosion and extend service life
Double Brake System

Two sets of brake systems significantly reduce failure possibilities while improving safety and heat dissipation.

Variable Speed Gear

Reliable helical gear design reduces meshing impact and vibration, prolonging service life. Alloy steel construction with professional heat treatment ensures maximum strength.

Control Handle

Standard low-voltage (24V-36V) operation protects operators from shock hazards, complying with national safety standards

Product Details:

10t movable electric chain hoist with hook

Model Lifting Capacity(t) Lifting Height(m) Lifting Speed
(m/min)		 Running Speed(
m/min)		 Lifting Motor Running Motor I-Beam(mm)
Power
(kw)		 R.P.
M
(r/min)		 Power Supply Power(kw) R.P.M(r/
min)		 Power Supply
SY-A0.5-1 0.5 3-9 6.8 12.2 0.75 1440 220-440V
50/60HZ
3Phase		 0.12 1440 220-440V 50/60HZ 3Phase 58-130
SY-A1-1 1 3-9 6.6 10/20 1.5 1440 0.4 1440 80-160
SY-A1-2 1 3-9 3.4 10/20 0.75 1440 0.4 1440 80-160
SY-A2-1 2 3-9 6.6 10/20 3.0 1440 0.4 1440 82-178
SY-A2-2 2 3-9 3.3 10/20 1.5 1440 0.4 1440 82-178
SY-A3-1 3 3-9 5.4 10/20 3.0 1440 0.4 1440 100-180
SY-A3-2 3 3-9 4.4 11/21 3.0 1440 0.4 1440 100-178
SY-A3-3 3 3-9 2.4 11/21 1.5 1440 0.4 1440 110-178
SY-A5-2 5 3-9 2.7 10/20 3.0 1440 0.75 1440 110-180
SY-A7.5-3 7.5 3-9 1.8 10/20 3*2 1440 0.75 1440 120-180
SY-A10-4 10 3-9 2.7 10/20 3*2 1440 0.75 1440 150-202
SY-A15-6 15 3-9 1.9 10/20 3*2 1440 0.75*2 1440 150-220
SY-A20-8 20 3-9 1.4 10/20 3*2 1440 0.75*2 1440 150-220
SY-A25-8 25 3-9 1.1 10/20 3*2 1440 0.75*2 1440 150-220
SY-A30-10 30 3-9 0.9 10/20 3*2 1440 0.75*2 1440 150-220
SY-A35-16 35 3-9 0.7 10/20 3*2 1440 0.75*2 1440 150-220

30 Ton Hook Type Trolley Single Phase Chain Hoist

30 Ton Hook Type Trolley Single Phase Chain Hoist

30 Ton Hook Type Trolley Single Phase Chain Hoist
