Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
Specifications
Brand Name :
JCYC/OEM
Model Number :
SY-A
Certification :
CE ISO9001 manufacturing licence
Place of Origin :
CHINA
MOQ :
1 piece
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000pcs per month
Delivery Time :
20-30 working day
Packaging Details :
Wooden Case
Product name :
Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
Capacity :
500kg 1000kg 2000kg 3000kg 5000kg...
Lifting height :
3/6/9/12m
Voltage :
220V/380V 1/3Phase 50/60Hz
Load chain :
G80 chain
Shell :
Aluminum light shell
Description
Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
Overview:

Electric chain hoist is a light and small lifting equipment. It is consisted of motor, transmission mechanism and chain wheel. Beatiful outlooking, Solid and Durable. Inside gears are hot-quenched in order to increase the wear resistance of the gear and toughness. Adopt international advanced technology, fine workmanship, gear wheel tight fit and so on.

Usage:

Widely used in factory, storage, wind-power station, logistics, port and construction field. Usd for lifting or loading. Or lifting heavy objects for working or repairation. It can be controlled by handle on ground or wire(no-wire) remote control. It can be suspended and fixed for using, or matched with monorail electric trolley.

Product technical data:
Model

Lifting Capacity

(t)

Lifting Height

(m)

Lifting Speed

(m/min)

Running Speed

(m/min)

 Lifting Motor Running Motor

I-Beam

(mm)

Power

(kw)

R.P.M

(r/min)

 Power Supply

Power

(kw)

R.P.M

(r/min)

 Power Supply
SY-A0.5-1 0.5 3-9 6.8 12.2 0.75 1440 220-440V 50/60HZ 3Phase 0.12 1440 220-440V 50/60HZ 3Phase 58-130
SY-A1-1 1 3-9 6.6 10/20 1.5 1440 0.4 1440 80-160
SY-A1-2 1 3-9 3.4 10/20 0.75 1440 0.4 1440 80-160
SY-A2-1 2 3-9 6.6 10/20 3.0 1440 0.4 1440 82-178
SY-A2-2 2 3-9 3.3 10/20 1.5 1440 0.4 1440 82-178
SY-A3-1 3 3-9 5.4 10/20 3.0 1440 0.4 1440 100-180
SY-A3-2 3 3-9 4.4 11/21 3.0 1440 0.4 1440 100-178
SY-A3-3 3 3-9 2.4 11/21 1.5 1440 0.4 1440 110-178
SY-A5-2 5 3-9 2.7 10/20 3.0 1440 0.75 1440 110-180
SY-A7.5-3 7.5 3-9 1.8 10/20 3*2 1440 0.75 1440 120-180
SY-A10-4 10 3-9 2.7 10/20 3*2 1440 0.75 1440 150-202
SY-A15-6 15 3-9 1.9 10/20 3*2 1440 0.75*2 1440 150-220
SY-A20-8 20 3-9 1.4 10/20 3*2 1440 0.75*2 1440 150-220
SY-A25-8 25 3-9 1.1 10/20 3*2 1440 0.75*2 1440 150-220
SY-A30-10 30 3-9 0.9 10/20 3*2 1440 0.75*2 1440 150-220
SY-A35-16 35 3-9 0.7 10/20 3*2 1440 0.75*2 1440 150-220

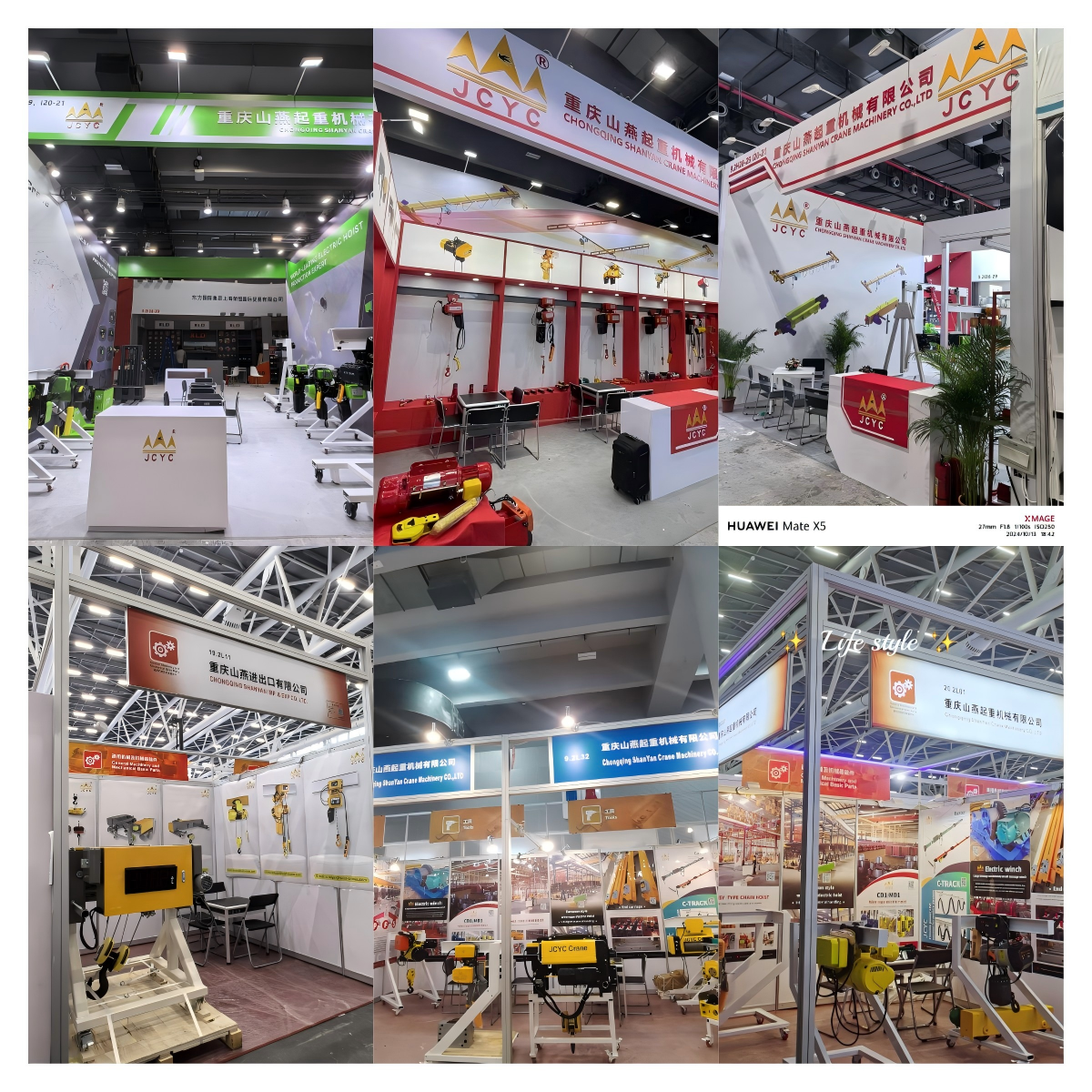

Factory show:

Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V

Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V

Eletric Chain Hoist With Trolley 500kg 1000kg 2000kg 220V 380V
