Specifications
Brand Name :
JCYC/OEM
Model Number :
SY-A
Certification :
CE ISO9001 manufacturing licence
Place of Origin :
CHINA
MOQ :
ONE
Price :
negotiable
Supply Ability :
1000pcs per month
Delivery Time :
30 working day
Packaging Details :
Plywood Case
Product :
0.5t-35t 3m FEC Chain Electric Chain Hoist With Electric Trolley
Voltage :
220V/380V/440V/660V
Capacity :
0.5t-35t
Standard Lifting height :
3m/6m/9m/12m/15m
Speed :
single speed/double speed
Type :
hook type/ trolley type/ low headroom type
Color :
Alternative
Description

0.5t-35t 3m FEC Chain Electric Chain Hoist With Electric Trolley

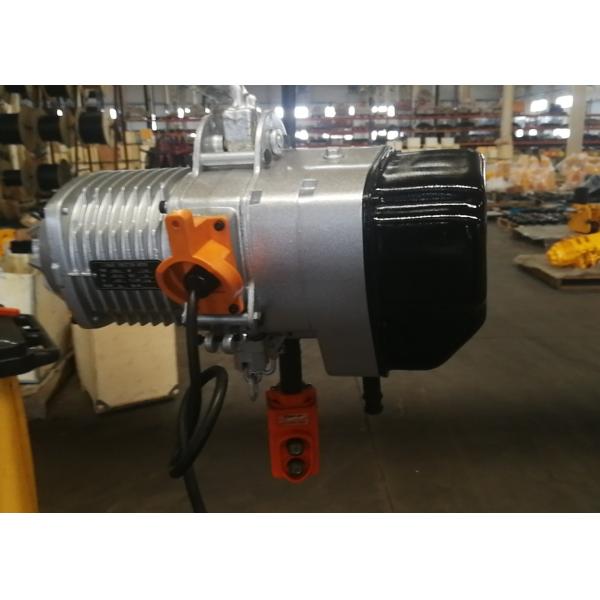

SY-A ELECTRIC CHAIN HOIST
SY Series Model SYA Electric Chain Hoist
Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.
Features and advantages:
1. The main parts of it adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.

Product technical data:

Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Lifting Motor Running Motor I-Beam(mm)
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
SY-A0.5-1 0.5 3-9 6.8 12.2 0.75 1440 220-440V 50/60HZ 3Phase 0.12 1440 220-440V 50/60HZ 3Phase 58-130
SY-A1-1 1 3-9 6.6 10/20 1.5 1440 0.4 1440 80-160
SY-A1-2 1 3-9 3.4 10/20 0.75 1440 0.4 1440 80-160
SY-A2-1 2 3-9 6.6 10/20 3.0 1440 0.4 1440 82-178
SY-A2-2 2 3-9 3.3 10/20 1.5 1440 0.4 1440 82-178
SY-A3-1 3 3-9 5.4 10/20 3.0 1440 0.4 1440 100-180
SY-A3-2 3 3-9 4.4 11/21 3.0 1440 0.4 1440 100-178
SY-A3-3 3 3-9 2.4 11/21 1.5 1440 0.4 1440 110-178
SY-A5-2 5 3-9 2.7 10/20 3.0 1440 0.75 1440 110-180
SY-A7.5-3 7.5 3-9 1.8 10/20 3*2 1440 0.75 1440 120-180
SY-A10-4 10 3-9 2.7 10/20 3*2 1440 0.75 1440 150-202
SY-A15-6 15 3-9 1.9 10/20 3*2 1440 0.75*2 1440 150-220
SY-A20-8 20 3-9 1.4 10/20 3*2 1440 0.75*2 1440 150-220
SY-A25-8 25 3-9 1.1 10/20 3*2 1440 0.75*2 1440 150-220
SY-A30-10 30 3-9 0.9 10/20 3*2 1440 0.75*2 1440 150-220
SY-A35-16 35 3-9 0.7 10/20 3*2 1440 0.75*2 1440 150-220
