Wood Screw Insulator INS085B Black Electric Fence Fittings For Wood Post 7mm Wire Polywire
Wood Screw Insulator INS085B Black Electric Fence Fittings For Wood Post 7mm Wire Polywire
Wood Screw Insulator INS085B Black Electric Fence Fittings For Wood Post 7mm Wire Polywire
Wood Screw Insulator INS085B Black Electric Fence Fittings For Wood Post 7mm Wire Polywire
Wood Screw Insulator INS085B Black Electric Fence Fittings For Wood Post 7mm Wire Polywire
Wood Screw Insulator INS085B Black Electric Fence Fittings For Wood Post 7mm Wire Polywire
Specifications
Conductor Material :
Stainless Steel
Insulation Material :
PP
Name :
Electric Fence Insulators
Package :
400pcs/Case;410,000pcs/20'FCL
Application :
Electric Fence
Color :
Black or custmized
Brand Name :
Terrui
Model Number :
INS085B
Certification :
ISO 9001
Place of Origin :
Shanghai
MOQ :
1000PCS
Price :
discuss
Payment Terms :
T/T
Supply Ability :
1,000,000PCS PER MONTH
Delivery Time :
in 10 days
Packaging Details :
Poly Bag & Carton
Description

Product Overview

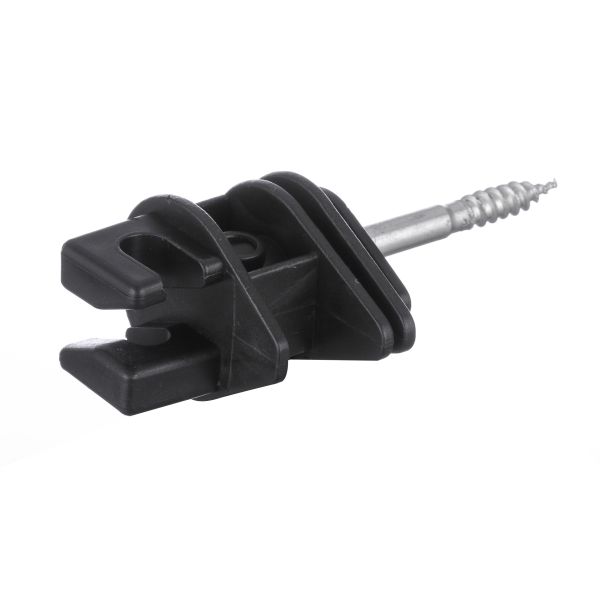

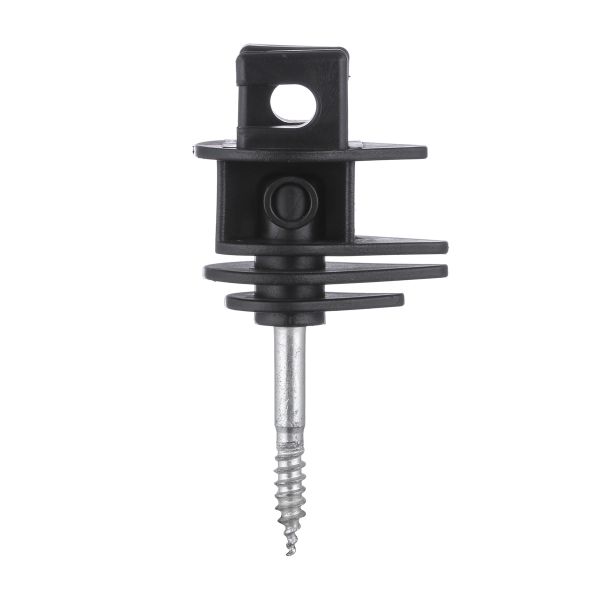

The wood screw insulator INS085B is engineered for heavier conductors on timber post fences. Its larger opening accepts wire, poly wire and poly rope up to 7 mm, accommodating high-tensile lines that carry more load. A 5.8 mm galvanized steel screw secures the black PP body into the post, while the impact-resistant shell stands up to demanding outdoor service.

Key Features

  • Wide 7 mm conductor channel supports high-tensile steel wire and thick poly rope
  • 5.8 mm galvanized steel thread provides reliable anchoring in wood
  • Reinforced body design reduces flex under heavy line tension
  • Impact-resistant plastic shrugs off knocks from livestock and equipment
  • Black color resists UV fading over long outdoor life

Specifications

AttributeDetail
Item CodeINS085B
Product TypeWood Screw Ring Insulator
MaterialPP plastic with galvanized steel screw
ColorBlack
Weight24 g
Conductor CapacityWire, poly wire, poly rope up to 7 mm
Screw Diameter5.8 mm galvanized steel
Package400 pcs per case, 410,000 pcs per 20 ft container
Carton Size40 x 28 x 29 cm
PortShanghai or Ningbo

Where To Use

Best for permanent cattle and deer fences built with high-tensile wire, plus horse paddocks using braided poly rope. The 7 mm opening also suits electric netting connectors and thicker temporary conductors.

Installation Tips

Drive the screw in perpendicular to the post face so the ring aligns with the conductor run. Use a driver socket on large projects to keep fixing depth consistent. Alternative colors, packing and logo options are offered for bulk orders.

Wood Screw Insulator INS085B Black Electric Fence Fittings For Wood Post 7mm Wire PolywireWood Screw Insulator INS085B Black Electric Fence Fittings For Wood Post 7mm Wire Polywire
