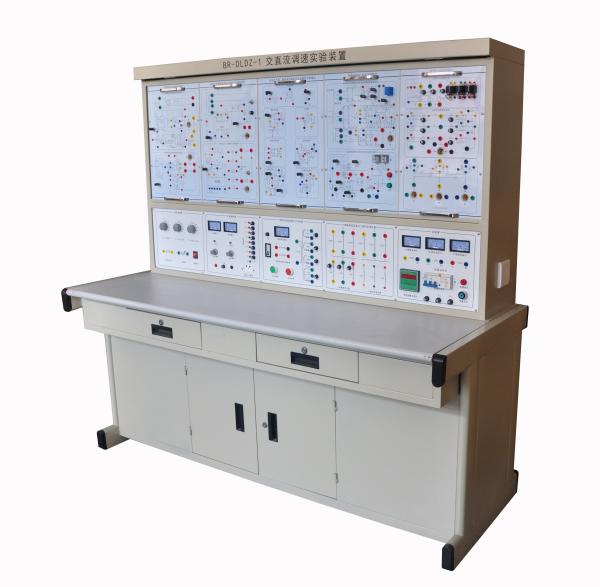

Power Electronics Training Kit Textbook Aligned AI Wiring Simulation For University Labs
Power Electronics Training Kit Textbook Aligned AI Wiring Simulation For University Labs
Specifications
Brand Name :
RM
Model Number :
RM-F114
Certification :
ISO9001/ISO45001/ISO14001,TUV
Place of Origin :
CHINA
MOQ :
1 unit
Payment Terms :
T/T,Western Union
Supply Ability :
1 unit /30 days
Delivery Time :
30-45 work days
Packaging Details :
wooden packing
Suitablefor :
Vocational Schools, Technical Institutes, Engineering Students
Inputvoltagerange :
110V - 240V
Safetyfeatures :
Overload Protection, Short Circuit Protection
Modelnumber :
RM-F104
Powersupply :
220V AC / 50Hz
Productname :
Electrical Training Equipment
Outputvoltage :
0-30V Adjustable
Warrantyperiod :
1Years
Material :
Metal
OEM :
Accept OEM Accept ODM
Description

Power Electronics and DC Speed Control Trainer Textbook Aligned AI Wiring Simulation for University Labs

Power Electronics and DC Speed Control Trainer
Textbook-aligned AI wiring simulation training device designed for university laboratory environments with comprehensive curriculum coverage.
Product Overview
The RM-F104 Power Electronics and DC Speed Control Training Device is developed based on experimental outlines from authoritative textbooks including "Power Electronics Technology (4th Edition)", "Semiconductor Converter Technology", and "DC Speed Control Technology" edited by Wang Zhaoan of Xi'an Jiaotong University. This advanced training system incorporates international product advantages while considering current laboratory requirements and future development trends.
Application Scope
Comprehensive coverage of experimental projects for professional courses including Power Electronics Technology, DC Speed Control, Motor Control, and Control Theory.
Technical Specifications
Parameter Specification
Input Power Three-phase five-wire 380V±10% 50HZ
Operating Environment Temperature -10℃ to +40℃; Relative Humidity <85% (25℃); Altitude <4000m
Device Capacity <1.5KVA
Dimensions 1600*700*1700mm ±10%
Practical Training Projects
Power Electronics Technology
  • Single-junction transistor trigger circuit and single-phase half-wave controlled rectifier circuit experiment
  • Single-phase bridge semi-controlled rectifier circuit experiment
  • Single-phase bridge fully controlled rectifier circuit experiment
  • Single-phase parallel inverter circuit experiment
  • Single-phase AC voltage/power regulation circuit experiment
  • Single-phase AC-DC-AC frequency converter circuit experiment
  • Three-phase thyristor trigger circuit experiment
Power Electronics Technology (Fully Controlled Device Characteristics)
  • Measurement of main parameters of power field-effect transistors (MOSFETs)
  • Research on the driving circuit of power field-effect transistors (MOSFETs)
  • Research on the characteristics and driving circuit of insulated-gate bipolar transistors (IGBTs)
  • Experiment on the characteristics of unidirectional thyristors (SCRs)
  • Experiment on the characteristics of bidirectional thyristors (SCRs)
DC Speed Control Experiments
  • Determination of parameters and characteristics of thyristor DC speed control systems
  • Debugging of main units of thyristor DC speed control
  • Study on the static characteristics of irreversible single closed-loop DC speed control systems
  • Measurement of current negative feedback DC speed control
  • Research on voltage negative feedback DC speed control
  • Double closed-loop thyristor irreversible DC speed control system
