Comprehensive Hydraulic Pneumatic PLC Control Training Device High‑Performance Electro‑Pneumatic Hydraulic Automation Teaching Equipment for Vocational Education
Comprehensive Hydraulic Pneumatic PLC Control Training Device High‑Performance Electro‑Pneumatic Hydraulic Automation Teaching Equipment for Vocational Education
Specifications
Model Number :
RM-F035
Item name :
Electrical Teaching Equipment Model
MOQ :
1 unit
Delivery Time :
30-45 work days
Type :
Electrical and electronic basis examination&training equipment series
Packaging Details :
Wooden packaging
Payment Terms :
T/T
Product name :
Electrical Training Equipment Models,Fuse Training System,Digital product maintenance examination educational equipment,Mechanical training equipment,Teaching Equipment
Application :
Physical Electrics Experiment,Training Center,educational training equipment
Place of Origin :
Henan, China
Category :
Electrical Engineering Trainer
Function :
Electric teaching training,educational training equipment,educational training electrical equipments
Brand Name :
RUIMU
Usage :
Education School Sensor Experiment
Training bench :
lab equipment for school
Price :
/
Material :
China Origin
Certification :
ISO9001/ISO45001/ISO14001,
Package :
Wooden Box
Supply Ability :
1unit/30 days
Color :
Blue and white
Description

Ø Product Introduction

Our Hydraulic and Pneumatic PLC Control Comprehensive Training Device is self‑developed to match university mechatronics course demands for pneumatic, electric and hydraulic control training. Adopting an open integrated platform structure and built on our proven training‑equipment technology, this trainer has been iteratively optimized after extensive consultations with experts, professors and teachers. It integrates pneumatic control, hydraulic transmission and PLC control, enabling students to compare and study the features, strengths and drawbacks of different control solutions.
Hydraulic parts adopt transparent organic materials for clear observation. Students can learn component structures, performances and applications, as well as master principles and workflows of various basic experimental circuits with fast, easy circuit assembly. Its main electrical control unit includes two independent relay control sets and two separate PLC control sets for simple, practical operation.

Ø Technical Parameters:

1. Main Technical Parameters

1. Power Supply: AC 220V 50Hz

2. DC Power Supply: Input: AC 220V, Output: DC 24V/2A

3. Air Compressor (Basic Mini)

4. Motor Power: 550W

Power Supply: AC 220V

5. Nominal Capacity: 30L

6. Rated Output Air Pressure: 0.8MPa

7. Training Device Dimensions: 1500mm × 800mm × 1700mm

Ø Main Features

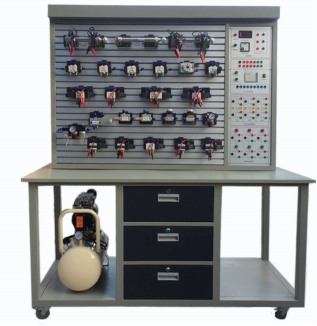

  • The Hydraulic and Pneumatic PLC Control Comprehensive Training Device comprises workbench, pneumatic parts, electrical control modules and PLC unit.
  • Standard industrial pneumatic components with transition base plates can be freely installed on T‑slot aluminum‑alloy panel; quick‑change connectors enable fast circuit assembly.
  • Adopting low‑pressure air source and 24V DC low‑voltage power supply, it provides safe pneumatic & control circuits with manual, automatic and sequential control functions.
  • PLC controller supports PC communication for intelligent control to improve trainees’ PLC control learning with pneumatic circuit practice.
  • Independent relay control unit is available for comparison exercises to help users better understand and master PLC programming advantages.
  • Audio‑guided pneumatic tutorials cover pneumatic fundamentals, circuit demos, maintenance, fault diagnosis and practical assessment contents.

    Ø Basic Pneumatic Experimental Circuits

    1.Reversing Circuit for Single-Acting Cylinders

    2. Reversing Circuit for Double-Acting Cylinders

    3. Single-Acting Cylinder Speed Control Circuit

    4. Single-Acting Cylinder Unidirectional Speed Control Circuit

    5. Double-Acting Cylinder Bidirectional Speed Control Circuit

    6. Speed Switching Circuit

    7. Buffer Circuit

    8. Secondary Pressure Control Circuit

    9. High-Low Pressure Conversion Circuit

    10. Counting Circuit

    11. Delay Circuit

    12. Overload Protection Circuit

    13. Interlocking Circuit

    14. Single-Cylinder Single-Reciprocating Control Circuit

    15. Single-Cylinder Continuous Reciprocating Circuit

    16. Linear and Rotary Cylinder Sequential Action Circuit

    17. Multi-cylinder Sequential Action Circuit

    18. Dual-Cylinder, Synchronous Action Circuit

    19. Four-Cylinder Linkage Circuit

    20. Unloading Circuit

    21. OR-Type Shuttle Valve Application Circuit

    22. Quick Exhaust Valve Application Circuit

    23. AND-Type Shuttle Valve Application Circuit
