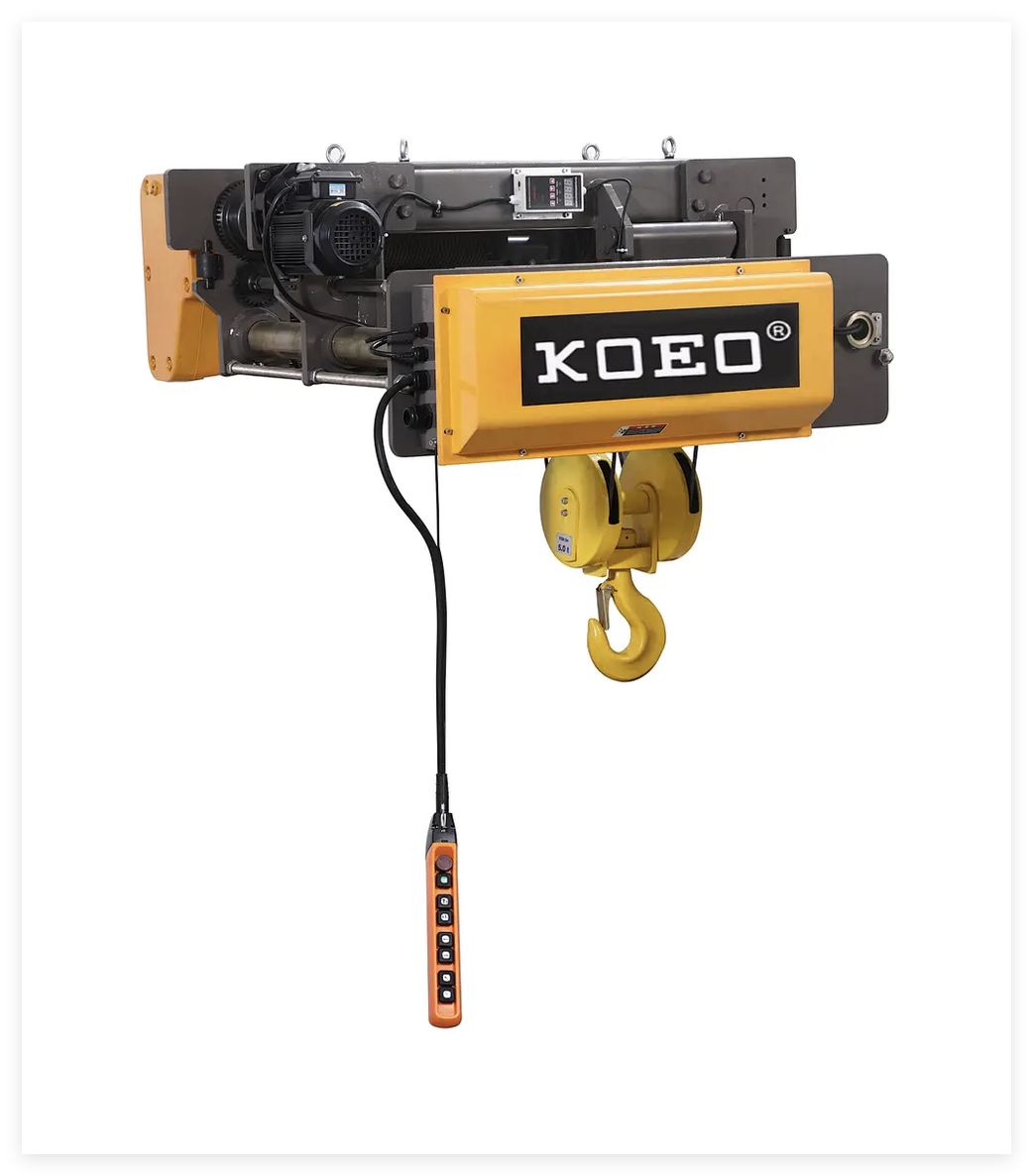

380V Heavy Duty Wire Rope Hoist Overload Protection 5T Electric Hoist 12m Lift
380V Heavy Duty Wire Rope Hoist Overload Protection 5T Electric Hoist 12m Lift
Specifications
Lifting Speed :
4.0 m/min (50Hz) / 4.8 m/min (60Hz)
Finish :
Electrostatic Powder Coating, Anti-Corrosion
Price :
USD 1,580-2,450 / Set
Motor Voltage :
380V / 400V 3-Phase 50Hz / 60Hz
Rope Type :
Galvanized Steel Wire Rope, 1960 N/mm²
Noise Level :
≤ 78 dB
Insulation Class :
Class F (155°C)
Drum Type :
Grooved Cast Iron Drum
Net Weight :
350 kg
Packaging Details :
KOEO branded heavy-duty plywood case with steel banding, VCI anti-rust film, reinforced foam padding, and export-grade outer carton
Protection Class :
IP55
Control Voltage :
48V Low Voltage Pendant Control
Delivery Time :
10-15 working days for stock, 25-35 days for production
Brake Type :
Dual Electromagnetic DC Brake
Rope Falls :
4
Payment Terms :
T/T,L/C,Western Union
Model Number :
RY-05
MOQ :
1 Set
Duty Rating :
A5 / M6 (FEM/ISO)
Supply Ability :
200 Sets per Month
Motor Power :
7.5 kW
Place of Origin :
Hebei, China
Rope Diameter :
15 mm
Brand Name :
KOEO
Certification :
CE, ISO 9001:2015
Lifting Height :
12 m (standard, up to 40m customizable)
Load Capacity :
5000 kg (5 Ton)
Description
KOEO RY-05 5 Ton Heavy Duty Electric Wire Rope Hoist Lifting 380V 12m Lift Overload Protection

The KOEO RY-05 is a 5-ton heavy duty electric wire rope hoist purpose-built for the most demanding overhead lifting applications. With a rugged grooved cast iron drum, galvanized 1960 N/mm² steel wire rope in 4-fall configuration, 7.5 kW IP55 motor, and dual electromagnetic brake system, the RY-05 delivers exceptional lifting performance for steel mills, shipyards, heavy fabrication shops, and large-scale industrial crane systems.
