Specifications
Packaging Details :
KOEO branded heavy-duty plywood case with VCI anti-rust film, reinforced foam padding, export-grade outer carton with steel banding
Certification :
CE, ISO 9001:2015
Lifting speed :
8 m/min
Payment Terms :
L/C,T/T
Power supply :
400V / 380V / 240V / 220V
Delivery Time :
10-15 working days for stock, 25-30 days for production
Supply Ability :
200 Sets per Month
Motor protection :
IP55-rated enclosure
Model Number :
CD1/MD1 Electric wire rope hoist
Place of Origin :
Zhejiang, China
Running speed :
20 m/min
MOQ :
1
Price :
USD1450-1700/Set
Wire rope diameter :
15.5 mm
Brand Name :
KOEO
Lifting height :
6-30 m
Description

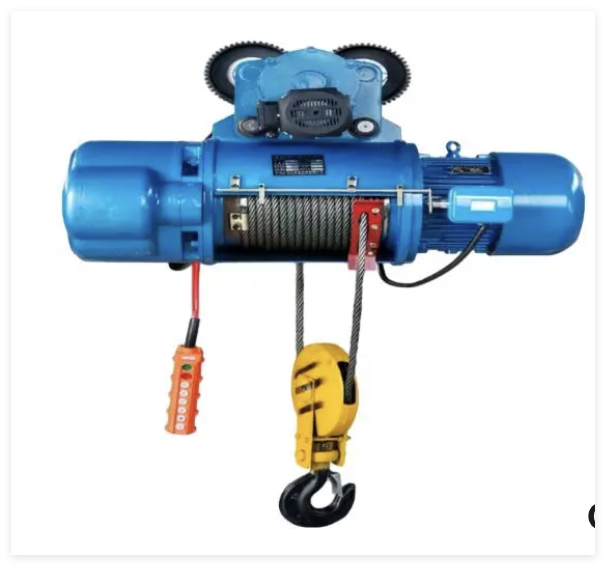

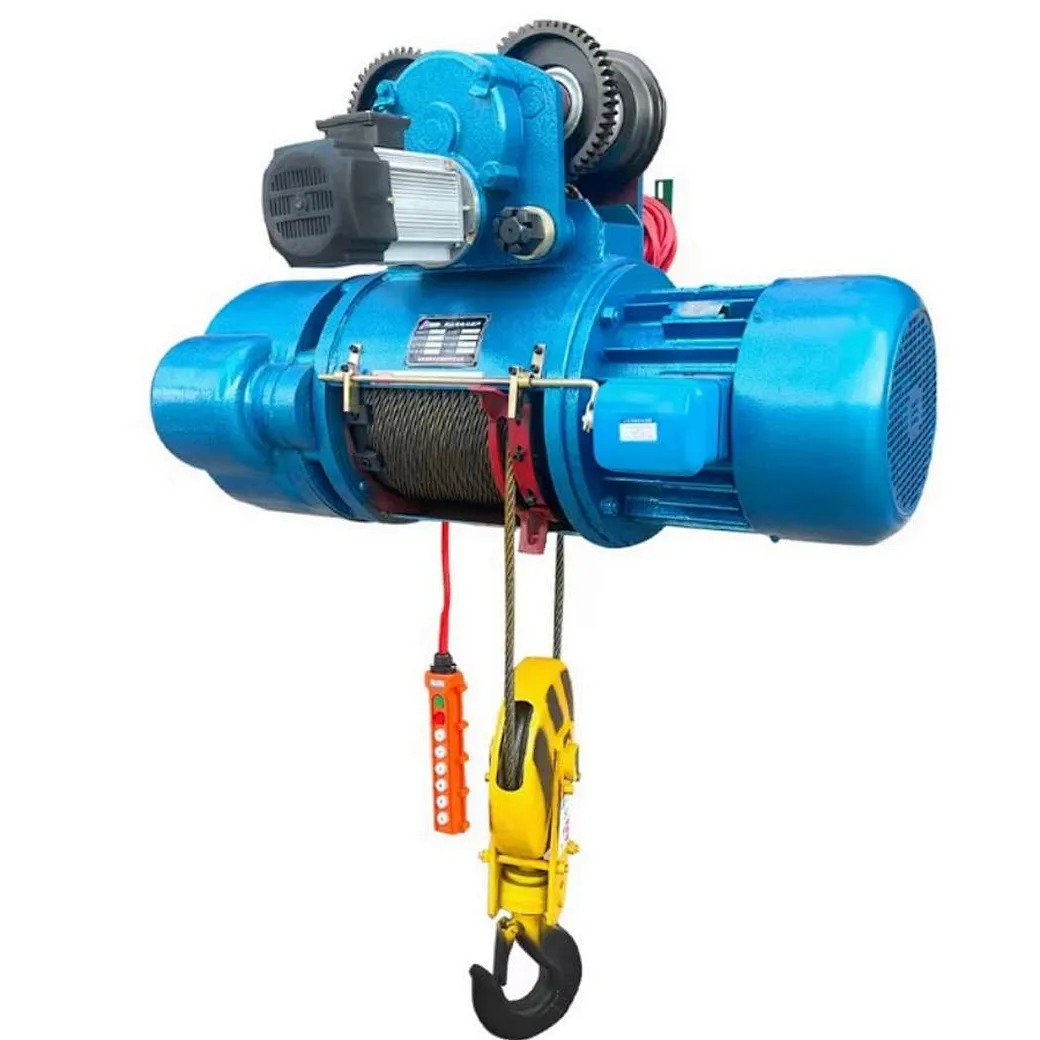

5 Ton CE Certified Electric Wire Rope Hoist with Customizable Lifting Capacity
Product Overview

Junchi Electric Wire Rope Hoist (CD1/MD1)
The Junchi Wire Rope Hoist is a high-performance, CE-certified 3-phase electric lifting solution engineered to meet rigorous European Union safety standards. Designed for industrial reliability, it offers versatile power compatibility and customizable configurations to suit heavy-duty lifting requirements.

Core Advantages
  • Safety Certified: CE certified, complying with strict EU safety standards
  • Powerful Performance: Three-phase motor with multi-voltage compatibility (400V/380V/240V/220V)
  • Efficient Operation: Lifting speed of 8 m/min and traveling speed of 20 m/min
  • Customizable: Load capacity from 3 to 20 tons with adjustable lifting heights
  • Service Support: Backed by a 1-year warranty and professional after-sales support
Technical Specifications
Capacity (Ton) Lift Height (m) Lift Speed (m/min) Wire Rope Dia (mm)
0.5 6-12 8(0.8) 4.8
1 6-30 8(0.8) 7.4
2 6-30 8(0.8) 11
3 6-30 8(0.8) 13
5 6-30 8(0.8) 15.5
10 9-30 7(0.7) 15.5
Load Capacity
3 – 20 tons (customizable beyond standard range)
Lifting Height
Customizable to your specific requirements
Power Supply
Three-phase motor with flexible voltage options: 400V / 380V / 240V / 220V
Motor Protection
IP55-rated enclosure, Class F insulation
Braking System
Electromagnetic fail-safe disc brake
Safety Features
Overload protection, upper/lower limit switches, emergency stop
Key Features
  • High-Strength Wire Rope – Multi-strand steel construction distributes load evenly, minimizing fatigue and extending service life under continuous heavy-duty cycles
  • Modular & Compact Design – Space-efficient configuration with low headroom options, ideal for installations with limited vertical clearance
  • Smooth, Precise Operation – Variable speed control options available for gentle load handling and accurate positioning
  • Low Maintenance – Sealed gearboxes, corrosion-resistant components, and durable cable guides reduce downtime and operating costs
  • Customizable Configuration – Tailored lifting heights, load capacities, and mounting options (monorail, double girder, fixed) to match your exact application needs
Applications
  • Manufacturing & Assembly – Machine component handling, heavy equipment installation
  • Warehousing & Logistics – High-rack storage, container loading/unloading
  • Construction & Infrastructure – Steel beam lifting, bridge assembly
  • Shipbuilding & Ports – Heavy cargo and equipment hoisting
  • Mining & Metallurgy – Ore handling, ladle lifting in steel mills
Product Features
CE Certified Compact Wire Rope Hoist IP55 Wire Rope Hoist 5 Ton With Customizable Lifting Capacity
Copper core motor for safe and efficient operation
CE Certified Compact Wire Rope Hoist IP55 Wire Rope Hoist 5 Ton With Customizable Lifting Capacity

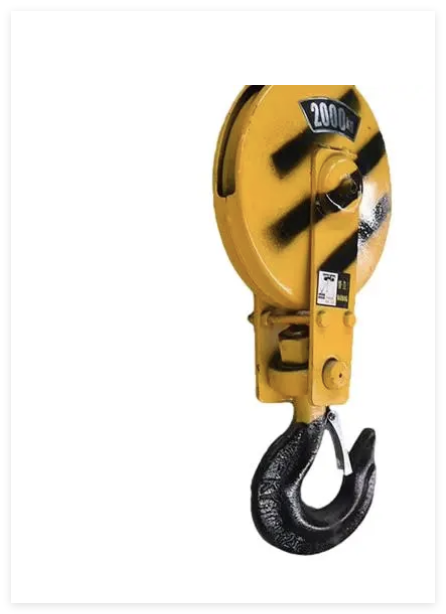

360° rotatable lower hook with safety buckle for safe operation
CE Certified Compact Wire Rope Hoist IP55 Wire Rope Hoist 5 Ton With Customizable Lifting Capacity

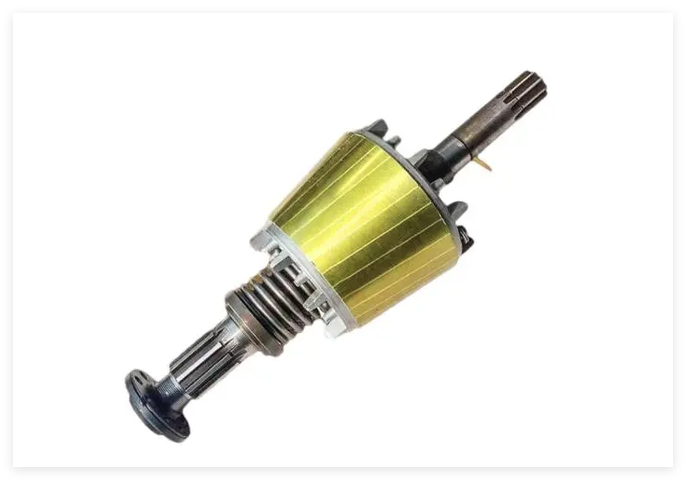

High precision motor rotor for low noise and smooth operation
CE Certified Compact Wire Rope Hoist IP55 Wire Rope Hoist 5 Ton With Customizable Lifting Capacity

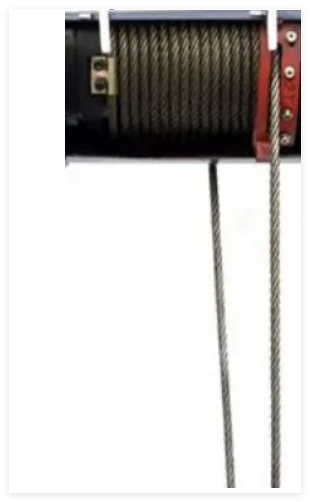

Oiled steel wire rope with anti-rotate and anti-brake safety features
Performance Summary: Copper core motor ensures safe and efficient operation, running smoothly with reliable performance across all industrial applications.
