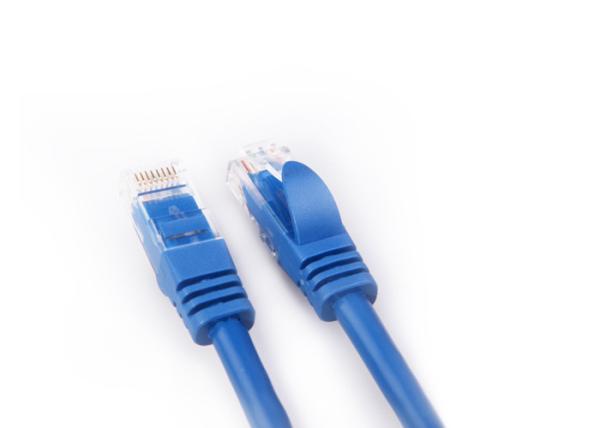

UTP 32AWG Fluke Testing Electric Wire Cable Cat6 Patch Cord Gold Plated 1M - 20M
UTP 32AWG Fluke Testing Electric Wire Cable Cat6 Patch Cord Gold Plated 1M - 20M
Specifications
Brand Name :
SINOWELL
Model Number :
VK2-0036
Certification :
RoHs; CE
Place of Origin :
Jiangsu,China(Mainland)
MOQ :
1000pcs
Price :
USD0.1--0.4/pc
Payment Terms :
D/P; T/T; Western Union
Supply Ability :
500K pcs per month
Delivery Time :
20 work days
Packaging Details :
Neutral PP Bag ; OEM PP Bag ;Export carton
Jacket :
PVC, PE or LSNH
Conductor Material: :
Copper / CCS
Type :
Insulated
Color: :
Colorful
Description

UTP 32AWG Fluke Testing Electric Wire Cable Cat6 Patch Cord Gold Plated 1M - 20M

Specification:

1 Construction material

24AWG*4P(7/0.20)
bare copper
2 Insulation material PE
3 Insulation Dia Outer Dia(mm) 0.97±0.05
4 Twister pair spec 4 pair with PE cross
5 Cable Dia Outer Dia(mm) 6.0±0.2
6 Jacket material LSZH
7 RJ45 plug spec 8P8C 50U U-TYPE 94V-0
8 Length include RJ45 plug Stranded length+(0-100mm)

Description:

1. Cat 5E Cat6 Cat6A Cat7 Patch cord Meet ANSI/TIA/EIA 568B.2

2. Suitable for 10BaseT and 100BaseTX Fast Ethernet and 1000BaseT Gigabit Ethernet connections

3. UTP Unshielding Twisted Pair or STP, FTP, SSTP

4. CM PVC Jacket/ LSZH Jacket. CMR & CMP is optional.

5. 24 AWG 4 pair Stranded Core

6. 3~50µ Gold Plated CAT 6 Staggered RJ45 Plugs with Molded Snagless Boots on Each End

7. UL® listed ETL® Verified, 100 tested

8. Factory Manufactured and Sealed in Plastic Bag

9. With or without reports made to the order

Electrical Characteristics
1 Conductor resistance ≤5Ω

2

 Insulation resistance ≥10MΩ
3

Insulation ressistance by mated connectors,measured between teminations

 >500MΩ
4

Insulation resistance by mated connectors

 ≥AC1000V
5 Characteristics impedance 100+-6 Ohm@1-250MHz
6 Contactresistance 20m Ohm max
7 Resistance unbalance 2%max
8 Voltage rating 75Vac max
9 Dielectric strength 1000 volts/1 minute min rms
10 Ampacity 1.0 Amps max
11 Coupling attenuation

40dB min @30-100 MHz 40-20log (f/100)@100-250 MHz
12 Transfer impedance N/A
13 Durability ≥1200 matching cycles
14

Cable to plug tensile strength

 9 Kgf (90N) min
15 Pulling force 1 Kgf (10N) max
16 Performance test 100% Component tests by FLUKE DTX

Environmental
Characteristic

 Transportation and storage [℃] : -25℃ to +70℃
Installation temperature [℃] : -10℃ to +50℃
Operating temperature[℃] : -25℃ to +60℃

Chemical Characteristic

 No harmful substances, fully comply with EU Directive 2011/65/EU (RoHS-2).

UTP 32AWG Fluke Testing Electric Wire Cable Cat6 Patch Cord Gold Plated 1M - 20M

UTP 32AWG Fluke Testing Electric Wire Cable Cat6 Patch Cord Gold Plated 1M - 20M


Applications:

1. Cat 5E Cat6 Cat6A Cat7 Patch cord is used in network application such as 10Base-T, 100Base-T, 1000Base-T Ethernet technology to 100meters, and have been designed specifically for Gigabit Ethernet applications (Gigabit over copper).

2. They perform at high-data transfer rates, and work with ATM and gigabit speed products.

3. Ideal for connecting Computers,Hubs, Switches, Printer servers, Patch panels, etc.

Competitive Advantage:

1. Professional design team provide special design for ur cable and unique design for both opp bag and carton box.
2. Experienced workers and QC team ensure high quality and 100% testing before shipment, and no NG PARTS outflowed.
3. Large-scale production capacity and competitive price promise timely delivery and advantageous position in the market.

Shipping Details:

1. By air

Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.

2. By sea

Shipments will be operated under FOB conditions.
