Specifications
Brand Name :
SINOWELL
Model Number :
01
Certification :
RoHs; CE
Place of Origin :
Jiangsu,China(Mainland)
MOQ :
100rolls
Price :
USD1.8/roll-17USD/roll
Payment Terms :
D/P; T/T; Western Union
Supply Ability :
1000rolls per day
Delivery Time :
depend on order qty
Packaging Details :
spool,drum and roll or customer's request
Conductor Material: :
copper
Conductor Type: :
Stranded
Insulation Material: :
pvc
Type :
Low Voltage
Application :
Underground
color: :
many kinds of color
Description

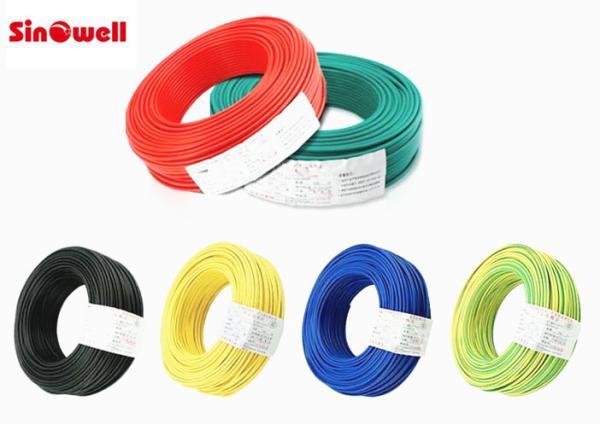

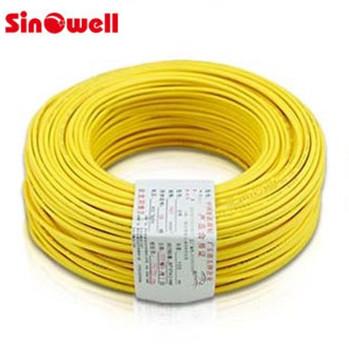

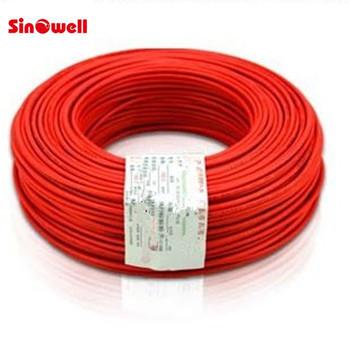

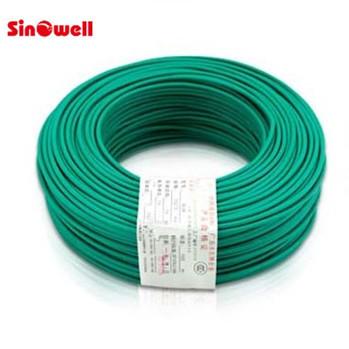

Shield Electrical Jacket Teflon Insulated Cable High Temperature Resistant Wire UL Series

Specifications:

UL Style& CUL Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance at 20°C
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL10981
CUL AWM I A
(Stranded)		 30 7/0.10 0.23 0.80 2000 610 381.00
28 7/0.127 0.23 0.90 2000 610 239.00
26 7/0.16 0.23 1.00 2000 610 150.00
24 11/0.16 0.23 1.10 2000 610 94.20
22 17/0.16 0.23 1.30 2000 610 59.40
20 21/0.178 0.23 1.50 2000 610 36.70
18 34/0.178 0.23 1.70 2000 610 23.20
16 26/0.25 0.23 2.00 2000 610 14.60
UL10981
CUL AWM I A
(Solid)		 30 1/0.254 0.23 0.75 2000 610 361.00
28 1/0.32 0.23 0.80 2000 610 227.00
26 1/0.404 0.23 0.90 2000 610 143.00
24 1/0.511 0.23 1.00 2000 610 89.30
22 1/0.643 0.23 1.15 2000 610 56.40
20 1/0.813 0.23 1.30 2000 610 35.20
18 1/1.024 0.23 1.50 2000 610 22.20
16 1/1.29 0.23 1.80 2000 610 14.00

Description:

1. Tinned,annealed,stranded or solid copper conductor.
2. MPPE-PE insulation.
3. Rated temperature:80°C.Rated voltage:300volts
4. Uniform thickness of wire to ensure easy stripping and cutting.
5. Passes UL VW-1&CUL FT1 vertical flame test.
6. Top coated conductor is avaiable

Applications:

Apply to household appliance,illumination & lighting & headlamp,electric machines,temperature sensor,military series,motor cars & ships,electrical installation,etc

Competitive Advantage:

1. Professional design team provide special design for ur cable and unique design for both opp bag and carton box.
2. Experienced workers and QC team ensure high quality and 100% testing before shipment, and no NG PARTS outflowed.
3. Large-scale production capacity and competitive price promise timely delivery and advantageous position in the market.

Shipping Details:

1. By air

Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.

2. By sea

Shipments will be operated under FOB conditions.
