Specifications
Brand Name :
JCM
Model Number :
V80
Certification :
ISO 9001,ISO 14001
Place of Origin :
China
Supply Ability :
200 Piece/Pieces per Month
Packaging Details :
2022 China New Dump Lorry Heavy 8x4 Tipper Truck 7.8m Cargo Tank GVW 31000KG
Dimension :
10712×2650×3558
Steering :
Left/Right
Fuel :
Pure Electric
Maximum gradient :
35%
Description

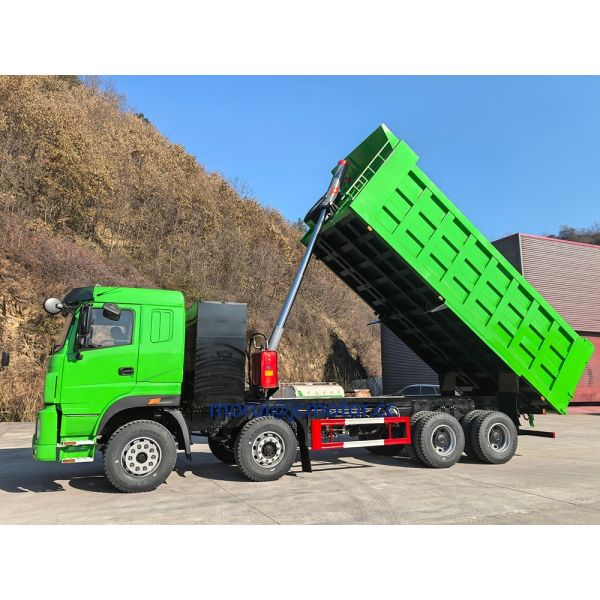

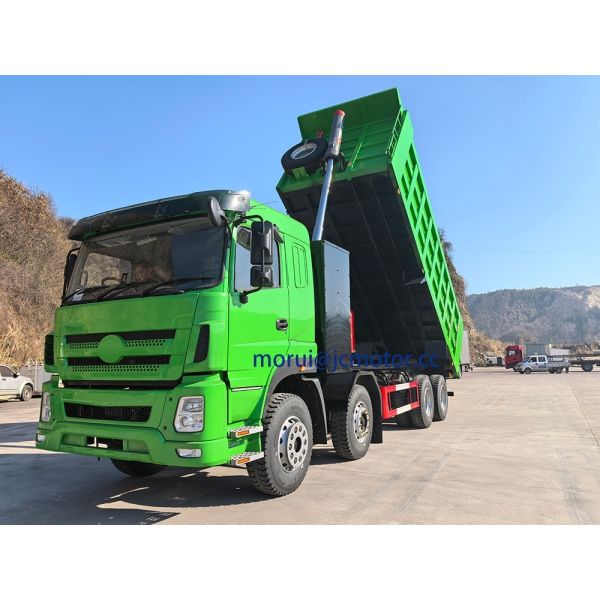

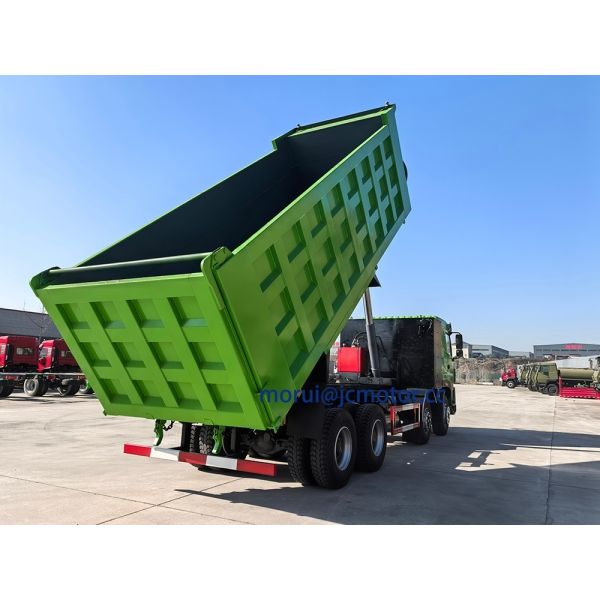

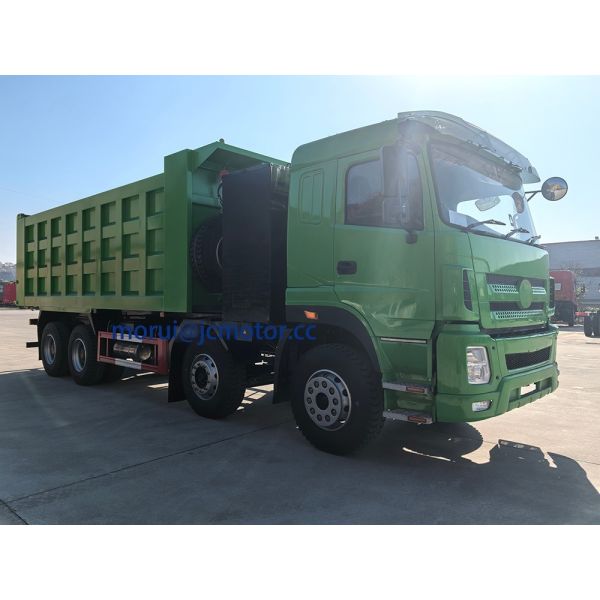

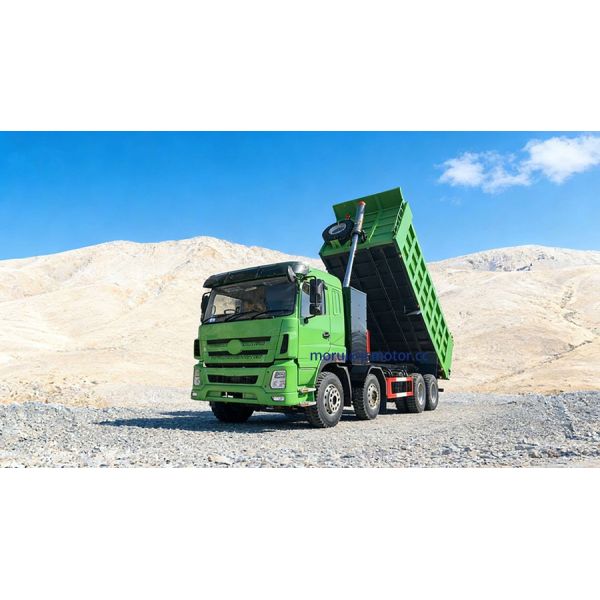

Electric 8x4 Heavy Duty Dump Truck 55Ton Payload 400kWh Battery Electric Mining Construction Solution
Product Specification

This Electric 8x4 Heavy Duty Dump Truck is designed for mining transportation, large-scale infrastructure construction, heavy earthmoving projects, and industrial logistics. Powered by a fully electric drivetrain, the vehicle delivers zero emissions, low noise, and reduced operating costs, while maintaining the durability and payload capacity of traditional diesel dump trucks.

  • 55 Ton Payload Capacity
    Ideal for mining, quarrying, and heavy earthmoving operations.

  • 80 Ton Gross Vehicle Weight (GVW)
    Engineered for structural safety and long-term heavy-duty use.

  • 400kWh High-Capacity Battery
    Enables extended working hours with fewer charging interruptions.

  • 510kW Peak Power & 2800 N·m Torque
    Provides strong acceleration, stable power output, and excellent traction.

  • 35% Gradeability
    Suitable for steep slopes and rough terrain commonly found in mining sites.

  • 6m Heavy-Duty Dump Body
    Designed for abrasive materials such as ore, gravel, and soil.

  • 10.5m Overall Vehicle Length
    Balances high payload capacity with good maneuverability.

Truck Model JCM3800CFBEV
Truck Type Heavy Duty Engineering Dump Truck
Fuel Type Pure Electric
Drive Type Left Hand Drive / Right Hand Drive
Dimension L×W×H(mm) 10712×2650×3558
Cargo compartment L×W×H(mm) 6000×2550× 1800
Max. Speed(km/h) 85
G.V.W(kg) 80000
Rated load weight (kg) 55000
Power Motor Peak Power/Torque:510kw/2800N.m
Power Battery 400.6kWh
Tire 12.00R20
ABS Standard
Full Load Range Mileage 210km
Product Description

Electric 8x4 Heavy Duty Engineering Dump Truck 55Ton Payload 400kWh Battery Electric Mining Construction Solution

Electric 8x4 Heavy Duty Engineering Dump Truck 55Ton Payload 400kWh Battery Electric Mining Construction SolutionElectric 8x4 Heavy Duty Engineering Dump Truck 55Ton Payload 400kWh Battery Electric Mining Construction SolutionElectric 8x4 Heavy Duty Engineering Dump Truck 55Ton Payload 400kWh Battery Electric Mining Construction SolutionElectric 8x4 Heavy Duty Engineering Dump Truck 55Ton Payload 400kWh Battery Electric Mining Construction Solution

FAQ
Q1. Is this pure electric 8×4 dump truck suitable for use in mines?
A:Yes. This model is specifically designed for mining applications, offering a 55-ton payload, 35% gradeability, and high torque output for demanding environments.
Q2. How long can a 400 kWh battery support operation?
A:Under typical mining or construction conditions, the 400kWh battery supports extended operation. Actual range depends on payload, terrain, and working cycles.
Q3. Where are the advantages compared to diesel dump trucks?
A:Compared with diesel dump trucks, electric models offer zero emissions, lower noise, reduced operating costs, and simpler maintenance.
Q4.Do you support custom configuration?
A:Yes. Customization options are available, including dump body design, battery configuration, and charging solutions.
