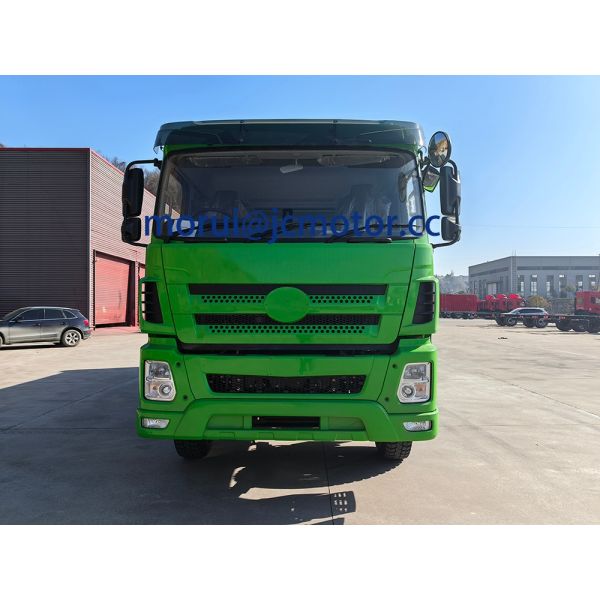

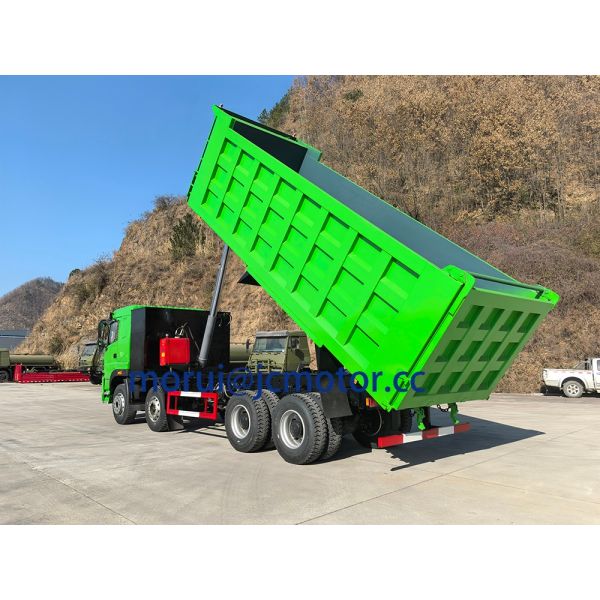

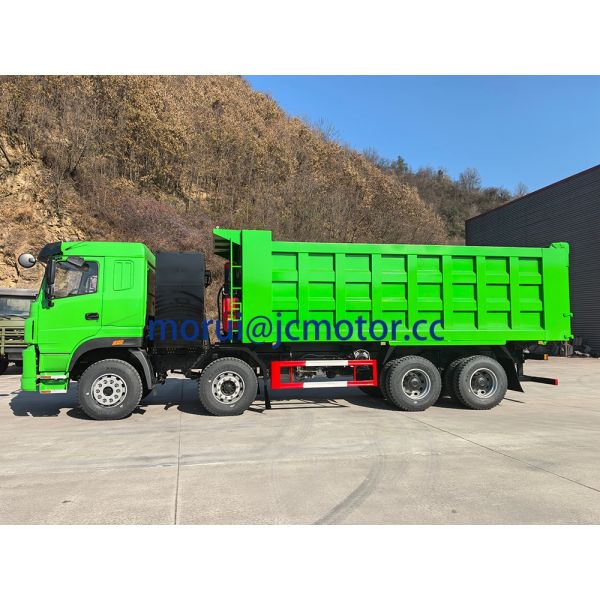

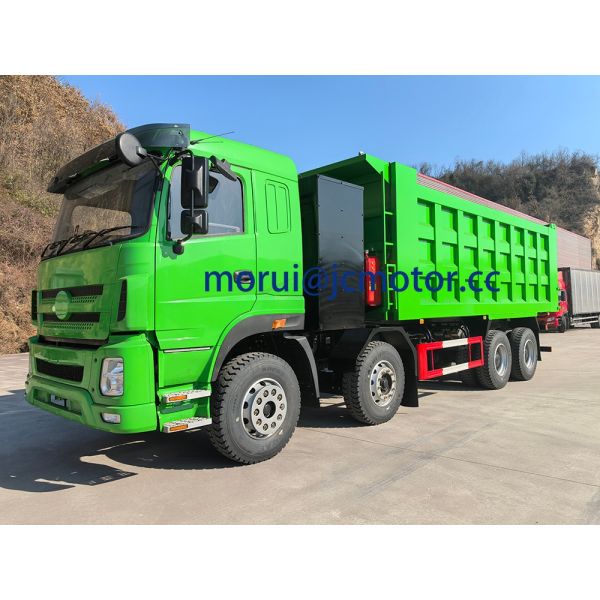

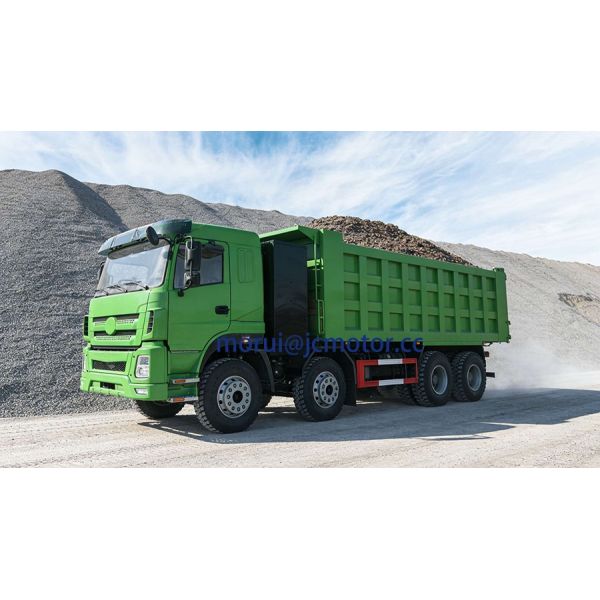

80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
Specifications
Brand Name :
JCM
Model Number :
V80
Certification :
ISO 9001,ISO 14001
Place of Origin :
China
Supply Ability :
200 Piece/Pieces per Month
Packaging Details :
2022 China New Dump Lorry Heavy 8x4 Tipper Truck 7.8m Cargo Tank GVW 31000KG
Dimension :
10712×2650×3558
Steering :
Left/Right
Fuel :
Pure Electric
Maximum gradient :
35%
Description
80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck
Product Specification

This Electric 8x4 Heavy Duty Dump Truck is engineered to address one of the biggest challenges in electric heavy-duty vehicles—limited driving range under heavy load. By combining a 55-ton payload capacity, 80-ton GVW, and a 400kWh battery system, the truck achieves a driving range of up to 200 km under typical working conditions, making it suitable for long-distance mining and construction operations.

✅ 200km Long Driving Range

The truck delivers a driving range of up to 200 km, significantly outperforming many conventional electric dump trucks. This reduces charging frequency and ensures continuous operation in large mining sites and infrastructure projects.

✅ Optimized Range Under Heavy Load

Advanced energy management, high-efficiency motors, and regenerative braking enable stable energy consumption even at a 55-ton payload, achieving a balance between heavy load and long range.

✅ High Power Electric Drivetrain

With 510kW peak power and 2800 N·m torque, the truck maintains consistent performance during long-distance hauling, steep climbs, and harsh terrain.

✅ Designed for Continuous Heavy-Duty Operation

The 400kWh battery system supports fast charging and centralized energy deployment, ensuring high vehicle availability and reduced total cost of ownership (TCO).

Truck Model JCM3800CFBEV
Truck Type Heavy Duty Engineering Dump Truck
Fuel Type Pure Electric
Drive Type Left Hand Drive / Right Hand Drive
Dimension L×W×H(mm) 10712×2650×3558
Cargo compartment L×W×H(mm) 6000×2550× 1800
Max. Speed(km/h) 85
G.V.W(kg) 80000
Rated load weight (kg) 55000
Power Motor Peak Power/Torque:510kw/2800N.m
Power Battery 400.6kWh
Tire 12.00R20
ABS Standard
Full Load Range Mileage 210km
Product Description

80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck

80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck

80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck

80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck

80Ton Long Range Engineering Mining Heavy Duty Electric Construction Dump Truck

FAQ
Q1. Was the 200km range achieved under full load conditions?
A:The 200km range is measured under typical full load working conditions. Actual range may vary depending on payload, terrain, slope, and driving behavior, but it remains highly competitive among similar vehicles.
Q2. Compared to ordinary electric dump trucks, what are the core advantages of this JCM dump truck?
A:The key advantages are heavy payload, long driving range, and engineering-grade reliability, making it suitable for demanding long-distance operations.
Q3. Which customers are suitable for this dump truck model?
A:It is ideal for mining operators, infrastructure contractors, industrial logistics companies, and project owners seeking long-term cost reduction.
Q4.Is it suitable to replace diesel dump trucks for long-distance transportation?
A:Yes. With a 200km driving range, the truck can effectively replace diesel dump trucks in many mining and construction applications.
