Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Specifications
Brand Name :
LiangYi
Model Number :
LY-30X
Certification :
UL
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 rolls per day
Delivery Time :
5-8 work days
Packaging Details :
Tapes in plastic bags then in cartons
Backing Material :
PET Film
Backing Thickness :
0.038mm
Adhesive :
Silicone
Color :
Red
Usage :
Masking
Width :
Customizable
Length :
33m,66m,100m,200m
Total Thincknee :
0.05mm±0.005mm
Description
Product overview

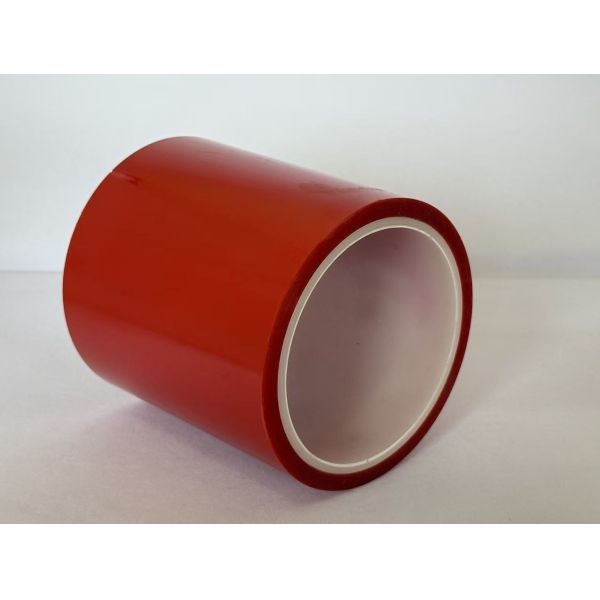

Red silicone tape is a type of tape made with a red polyester (PET) film backing and coated with a silicone adhesive. It offers excellent high-temperature resistance and good chemical resistance.

Key Features
  • High-Visibility Red Color
  • 155℃ Continuous Temperature Resistance
  • Superior Electrical Insulation
  • Excellent Chemical & Solvent Resistance
  • Conformable with High Elongation
Primary Applications
  • Automotive Paint Baking & Refinishing
  • Powder Coating Oven Curing
  • PCB Wave Soldering Masking
  • Electroplating & Anodizing Masking
  • Industrial Oven Curing & Drying
  • Composite Curing & Vacuum Bagging
  • Insulation Protection for Electronic Components
Technical Data Sheet
Total Thickness mm 0.05 ± 0.005
Backing Thickness mm 0.038
Adhesive Type – Silicone
Backing Material – PET Film (Red)
Color – Red
Elongation at Break % > 40
Peel Adhesion g/25mm > 500
Long-Term Temp Resistance ℃ 155
Dielectric Breakdown Voltage kV > 5.0
Chemical Resistance – Excellent
Adhesive Residue – None
Recommended Storage Temp ℃ 23
Recommended Storage Humidity % RH 65
Shelf Life Months 6
Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
FAQ

Q: Will this tape withstand a full automotive paint bake cycle?

A: Yes. The tape is rated for continuous use at 155℃, making it fully compatible with standard automotive paint bake cycles (typically 60-90 minutes at 140℃–155℃). It maintains adhesion and removes cleanly after cooling.

Q: Does the red pigment bleed or transfer onto painted surfaces?

A: No. The pigment is fully encapsulated within the PET film and does not bleed, fade, or transfer to masked surfaces during oven cycling. Your paint finish remains pristine.

Q: Can this tape be used on freshly painted surfaces?

A: It is recommended to apply the tape only to fully cured painted surfaces. The silicone adhesive is designed for clean removal from cured coatings and metal substrates.

Q: Is this tape suitable for lead-free wave soldering?

A: Yes. The 155℃ continuous rating and >5kV dielectric strength make it an excellent choice for masking PCB gold fingers and connectors during lead-free wave soldering processes.

Q: What is the recommended storage condition and shelf life?

A: Store in original packaging at 23℃ (73℉) and 65% relative humidity. Under these conditions, the tape maintains optimal performance for 6 months from date of shipment. Avoid exposure to direct sunlight and high humidity.
