Specifications
Brand Name :
LiangYi
Model Number :
LY-30X
Certification :
UL
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 rolls per day
Delivery Time :
5-8 work days
Packaging Details :
Tapes in plastic bags then in cartons
Bcaking material :
PET Film
Adhesive :
Silicone
Length :
33,66,100,200m
Width :
Customizable
Color :
Green
Usage :
Transformer
Total Thickness :
0.055mm±0.005mm
Backing Thickness :
0.038mm
Description

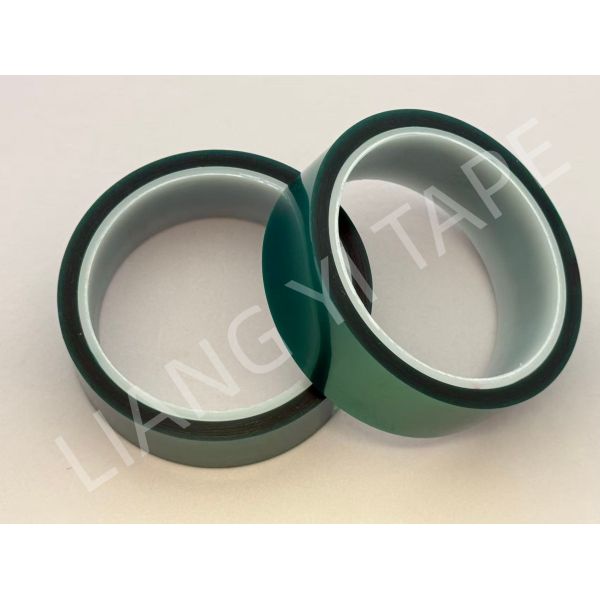

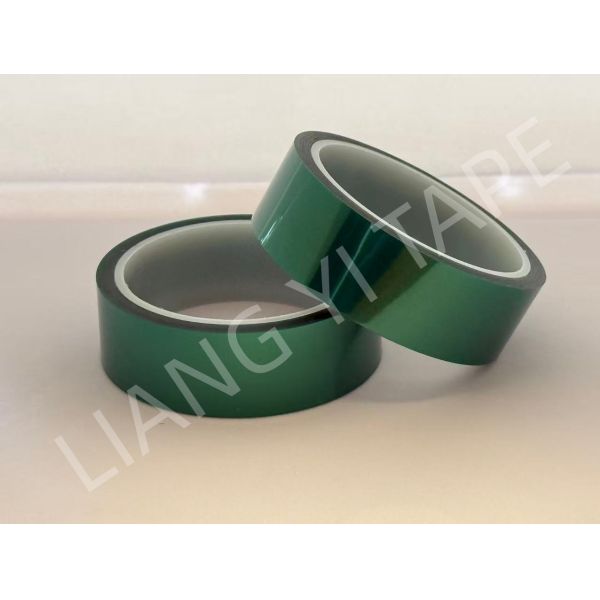

Product Overview:

Our PET Green Silicone Tape is a high-performance insulation tape designed for industrial applications requiring reliable heat resistance and electrical insulation. Made from high-grade PET film and coated with silicone adhesive, this tape offers excellent dielectric strength (>5kV). It withstands temperatures up to 155℃ while maintaining strong adhesion (≥600g/25mm) and good elongation (≥40%). The tape is also flame-resistant and provides superior insulation resistance (≥10⁶ Ω).

This tape is widely used in powder coating, PCB protection, lithium battery manufacturing, and transformer insulation. It removes cleanly without residue, making it ideal for masking applications.Suitable for electronics manufacturers, automotive parts suppliers, and industrial coating companies.

Technical Specifications:

Item

Specification/Parameter

Part No.

PET Silicone Tape

Material

PET Film

Thickness

0.055mm ±0.005mm

Colloid

Silicone

Backing Thickness

0.038mm

Peeling Strength

≥600 (g/25mm)

Elongation

40%

Dielectric Breakdown

>5kV

Flame Resistance

YES

Insulation Resistance

≥10⁶ Ω

Solvent Retardant

Good

Heat Resistance

155

Color

Green

Width

Customizable

Length

33,66,100,200m±0.5m

Storage Condition

23, 65% RH

Storage Validity

6 months

Green PET Silicone Tape 0.055mm For Powder Coating For LED Dot MatrixGreen PET Silicone Tape 0.055mm For Powder Coating For LED Dot Matrix

Key Features:

1. High Temperature Resistance

2. Excellent Electrical Insulation

3. Clean RemovalClean Removal

4. Flame Retardant

5. Good Solvent Resistance

Primary Applications:

1.Powder Coating Masking

2.PCB (Printed Circuit Board) Protection

3.Lithium Battery Manufacturing

4.Transformer and Coil Insulation

5.Electronics Assembly (High-Temperature Masking)

6.Capacitor Production

Why Choose Our Tape:

1.Factory Direct Pricing

2.Strict Quality Control

3.Customization Flexibility

4.Low Splice Rate

5.Fast Lead Times & Reliable Supply

6.Technical Support

7.Proven Export Experience

FAQ:
Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.

Q: What is the lead time?
A: It usually take 5~8 days to finish your order.

Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.Narrowest 1.5mm,widest 1300mm.

Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.

Q: Will you accept us to visit you?
A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
