Rcd Electrical Safety Switch Electromagnetic Circuit Breaker Disyuntor De Corriente Residual
Rcd Electrical Safety Switch Electromagnetic Circuit Breaker Disyuntor De Corriente Residual
Specifications
Brand Name :
SEFIE
Model Number :
SFL3-63
Certification :
IEC60898,CB,CE
Place of Origin :
WenZhou,China
MOQ :
2000-3000
Price :
Negotiable
Supply Ability :
200000pcs per month
Delivery Time :
14 days after receipt of deposit
Packaging Details :
240 pcs per carton,12 pcs per box
Material :
Plastic
Pole :
2,4
Rated current :
25,40,63
Rated voltage :
230(240)/400(415)
Rated frequency :
50/60
Protection class :
IP20
Description

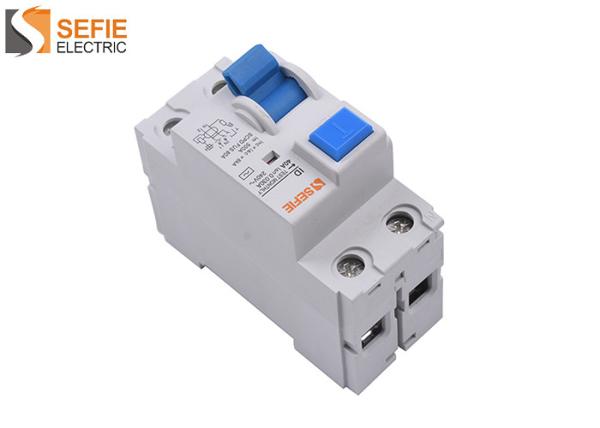

SEFIE SFL3-63 Electro-magnetic type RCCB 25-63A Residual Current Circuit Breaker ( Disyuntor de corriente residual)

  • Contact position indication
  • Equipped with finger protected connection terminals
  • Fire resistant plastic parts endures abnormal heating and strong impact
  • Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the tated sensitivity
  • Independent of power supply and line voltage ,and free from external interference,voltage fluctuation

type In/A I△n/A Residual Current (I△) Is Corresponding To The Following Breaking Time
I△n 2I△n 5I△n 5A ,10A, 20A ,50A ,100A ,200A ,500A

general

type

any

value

any

value

 0.3 0.15 0.04 0.04 Max Break-time
S type 25 0.03 0.5 0.2 0.15 0.15 Max Break-time
0.13 0.06 0.05 0.04 Mini non-driving
The general type RCBO whose current I△n is 0.03mA or less can use 0.25A instead of 5I△n
