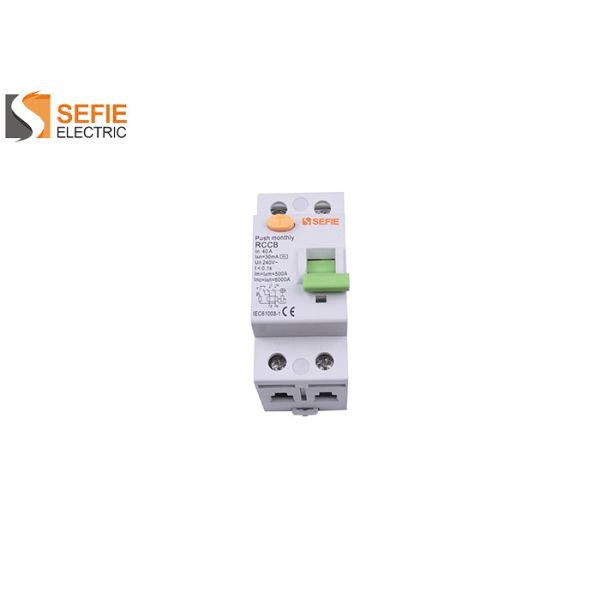

240V Residual Current Circuit Breaker RCCB / 2 Pole Circuit Breaker IP20
240V Residual Current Circuit Breaker RCCB / 2 Pole Circuit Breaker IP20
Specifications
Brand Name :
SEFIE
Model Number :
SFL6-63
Certification :
IEC60898,CB,CE,CCC
Place of Origin :
WenZhou,China
MOQ :
2000-3000
Price :
Negotiable
Supply Ability :
200000pcs per month
Delivery Time :
14 days after receipt of deposit
Packaging Details :
240pcs per carton,12pcs per box
Payment Terms :
L/C, T/T
Material :
Plastic
Rated current :
25,40,63
Pole :
2,4
Rated voltage :
230(240)/400(415)
Color :
White
Protection class :
IP20
Description

SFL6-63 series 240V/415V residual current circuit breaker RCCB

  • Rated resudual operating current In(A):0.03,0.1,0.3,0.5
  • Rated conditional short-circuit current Inc:10kA
  • Terminal Connection Height:21mm
  • Electro-machanical endurance:4000 cycles
  • Connection capacity:Rigid conductor 25mm2
  • Connection terminal:Screw terminal

type In/A I△n/A Residual Current(I△) Is Corresponding To The Following Breaking Time(S)
I△n 2I△n 5I△n 5A,10A,20A,50A,100A,200A,500A

general

type

any

value

any

value

 0.3 0.15 0.04 0.04 Max Break-time
S type ≥25 ＞0.03 0.5 0.2 0.15 0.15 Max Break-time
0.13 0.06 0.05 0.04 Min non-driving time
