MV ABC Aerial bundle cable 6.35/11kV AL/XLPE/CWS/HDPE to AS/NZS 3599.1 12.7/22kV

APPLICATION

MV ABC Aerial bundled cables are mainly used for secondary overhead lines on poles or as feeders to residential premises.The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.

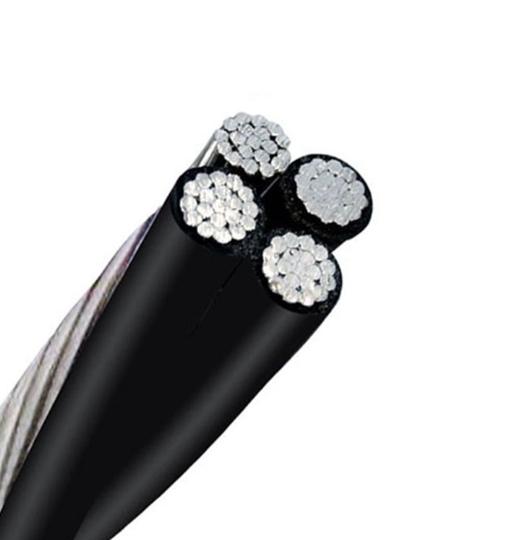

Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.

CONSTRUCTION

Conductor:Circular Compacted Stranded H68 Aluminium ( Class 2)

Conductor Screen:Extruded Semi-conductive Layer

Insulation:XLPE

Insulation Screen:Extruded Semi-conductive Layer

Metallic Screen:Copper wire screen or copper tape screen

Outer Sheath:HDPE

Support Conductor:Galvanized steel wires

STANDARD

AS/NZS 3599.1

CHARACTERISTIC

l Voltage rating: 12.7/22kV

l Normal operation 90°C.

l Emergency over load conditions 130°C.

l Short circuit conditions 250°C.

Specification
