Medium Voltage Aerial Bundled Cable ABC MV 6.35/11kV 19/33kV IEC 60502
Medium Voltage Aerial Bundled Cable ABC MV 6.35/11kV 19/33kV IEC 60502
Specifications
Brand Name :
Zhongdong
Model Number :
ABC
Certification :
CCC,ISO,TUV,CE
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Wooden Drum/ Steel Drum
Application :
overhead distribution line
Cores Nos :
1,2,3,4 more multicore
Rated Voltage :
6.35/11kV, 19/33kV
Installation Degree :
-20℃-90℃
Neutral Messengers :
AAC or ACSR
Insulation :
XLPE/PE/PVC
Description

Medium Voltage ABC Aerial Bundled Cable MV 6.35/11kV, 19/33kV IEC 60502

Applicatiom

Medium Voltage aerial bundled cables are mainly used for secondary overhead lines on poles or as feeders to residential premises.

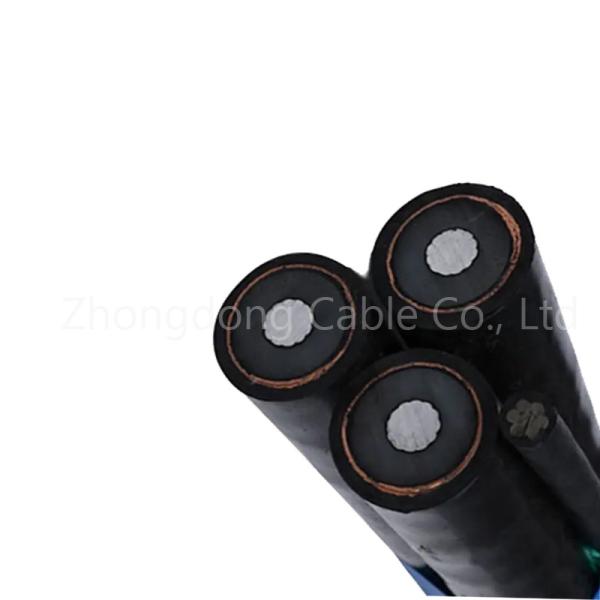

Construction

  1. Phase Conductor: Class 2 Circular compacted stranded aluminum
  2. Conductor Screen: Extruded semi-conductive layer
  3. Insulation: XLPE (Cross-linked polyethylene)
  4. Insulation Screen: Extruded semi-conductive layer
  5. Metallic Screen: Copper wire screen or copper tape screen
  6. Separator: Semi-conductive swellable tape
  7. Outer Sheath: HDPE (High Density polyethylene)

Characteristics

  1. 6.35/11kV
  2. Operating Temperature: 90°C XLPE
  3. Temperature Range: -20°C PE sheath
  4. Short Circuit Temperature( 5 seconds maximum duration ): 250°C XLPE
  5. Bending Radius: 15 x overall diameter

Specification

Number of Cores x Nominal Cross Section

Phase Conductor

Messenger Suspension Unit

Continuous Current Rating at 300°C Ambient Temp.

Stranding

Nominal Sectional Area

Maximum Conductor Resistance

Stranding

Nominal Sectional Area

Breaking Load

No.×mm²

No.×mm

mm²

Ω/Km

No.×mm

mm²

kN

A

3X50 + 1X25

19/1.78

50

0.641

7/3.0

50

60

116

3X70 + 1X50

19/.14

70

0.443

7/3.15

50

62

210

3X95+ 1X50

19/2.52

95

0.32

7/3.0

50

60

173

3X185+1X120

37/2.52

185

0.164

7/4.67

120

150

259

3X150 +1X50

37/2.25

150

0.206

7/3.15

50

62

365

3X240 +1X50

61/2.25

240

0.125

7/3.15

50

62

500
