60 Watts Liquid Cooled Supercharging Station Coolant Circulation Pump 6 Bar 24V
60 Watts Liquid Cooled Supercharging Station Coolant Circulation Pump 6 Bar 24V
60 Watts Liquid Cooled Supercharging Station Coolant Circulation Pump 6 Bar 24V
60 Watts Liquid Cooled Supercharging Station Coolant Circulation Pump 6 Bar 24V
Specifications
Brand Name :
Bextreme Shell
Model Number :
OWP-BL60H-D2-1
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotibale
Payment Terms :
T/T,Western Union
Supply Ability :
10000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Cartons
Product Name :
Electric Coolant Pump
Working Voltage :
DC 24V
MAX Pressure :
6 Bar
Rated Parameter :
Q=2L/min @ H=30m
Service -Life :
20000h
Protection Grade :
IP 68
Description
High Performance Liquid-Cooled Supercharging Station Coolant Circulation Pump

The High Performance Liquid-Cooled Supercharging Station Coolant Circulation Pump (Model: OWP-BL60H-D2-1) is a high-efficiency core component engineered to meet the intensive cooling needs of new energy vehicle supercharging infrastructure. With exceptional flow and head capabilities, this pump delivers superior coolant circulation, ensuring the stable operation of high-power liquid-cooled supercharging stations.

Specifications
Specification Details
Model OWP-BL60H-D2-1
Input Voltage 24VDC (16-32V wide range)
Rated Power 60W
Maximum Flow 3L/minute
Maximum Head 60 meters
Rated Performance Q=2L/min, H≥30m
Medium Compatibility 50%-60% ethylene glycol + water, insulating oil, fluorinated liquid
Medium Temperature Range -40℃ to +85℃
Inlet/Outlet Diameter 10mm
Speed Control Supported
Error Feedback Supported
Protection Class IP67
Noise Level ≤45 decibels
Service Life ＞20000 hours (at 36℃ ambient temperature & rated voltage)
Weight 650 grams
System Pressure Resistance -99-600Kpa (at 100℃)

Focused on the new energy vehicle supercharging industry, this high-performance pump is exclusively designed for liquid-cooled supercharging stations, including 350kW+ fast-charging piles, commercial supercharging hubs, and industrial EV charging complexes. It is a key part of the coolant circulation system, responsible for transferring heat from charging modules, power units, and cables—ensuring consistent performance during long-duration, high-power charging sessions.

Its core advantages lie in outstanding hydraulic performance: a maximum flow of 3L/min and 60-meter head enable efficient heat dissipation even in large-scale cooling loops, while the rated performance (Q=2L/min, H≥30m) guarantees stable operation under standard working conditions. The 60W high-efficiency motor minimizes energy consumption, and IP67 protection ensures durability in outdoor or dusty environments. With support for speed control, users can adjust flow rates based on cooling demands, and error feedback facilitates timely maintenance. Compatible with extreme temperatures and multiple cooling media, this pump offers unmatched reliability for high-performance liquid-cooled supercharging stations, reducing downtime and enhancing charging efficiency.

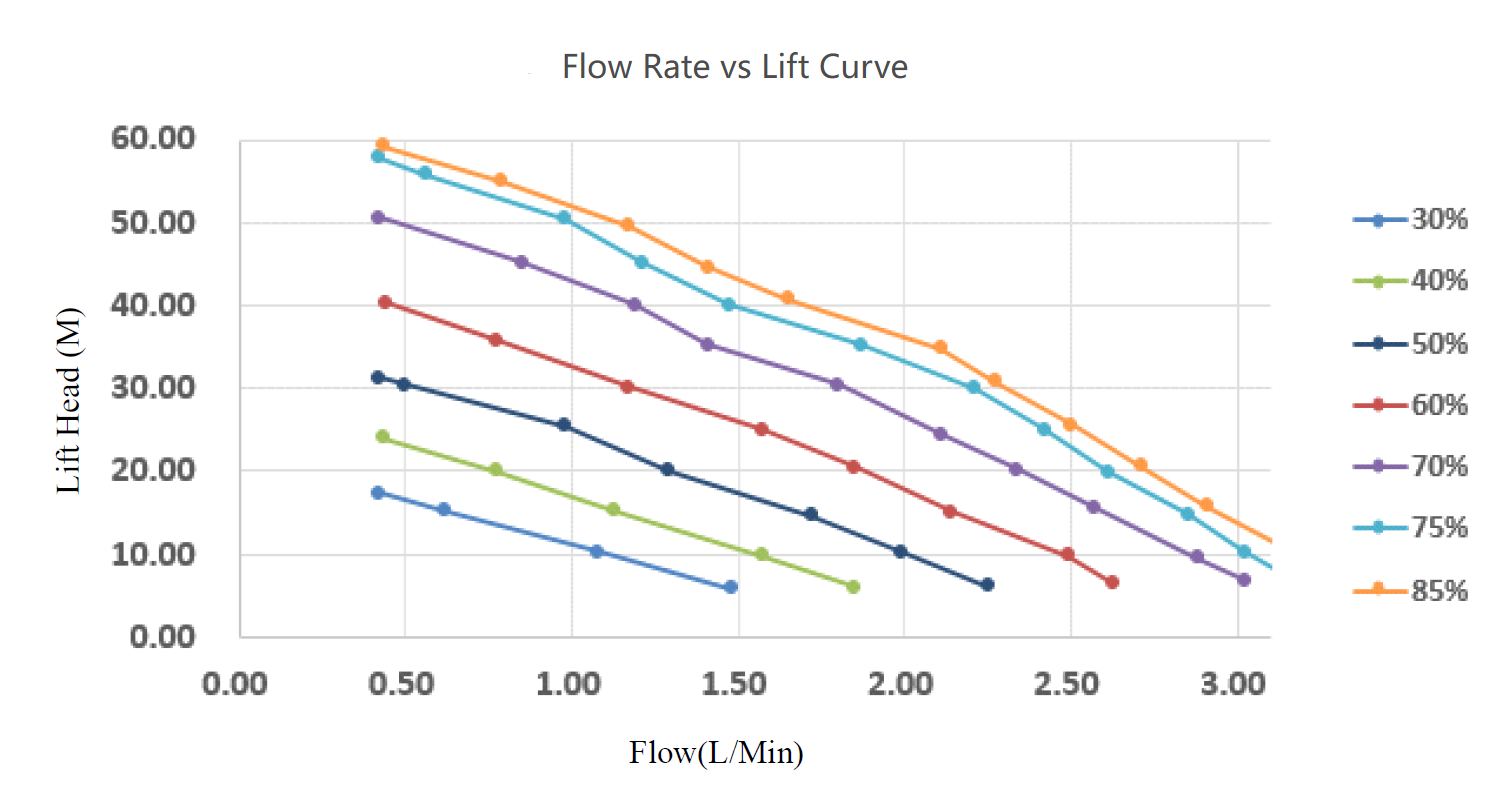

Head VS Flow Rate

60 Watts Liquid Cooled Supercharging Station Coolant Circulation Pump 6 Bar 24V

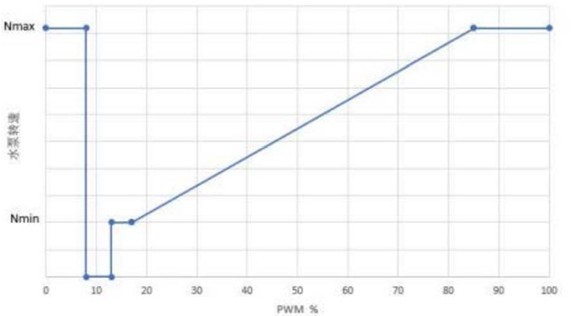

PWM Speed Control Mode

60 Watts Liquid Cooled Supercharging Station Coolant Circulation Pump 6 Bar 24V

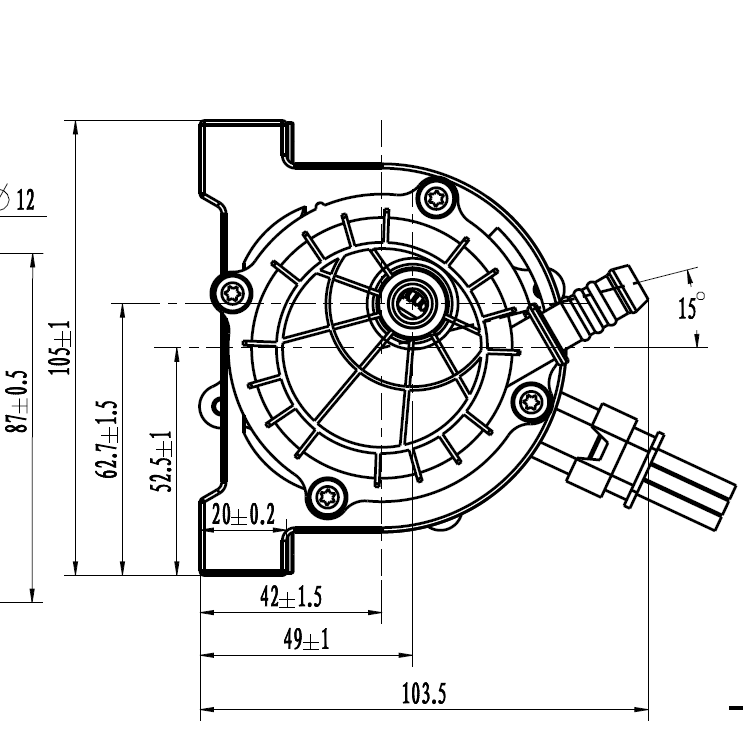

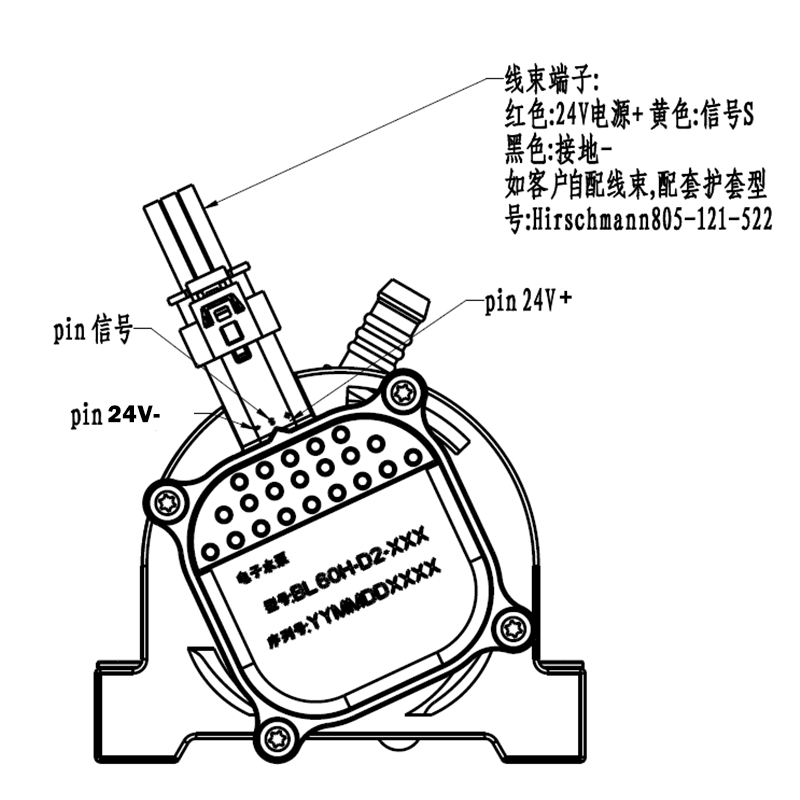

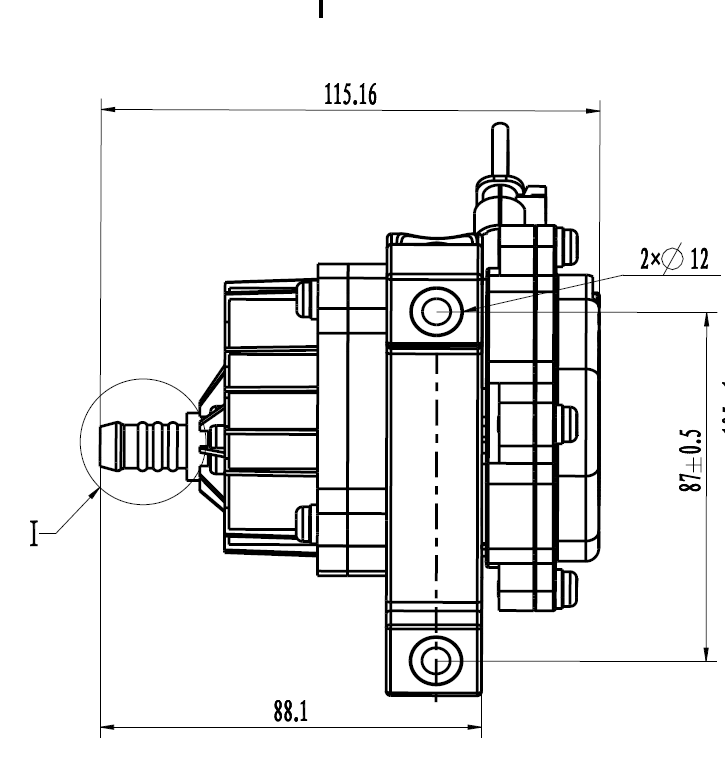

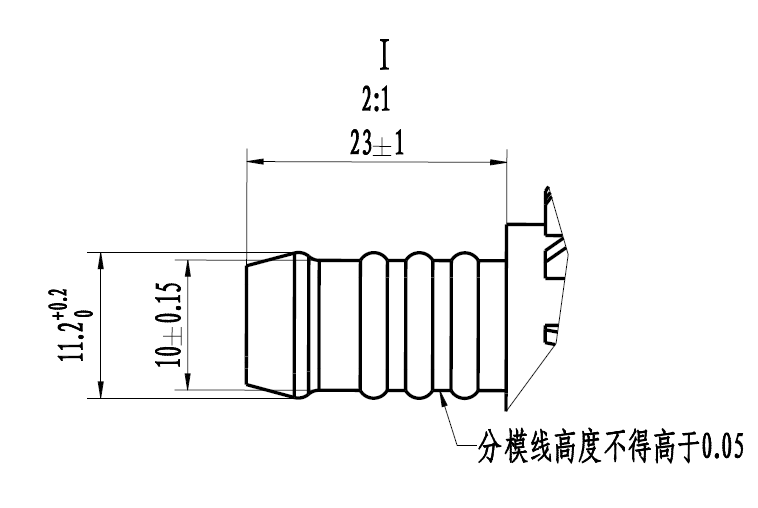

Dimensional Drawing

60 Watts Liquid Cooled Supercharging Station Coolant Circulation Pump 6 Bar 24V

60 Watts Liquid Cooled Supercharging Station Coolant Circulation Pump 6 Bar 24V

60 Watts Liquid Cooled Supercharging Station Coolant Circulation Pump 6 Bar 24V

60 Watts Liquid Cooled Supercharging Station Coolant Circulation Pump 6 Bar 24V
