High Efficiency 24V DC Electric Coolant Pump for Hybrid Bus and Engineering Vehicles with a 250W Rated Power
High Efficiency 24V DC Electric Coolant Pump for Hybrid Bus and Engineering Vehicles with a 250W Rated Power
Specifications
Brand Name :
Bextreme Shell
Model Number :
OWP-BL43-200
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
10000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
PE+carton
Product name :
Electric automotive water pump
Operating Voltage :
DC 18V-32V
Rated power :
250W
Rated performance :
When flow=2800L/h, head=16m
Pump body color :
Silver
Inlet/outlet dia. :
38mm
Type :
Single-stage centrifugal pump
Material :
Die-cast aluminum
Service life :
More than 20000h
Features :
Maintenance-free
Motor type :
BLDC
Pump driver :
Built-in
Description

Pump Major Parameters


Model No.:OWPD250L-24-P38

Power Input:24VDC(18-32VDC)

Rated power:250W

Rated Flow rate :2800L/H @ H=16M

Max Flow:4800L/H

Max Lift Head:20M

---------------------------------------------------------------------------

Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution

Medium temperature: Working long hours guaranteed -40℃ to +85℃ (-40°F to + 185°F)

Outlet diameter: 38mm(1.5inch)

Speed regulation: No (optional)

Fault Feedback signal:No (optional)

IP Grade:IP67

Noise control:≤60dB

Service life:＞20000hours

Weight: 2200g


System pressure

-0.5-4 Bar ( 100℃ (212°F).

The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.

Temperature parameter

Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)

Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%

Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the service life)

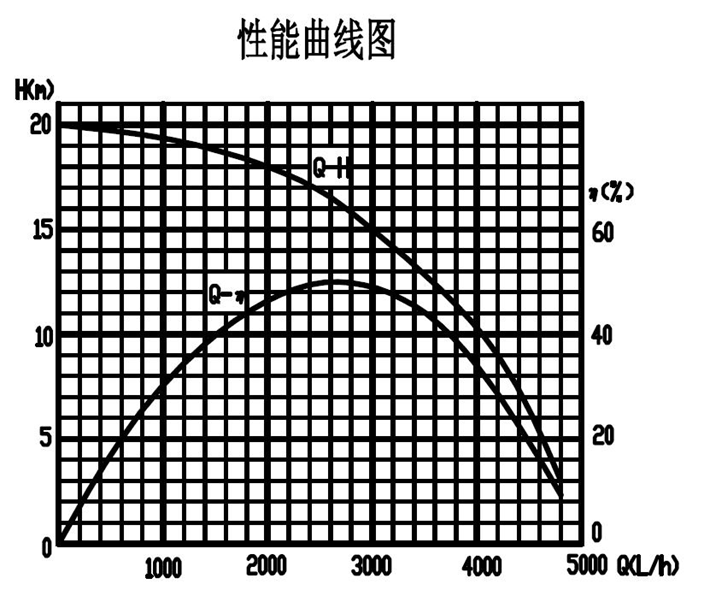

Performance Curve


High Efficiency 24V DC Electric Coolant Pump for Hybrid Bus and Engineering Vehicles with a 250W Rated Power


Pump Advantages

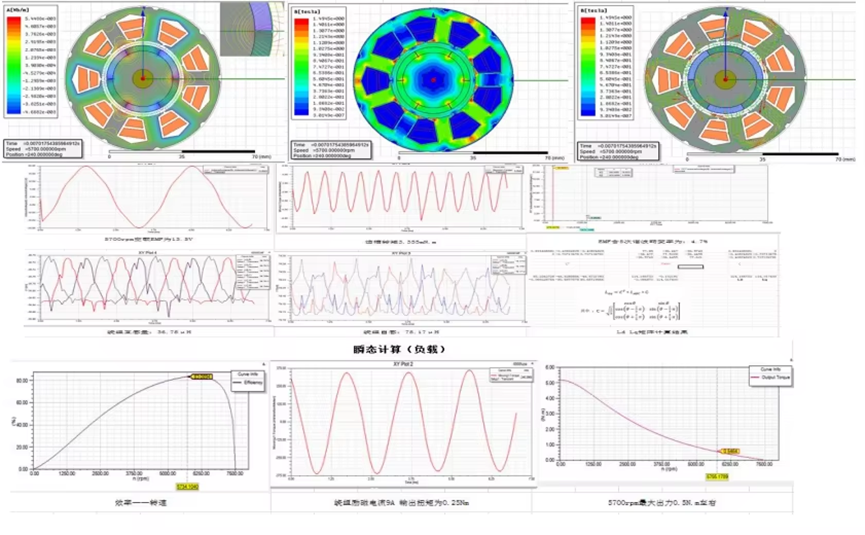

1. Professional electromagnetic theory design verification ,makes our pump motor 3-5% higher efficiency than other competitors.

High Efficiency 24V DC Electric Coolant Pump for Hybrid Bus and Engineering Vehicles with a 250W Rated Power

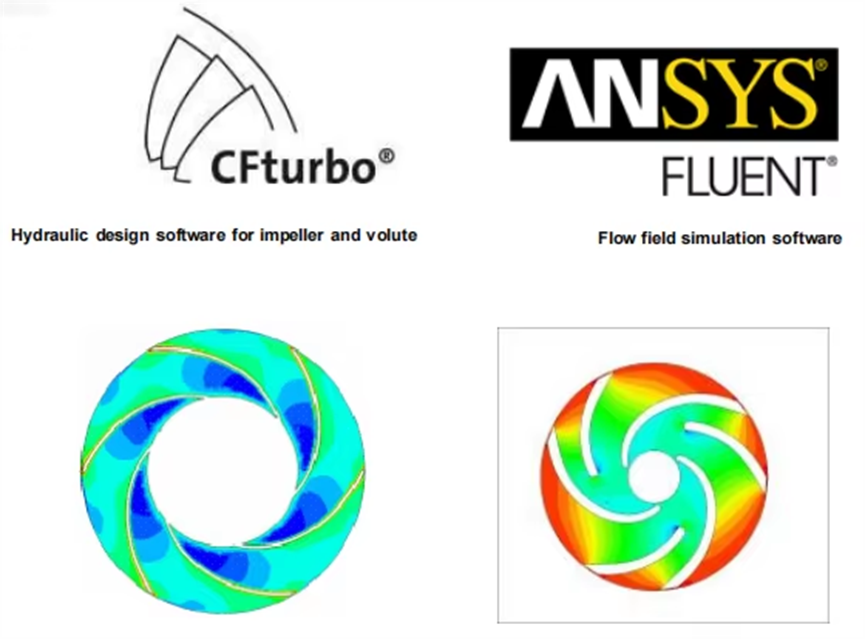

2. Simulation calculation of hydraulic design by professional software makes our impeller and volute reach to the best match for higher hydraulic efficiency than others

High Efficiency 24V DC Electric Coolant Pump for Hybrid Bus and Engineering Vehicles with a 250W Rated Power


3. Automotive grade electronic components makes our pump withstand extreme harsh operating environment


Our clients come from 36 countires with high reputation in their fields


High Efficiency 24V DC Electric Coolant Pump for Hybrid Bus and Engineering Vehicles with a 250W Rated Power

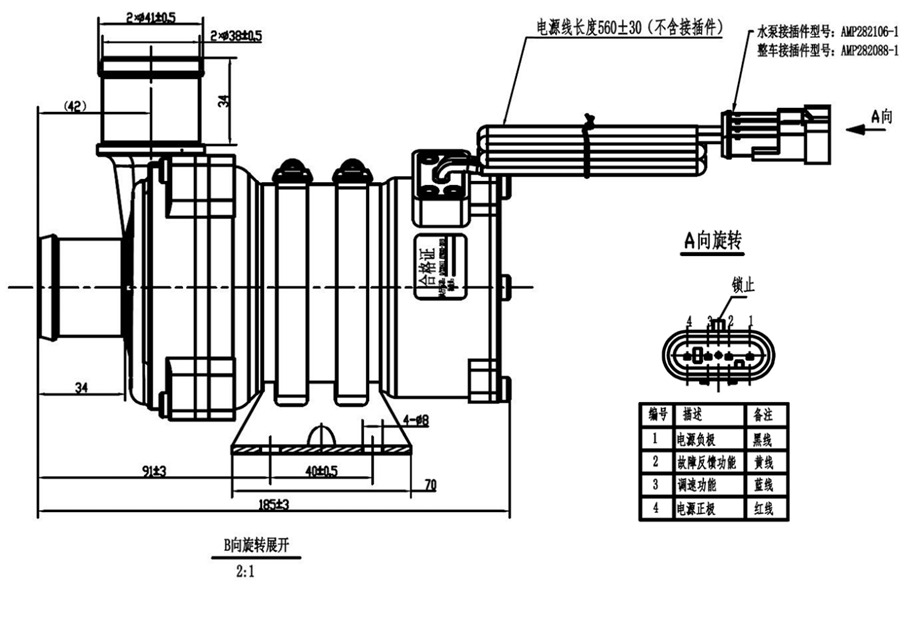

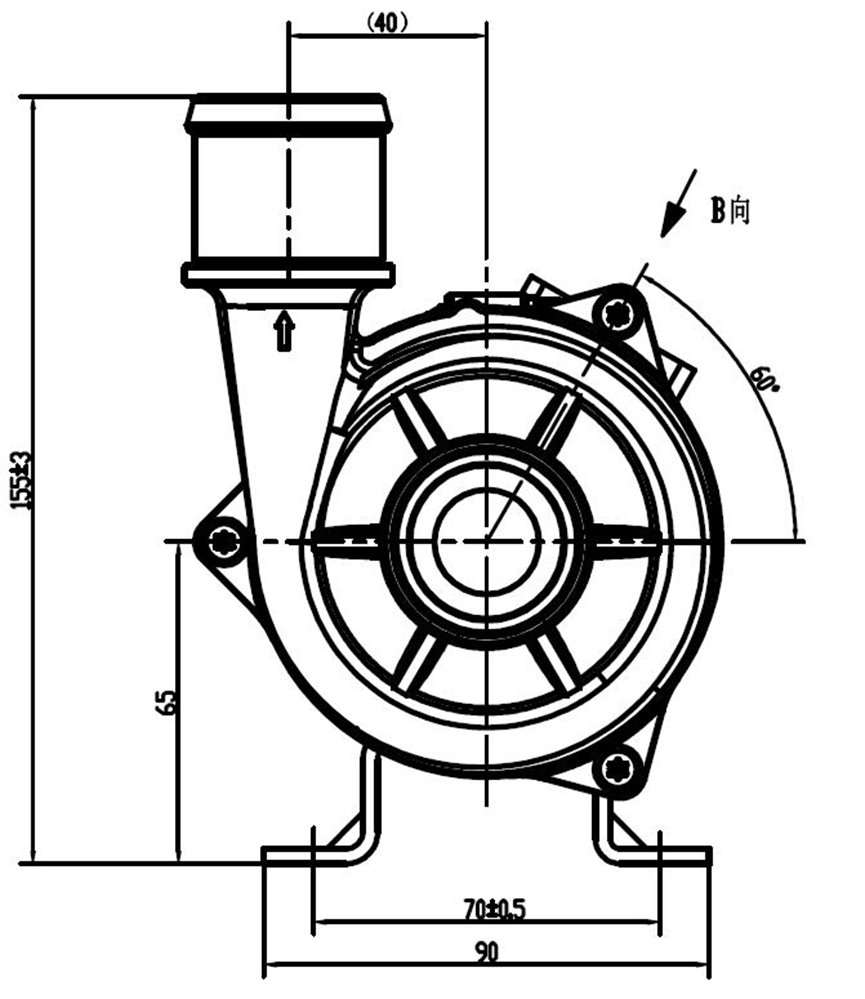

Pump overall size

High Efficiency 24V DC Electric Coolant Pump for Hybrid Bus and Engineering Vehicles with a 250W Rated Power

High Efficiency 24V DC Electric Coolant Pump for Hybrid Bus and Engineering Vehicles with a 250W Rated Power
